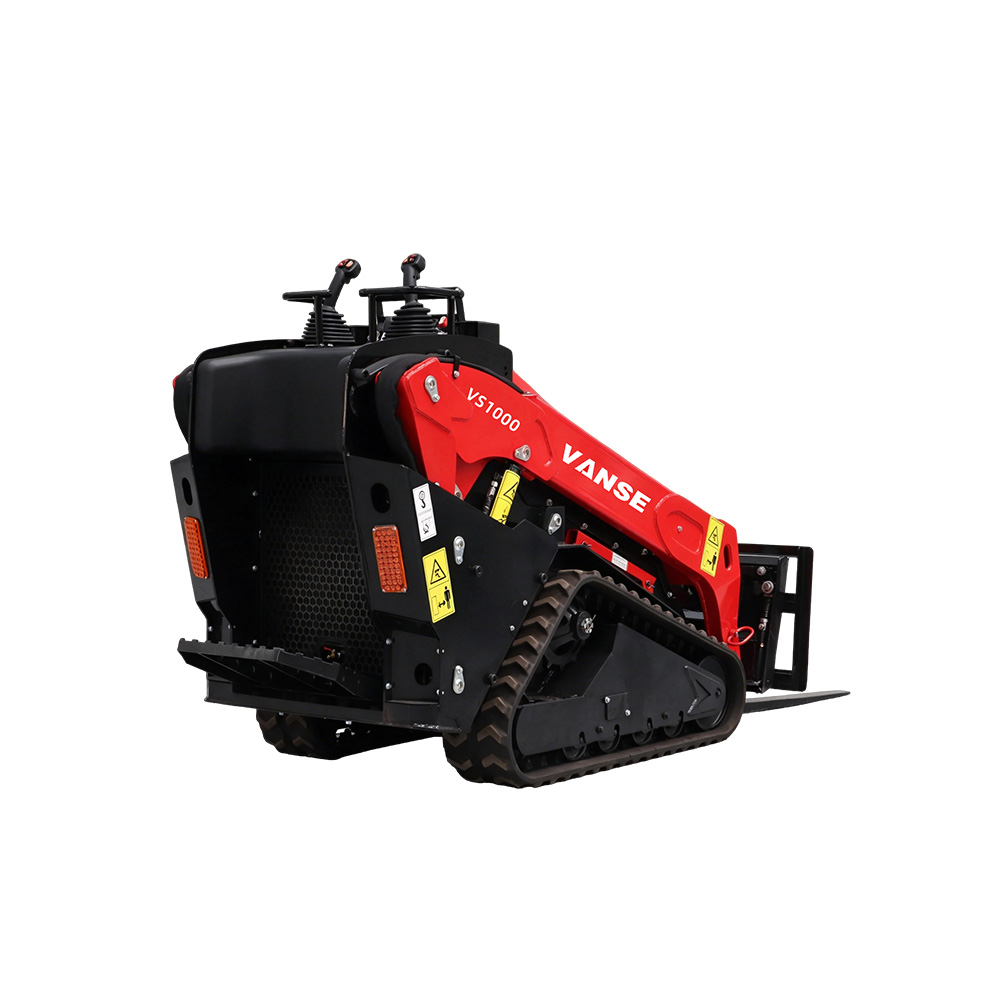

VS1000 Skid Steer Loader
1358 kg
Vehicle Weight
2691*960*1548mm
Overall Dimension
600 kg
Maximum Load Capacity
500 kg
Safe Load Capacity

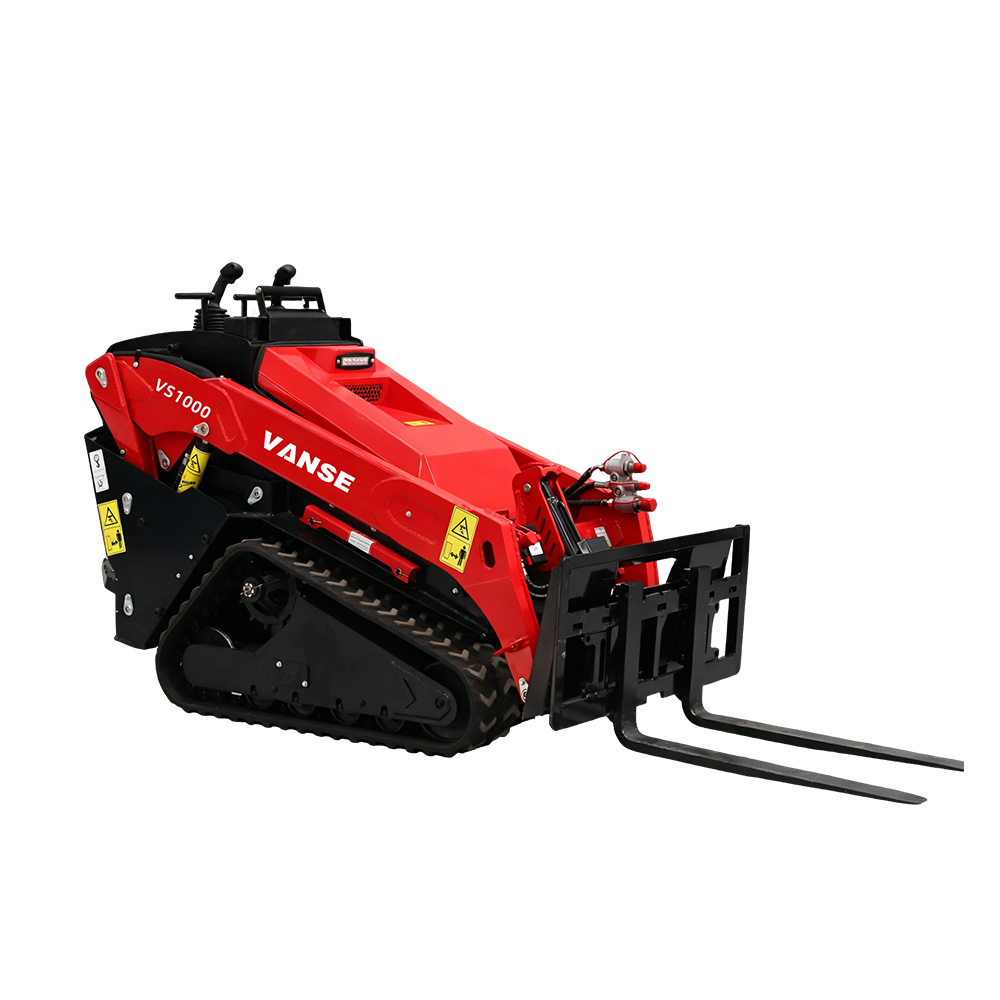

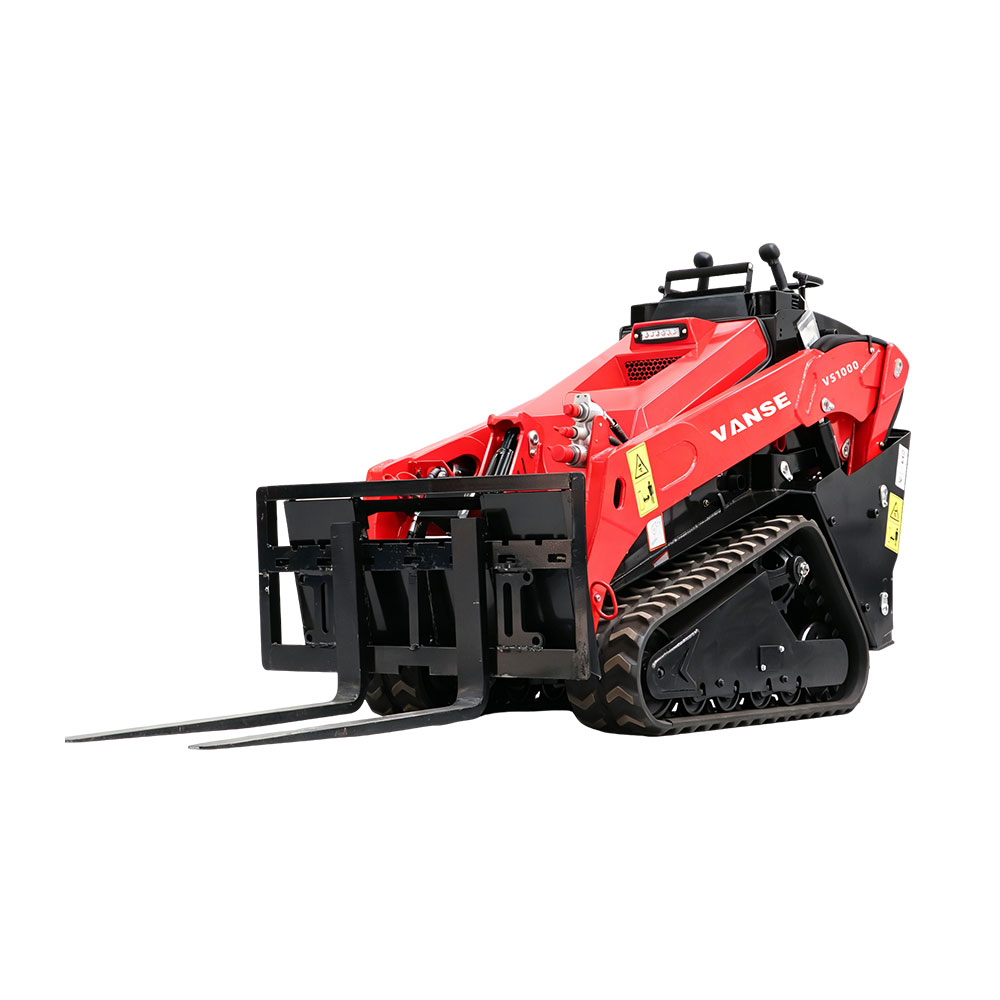

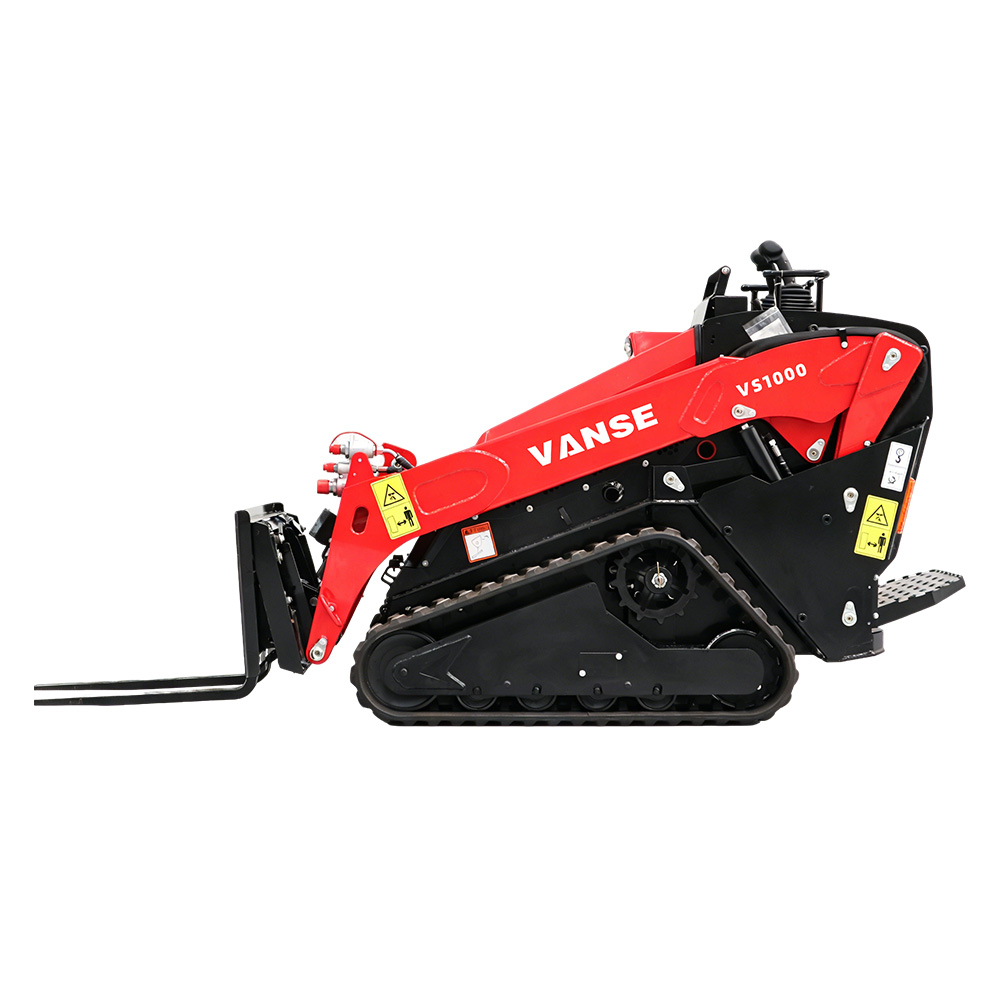

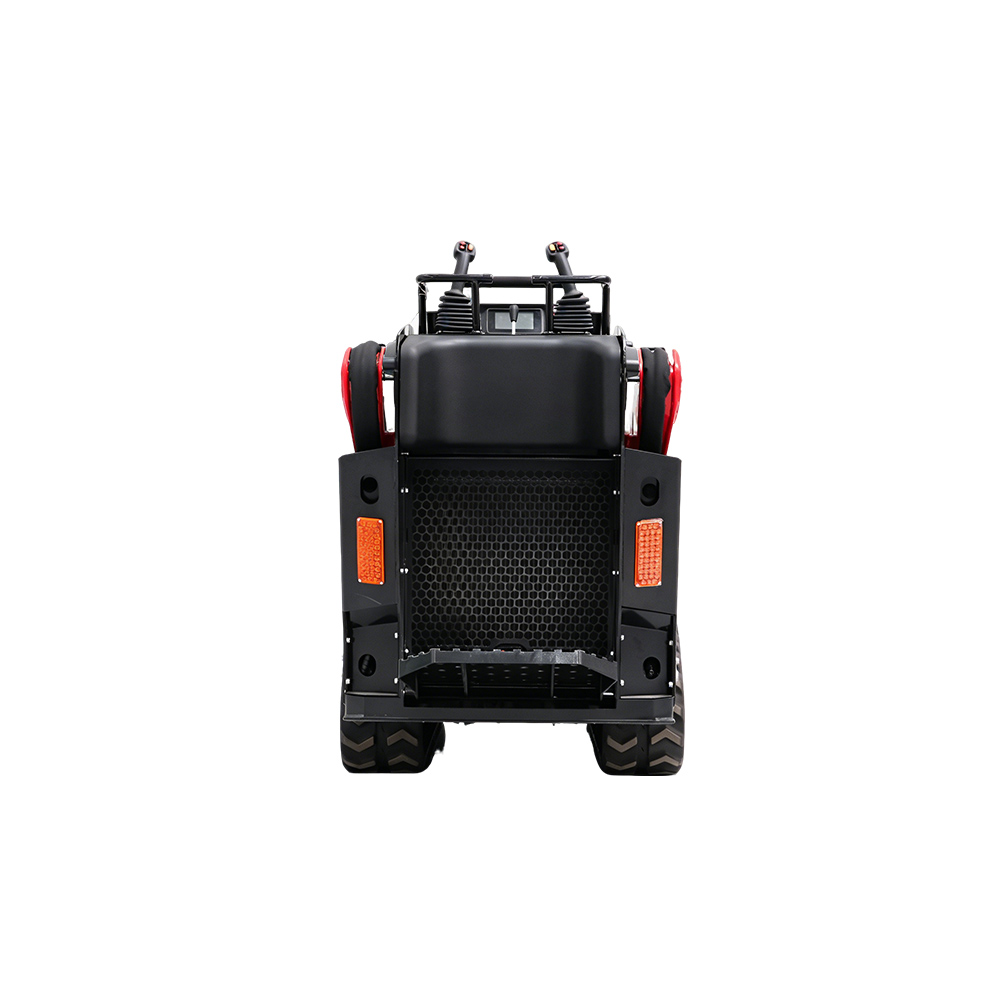

The VANSE VS1000 is a compact tracked skid steer loader built for construction, landscaping, farming, and material handling. With strong traction, stable performance, and a durable attachment system, it works efficiently on rough, muddy, and narrow job sites.
Share This Product
Ergonomic Seat
Armrest-equipped seat eases long-shift fatigue; side speakers improve comfort.

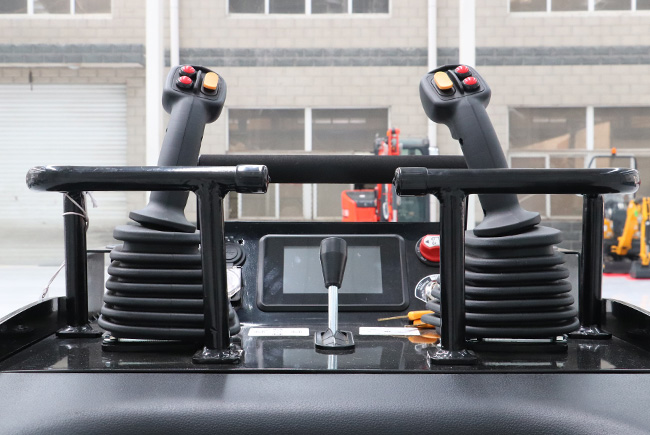

Control System
Multi-button layout supports precise control of travel, lifting and tilting for efficient operation.
Tracked Walking System
Deep-tread rubber tracks provide strong traction and low ground pressure. Alloy drive wheels are wear-resistant for muddy, sandy and gravel terrain.

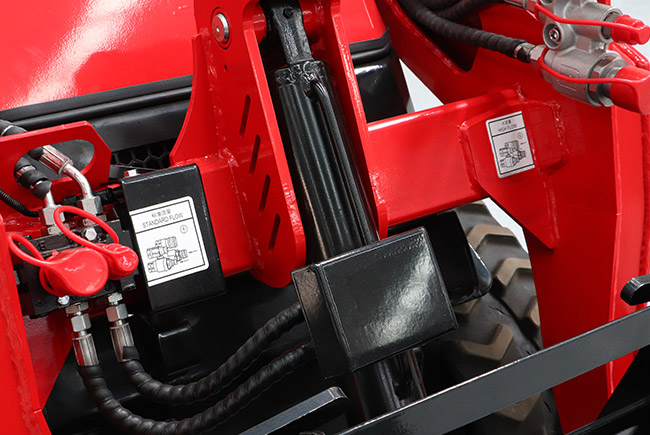

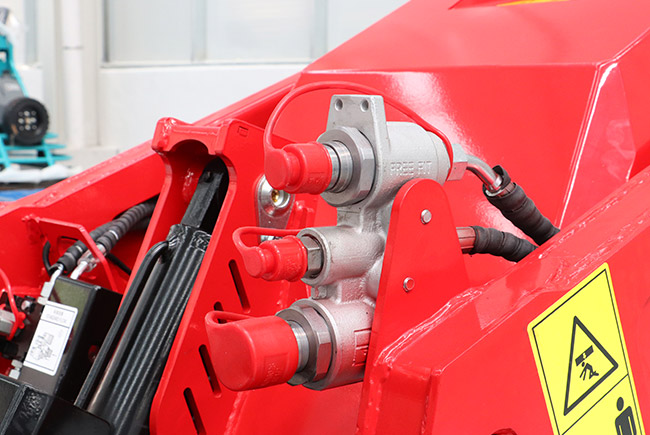

Hydraulic Boom Structure
Heavy-duty hydraulic boom offers great load capacity and stable performance.
Safety Net Cab
Object fall protection structure ensures safety, with excellent panoramic visibility.

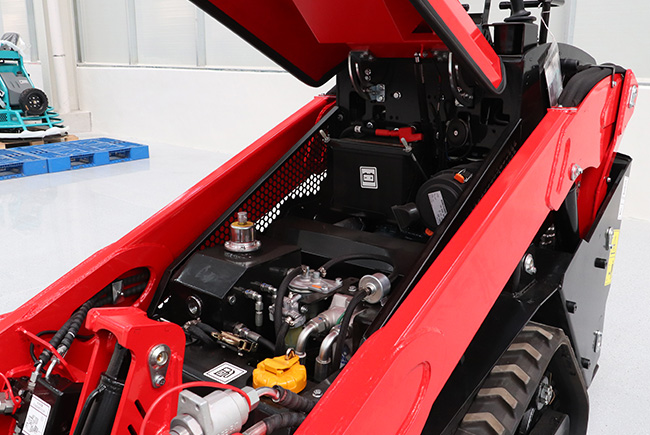

Engine Compartment
Hinged open hood facilitates convenient routine inspection and maintenance.
| Product Specifications | |
| Vehicle Weight | 1358 kg |
| Overall Dimension | 2691*960*1548mm |
| Maximum Load Capacity | 600 kg |
| Safe Load Capacity | 500 kg |
| Bucket Volume | 0.19 m³ |
| Working Speed | 0~4.5 km/h |
| Rated Pressure | 19.5 MPa |
| Wheelbase (A) | 1026 mm |
| Minimum Body Length (Pedal folded, bucket removed) (B) | 1981 mm |
| Maximum Body Length (C) | 2691 mm |
| Ground Clearance (D) | 200 mm |
| Hinge Height – Full Lift B (mm) | 3404 |
| Departure Angle (E) | 29 ° |
| Body Height (F) | 1548 mm |
| Height from Bucket Pin to Ground (G) | 169 mm |
| Bucket Lifting Angle (H) | 27 ° |
| Dumping Height (L) | 1522 mm |
| Max Height of Bucket Pin from Ground (M) | 2140 mm |
| Max Height of Bucket from Ground (N) | 2794 mm |
| Bucket Tilting Angle (Q) | 86 ° |
| Dumping Reach (O) | 498 mm |
| Bucket Dumping Angle (P) | 52 ° |
| Track Width (R) | 230 mm |
| Bucket Width (S) | 1235 mm |
| Frame Width (T) | 900 mm |
| Body Width (W) | 960 mm |
| Turning Radius (X) | 1556 mm |
| Engine | |
| Brand | Kubota |
| Model | D1105-E4B-CSL-1 |
| Type | Diesel, 3-cylinder, water-cooled |
| Output Power | 18.2 kw / 3000 rpm |
| Maximum Torque | 71.5 N·m |
| Displacement | 1226 CC |
| Fuel Consumption | 257 g/kw·h |
| Capacity | |
| Fuel Tank | 30 L |
| Oil Sump | 5.1 L |
| Hydraulic Tank | 30 L |
| Hydraulic System | |
| Travel Pump Pressure | 20 MPa |
| Working Pump Pressure | 16 MPa |
| Working Pump Flow | 48 L/min |
