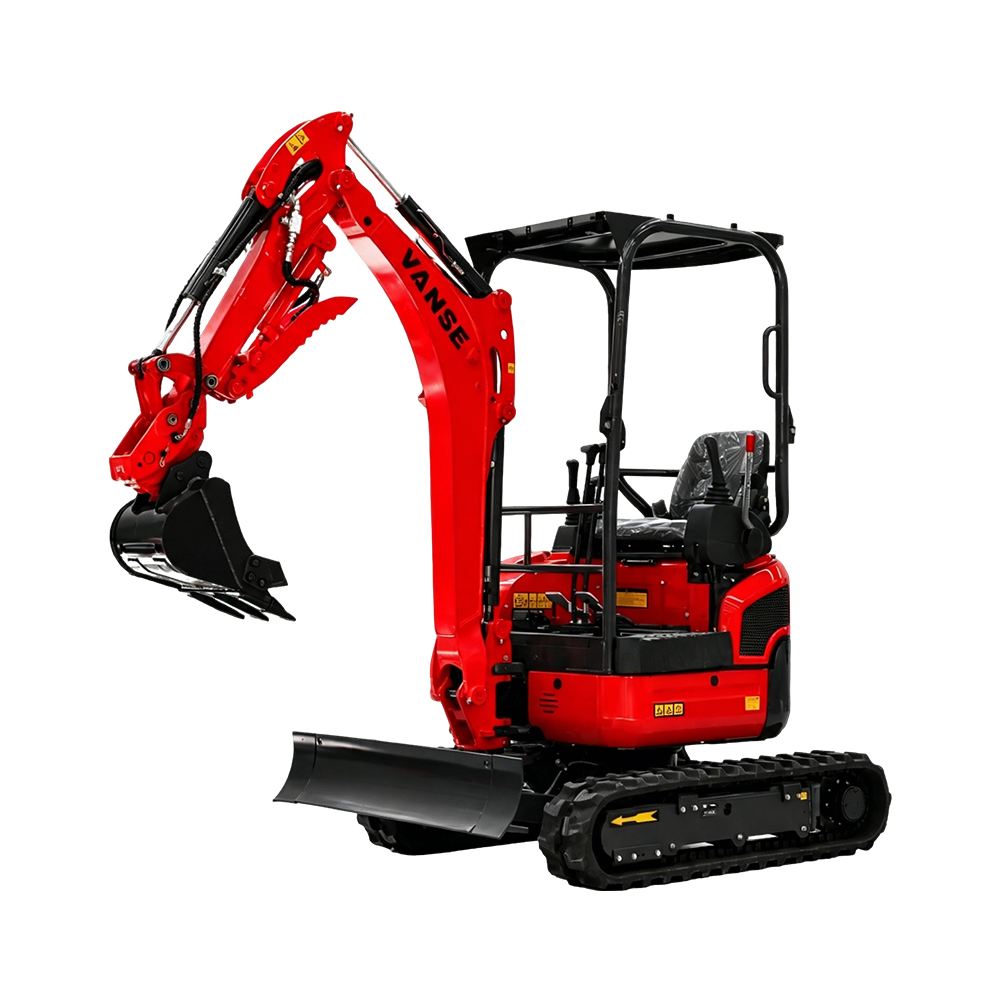

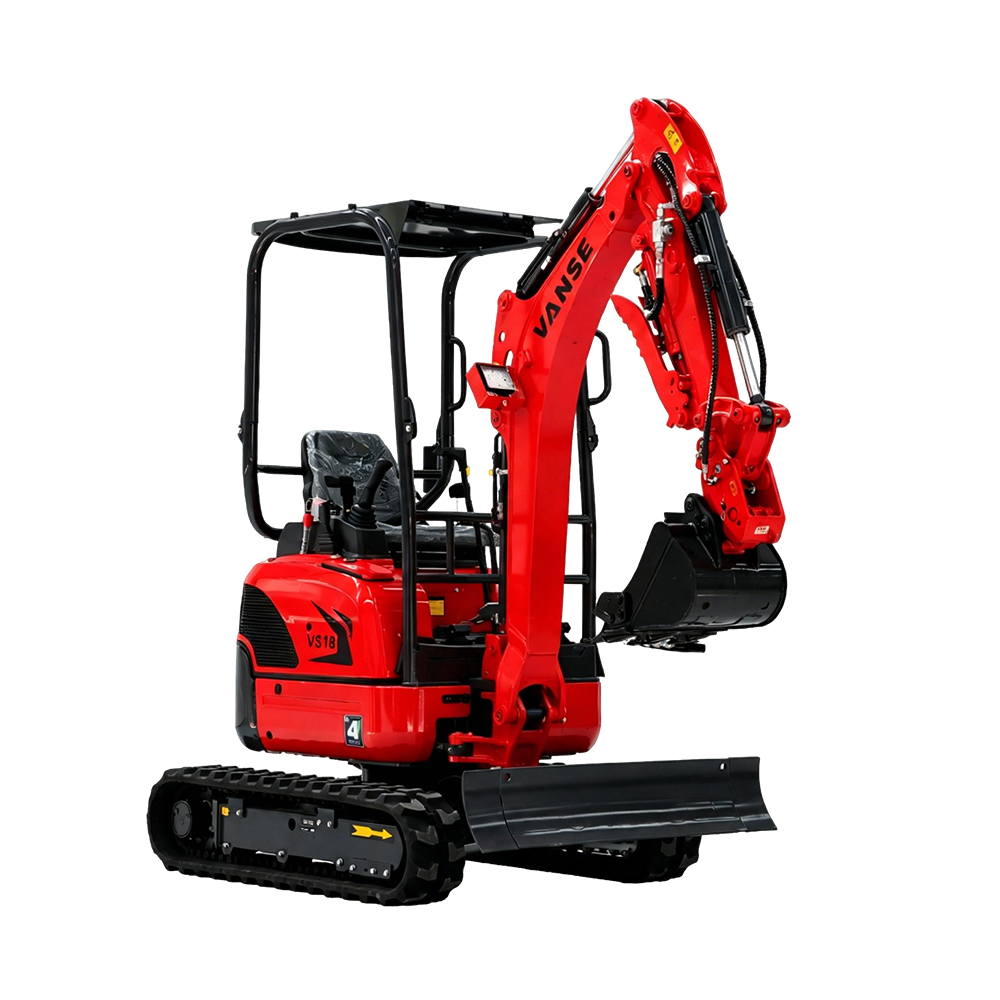

VSC-18 Mini Excavator for Construction
0.04
Dou Rong (m ³)
1744
Total weight (kg)
16
Maximum excavation force (kN)
10.5
Rotation speed (r/min)

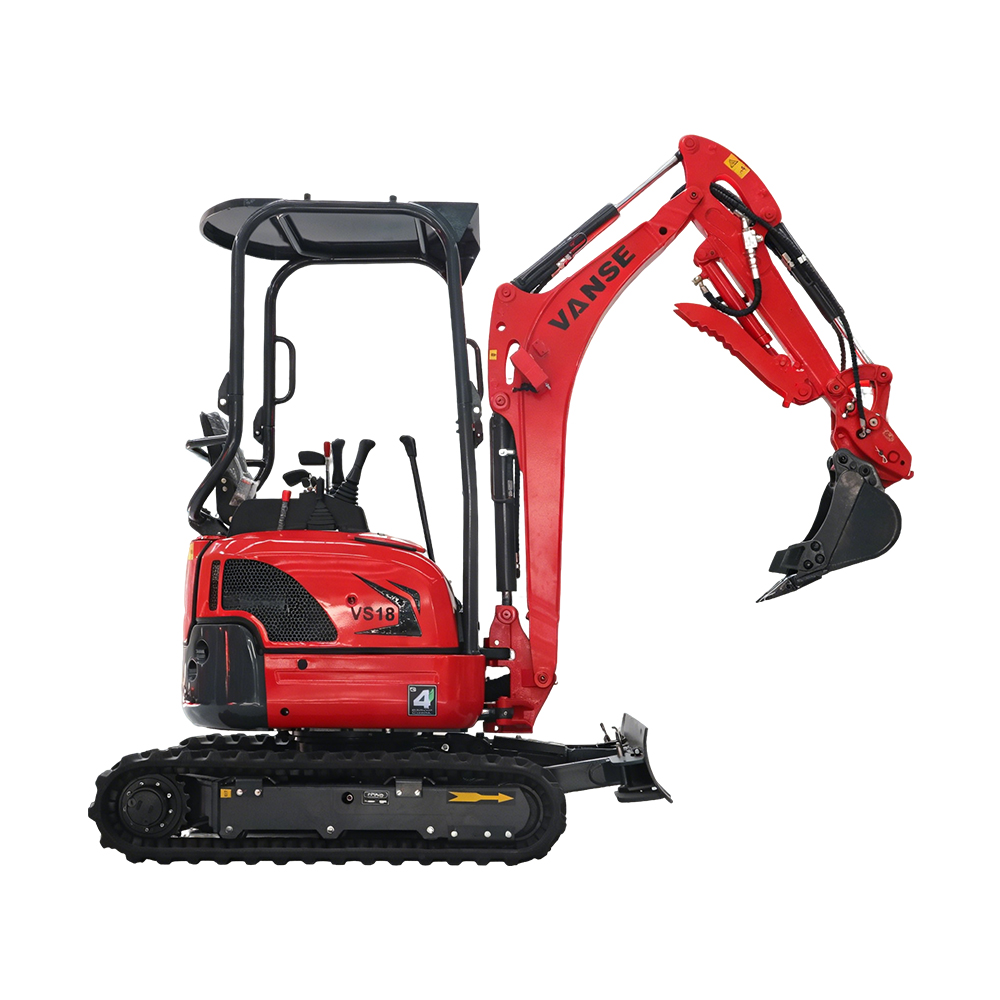

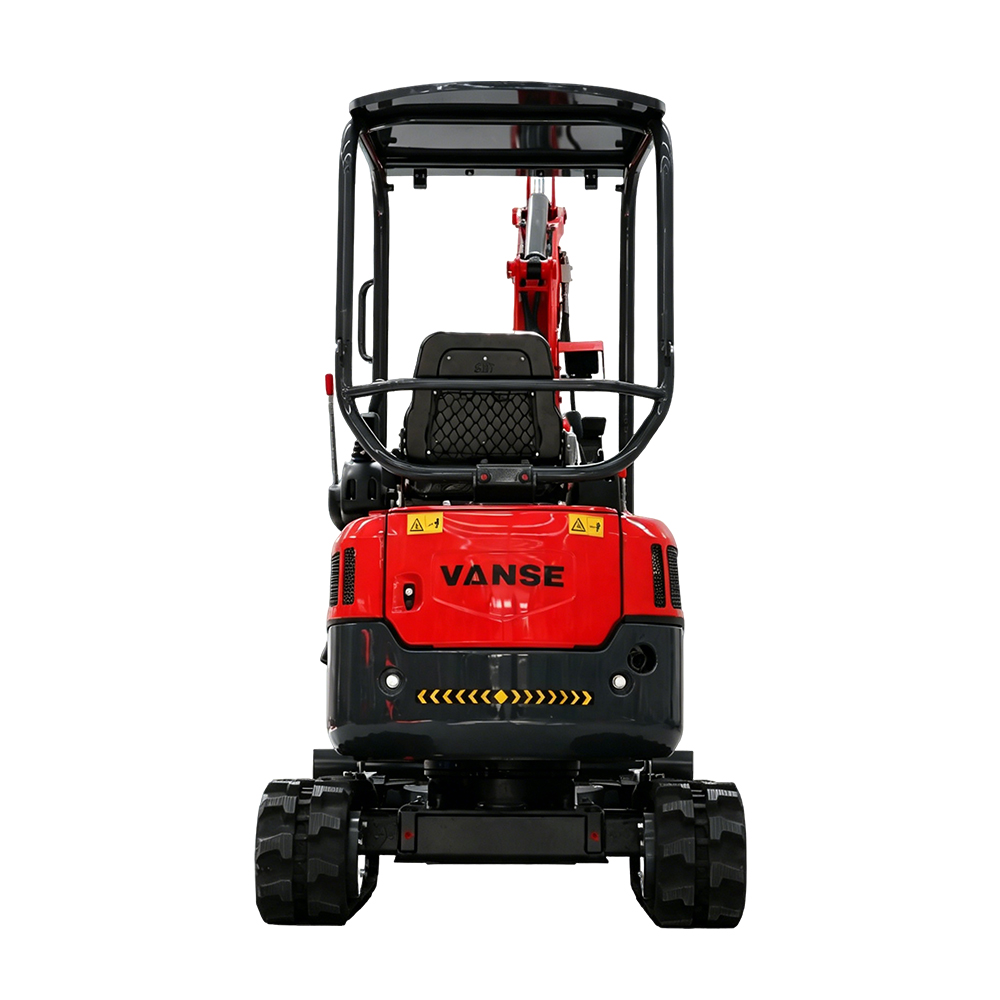

The VANSE VSC-18 is a compact mini excavator built for construction, landscaping, farming, and utility work. It offers strong digging power, stable rubber tracks, flexible operation, and reliable hydraulic performance.
Share This Product
Fully Enclosed Luxury Cab
Fully enclosed, sound-insulated and dustproof cabin fitted with ergonomic seat and storage space. It delivers superior comfort to lessen operator fatigue during long shifts, supporting reliable operation under tough working environments.

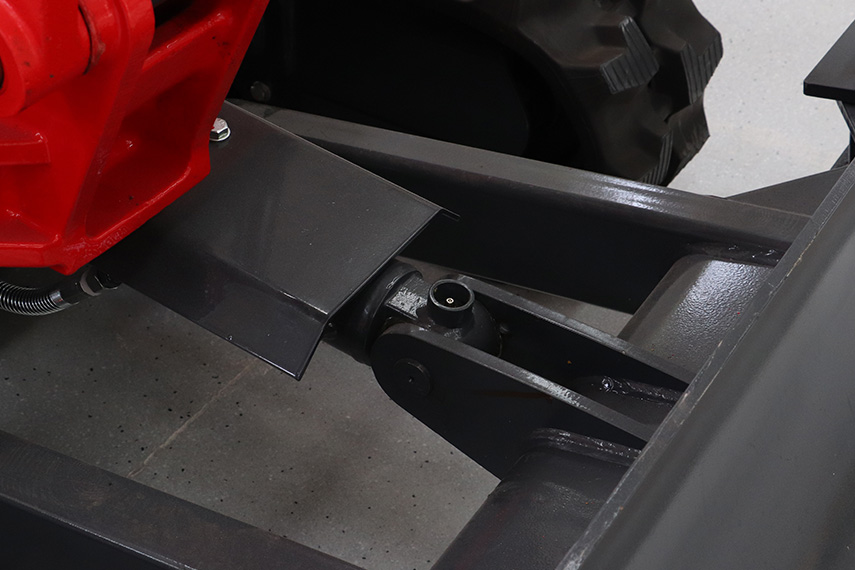

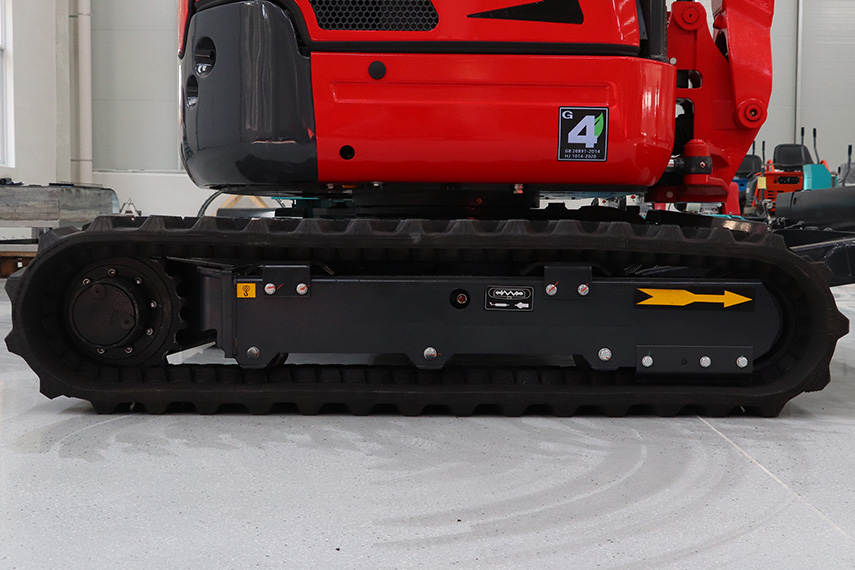

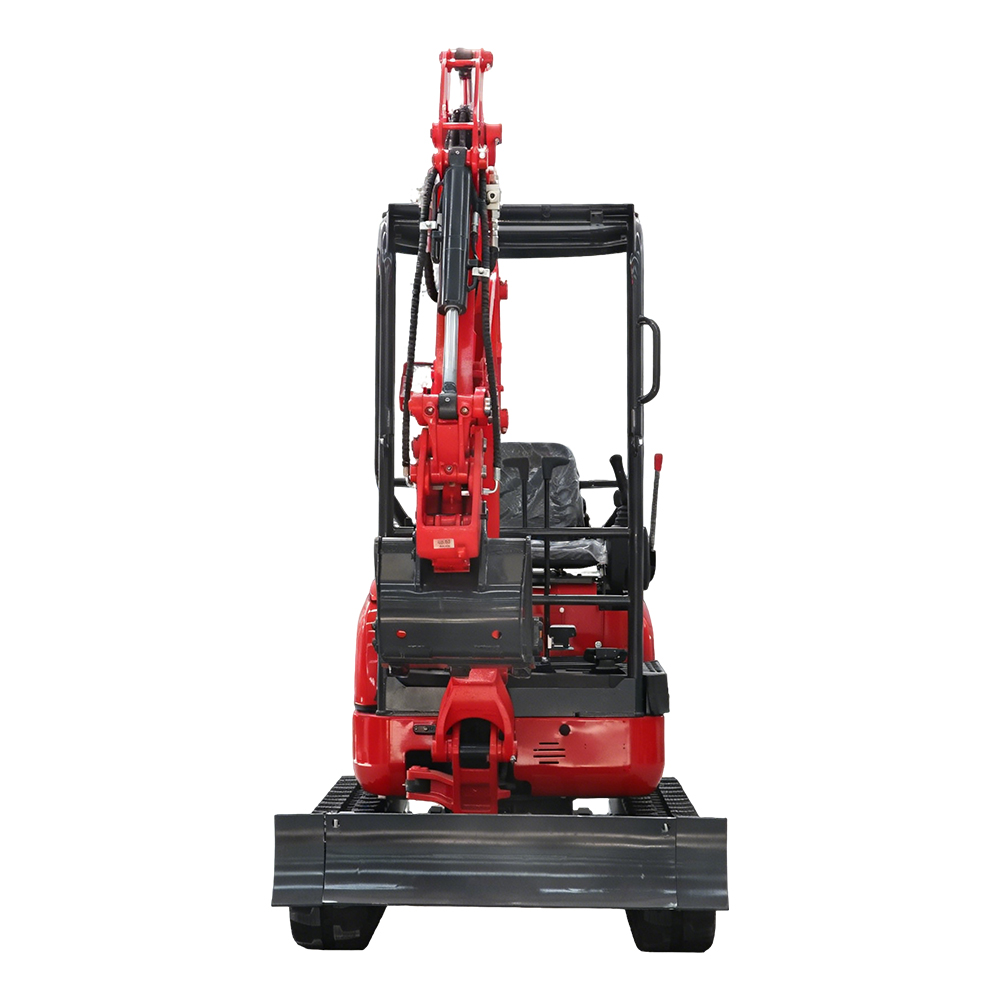

Reinforced Tracks and Bulldozer Blade
Heavy-duty rubber tracks deliver steady traction without damaging pavement. The wide dozer blade rapidly levels terrain, stabilizing the machine and supporting consistent heavy-load work.

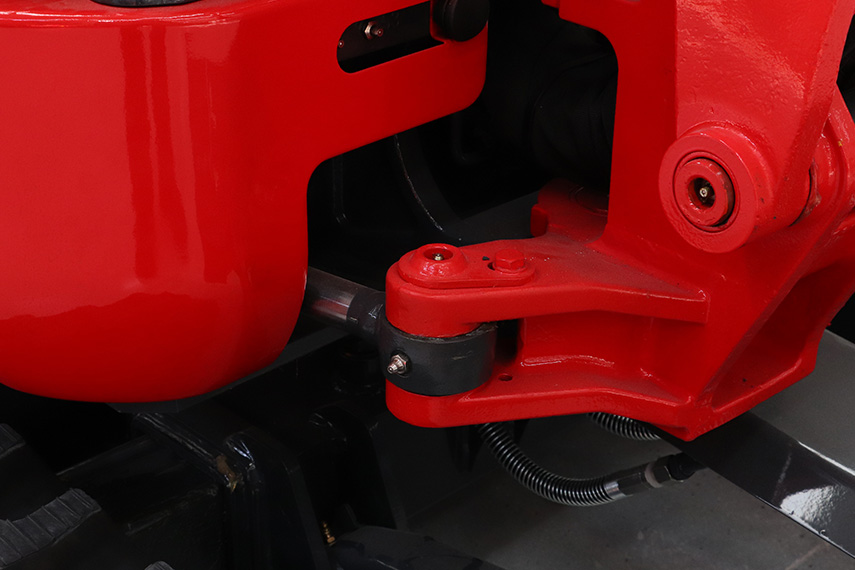

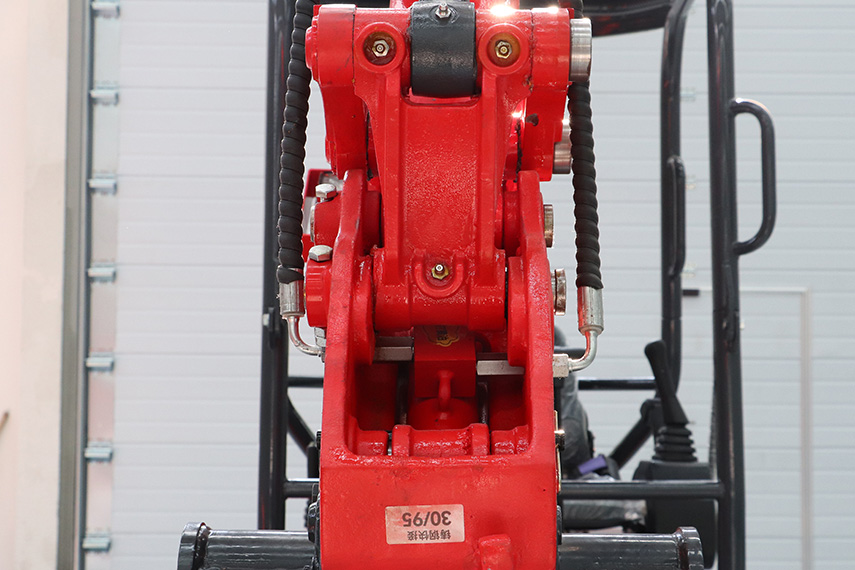

High-Strength Hydraulic Arm and Quick-Change Gripper
Thickened steel hydraulic arm resists bending and torsion. Integrated quick coupler enables fast attachment swapping, supporting digging, grabbing, crushing and other multi-scenario operations.
Multi-Pedal Precision Control Area
Well-organized multi-pedal layout offers light, sensitive response. It achieves precise control over travel, steering and movements, boosting working efficiency and operational safety.

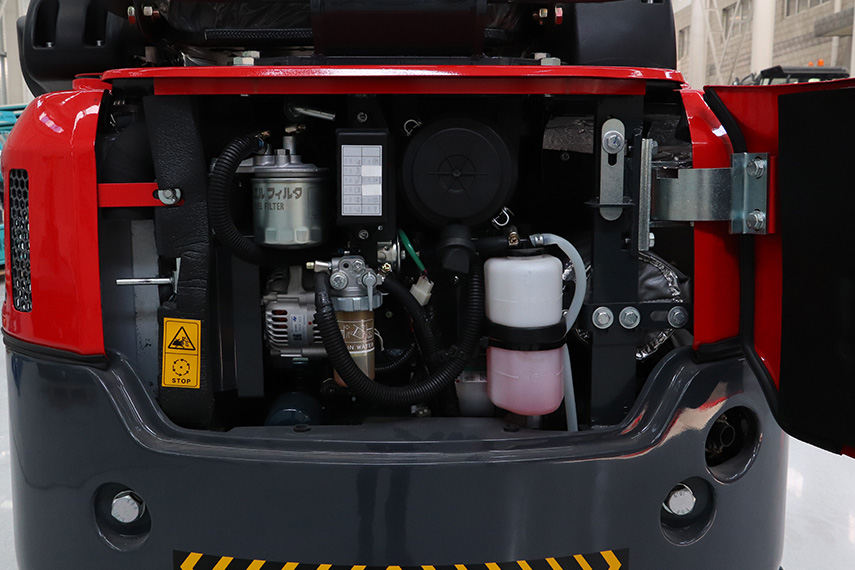

Integrated Power Compartment
Neatly arranged integrated power compartment. Optimized layout facilitates routine inspection, maintenance and quick component servicing to reduce downtime.

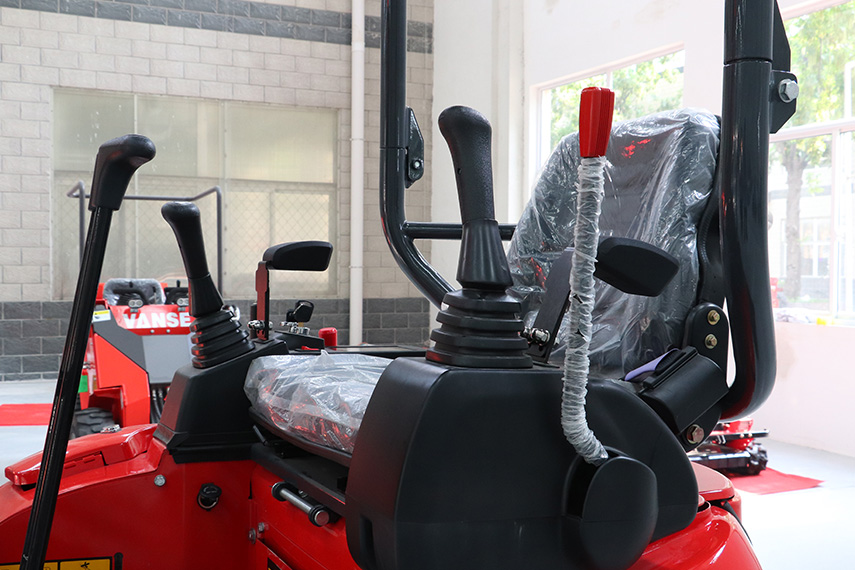

Integrated Control Console
Logically arranged control console with clearly identifiable functions. User-friendly for new operators, enabling convenient, efficient manipulation.
| Performance Parameter | |
| Dou Rong (m ³) | 0.04 |
| Total weight (kg) | 1744 |
| Maximum excavation force (kN) | 16 |
| Rotation speed (r/min) | 10.5 |
| Walking speed (low/high) (km/h) | 2.3/4 |
| Maximum excavation radius (mm) | 3850 |
| Maximum excavation depth (mm) | 2200 |
| Maximum excavation height (mm) | 3075 |
| Maximum unloading height (mm) | 2260 |
| Arm length (mm) | 1828 |
| Maximumexcavation force(kN) | 3570 |
| Outer width (mm) | 2295 |
| Tail turning radius (mm) | 630 |
| Height of upper assembly above ground (mm) | 430 |
| Wheelbase (mm) | 1240 |
| Total length of track (mm) | 1590 |
| Track gauge/wheelbase (mm) | 760/1050 |
| Track shoe width (mm) | 230 |
| Minimum ground clearance (mm) | 30°(58%) |
| Engine model | 32 kPa |
| Dimensions | |
| Engine Type | In line, water-cooled four stroke |
| Engine power (kW) | 11.2 |
| Rated speed (r/min) | 2400 |
| Displacement (ml) | 993 |
| emission standard | GB 20891-2014(National IV) |
| Maximum torque (N.m)/speed (r/min) | 52.1N.m/1800 |
| Number of supporting wheels (unilateral) | 3 |
| Walking brake type | Wet type |
| Rotation type | Hydraulic driven single row ball bearing with internal teeth |
| Rotary braking type | hydraulic |
| Hydraulic control type | Load sensitive control system |
| Hydraulic type | Pilot proportional control |
| Maximum flow rate (L/min) | 46 |
| Fuel filling amount (L) | 19 |
| Hydraulic oil filling amount (L) | 23 |
| Engine fuel quantity (L) | 3.3 |
| Oil filling amount of walking reducer (L) | 0.33 |
