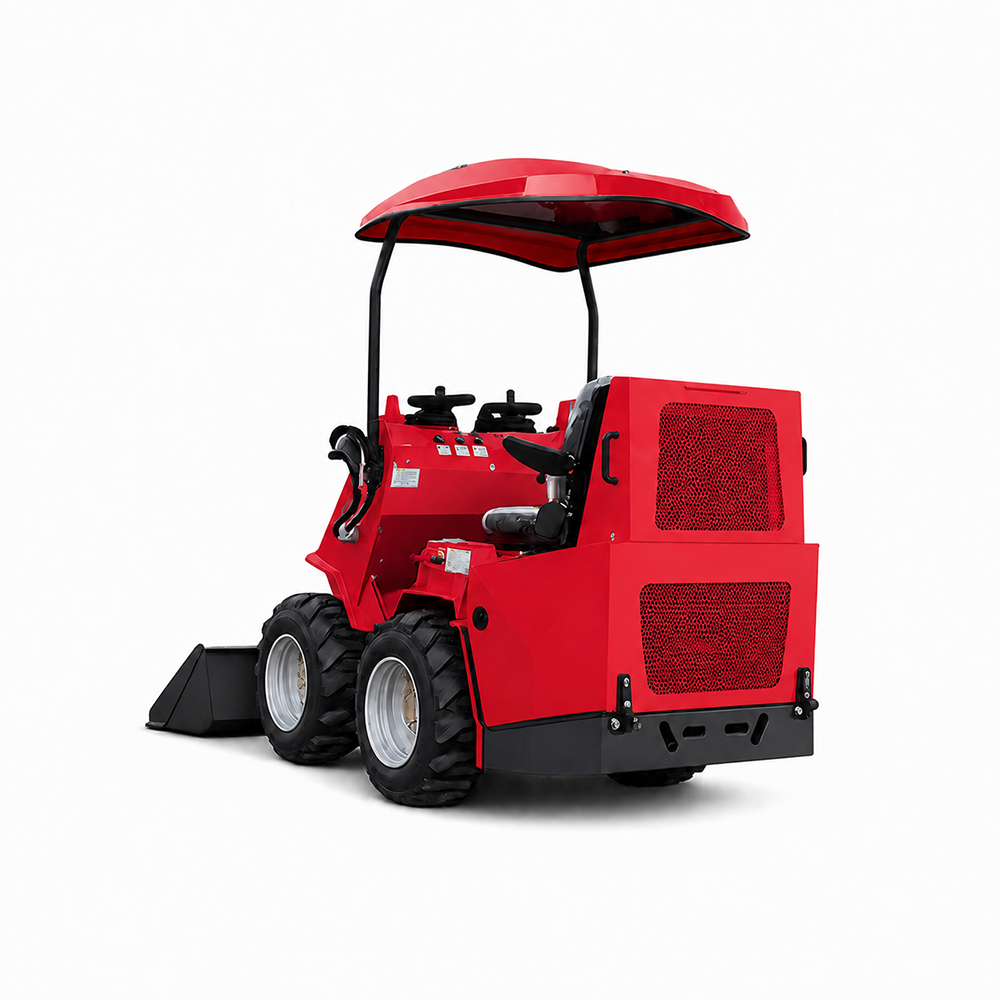

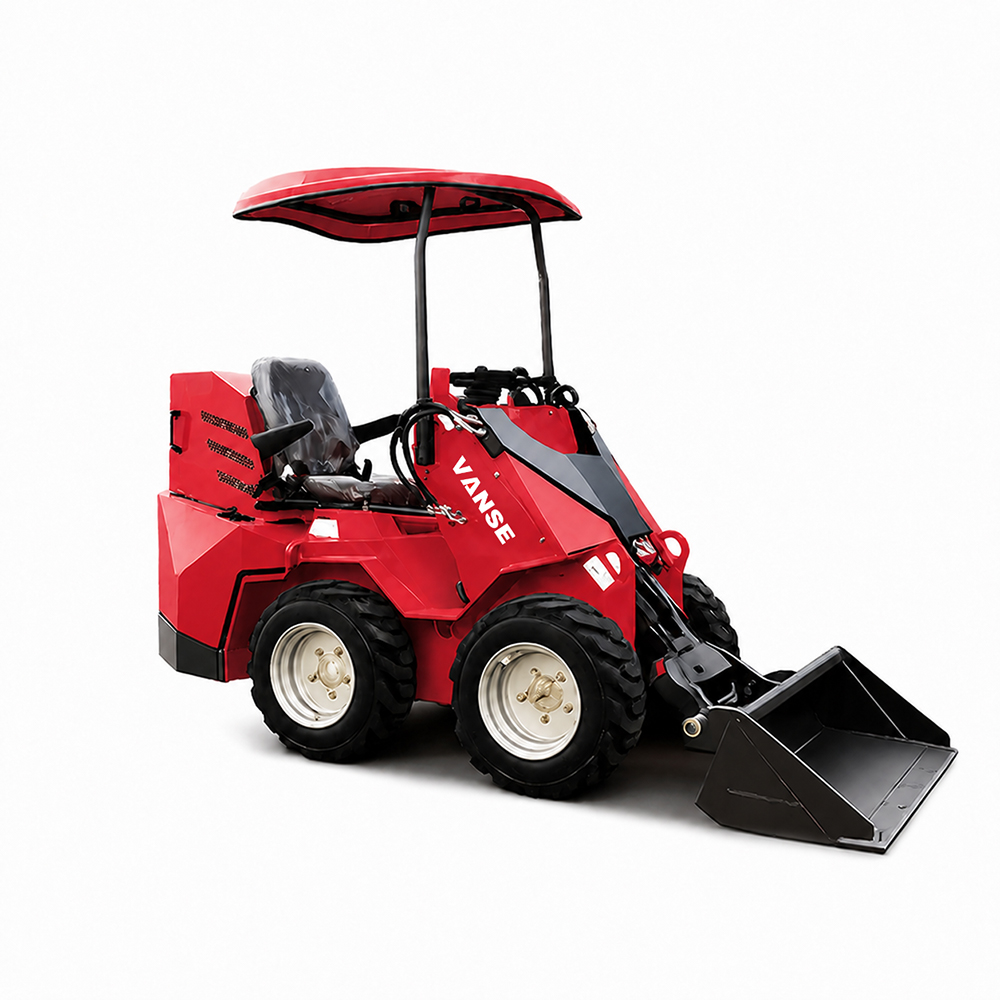

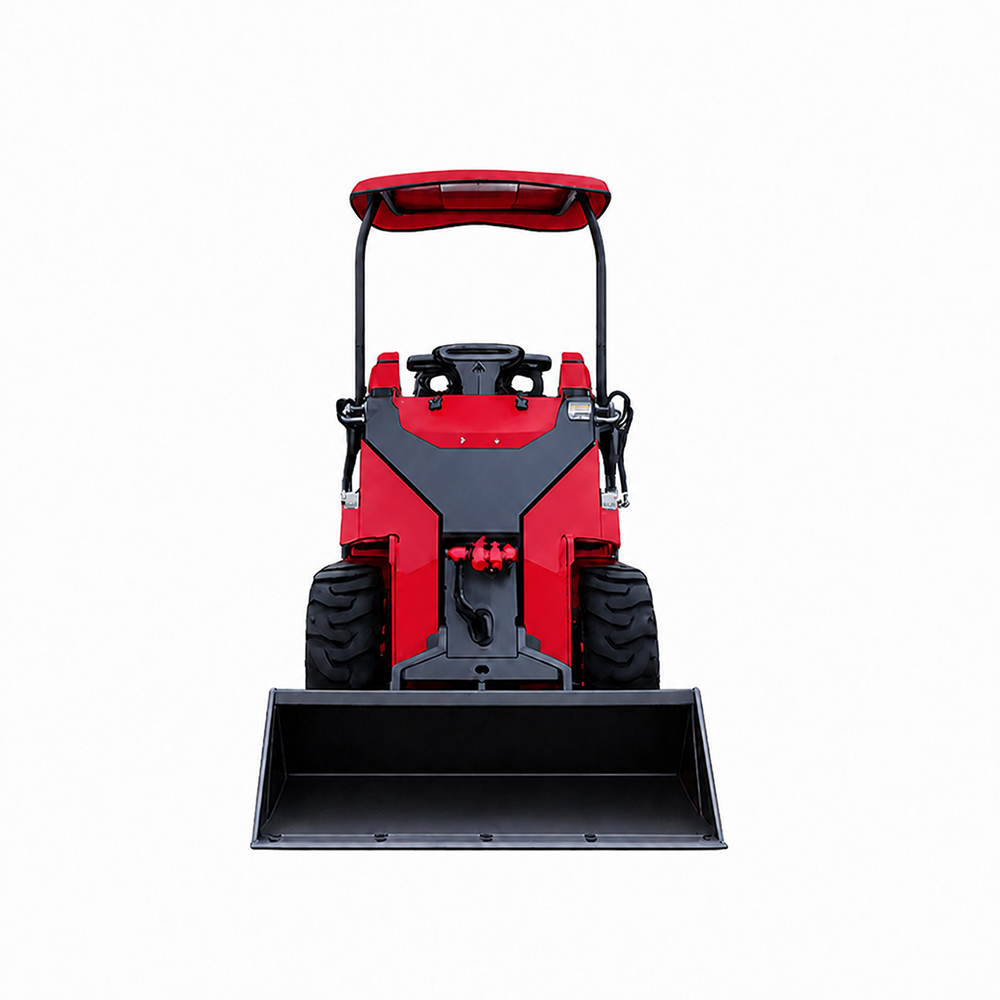

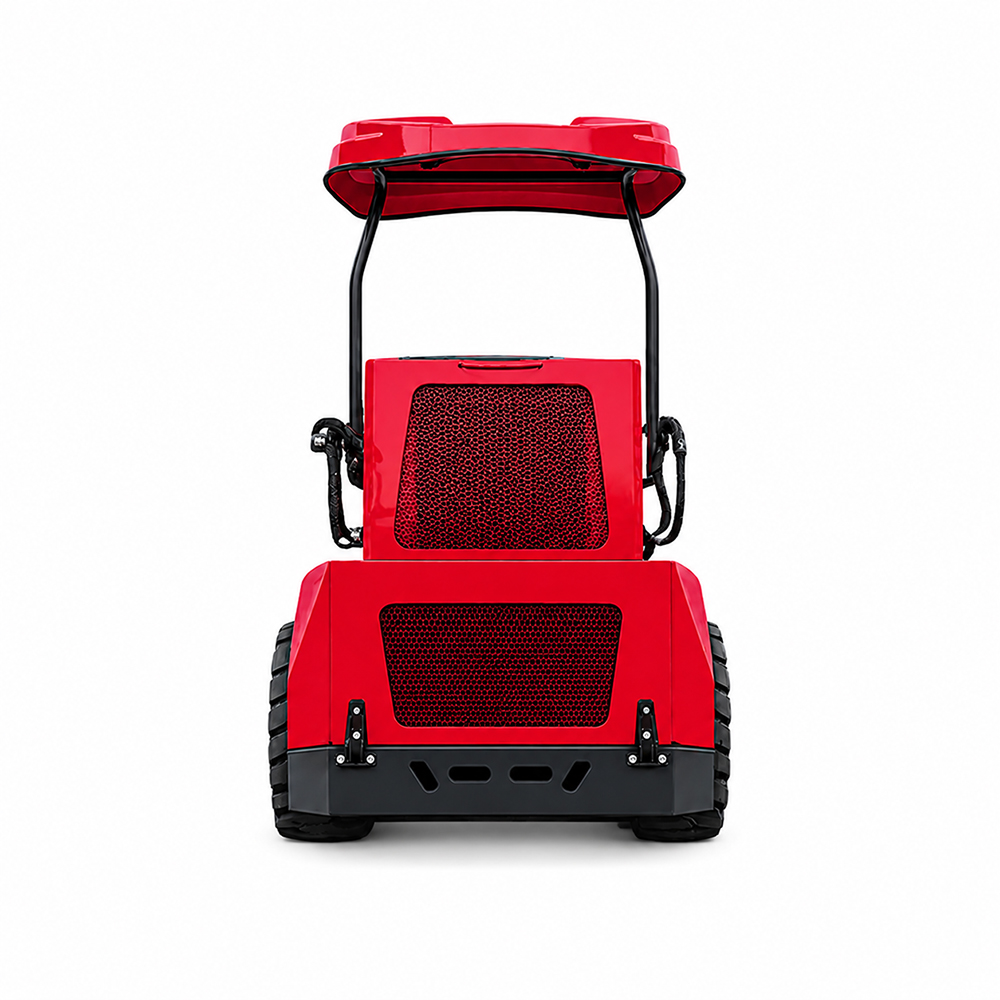

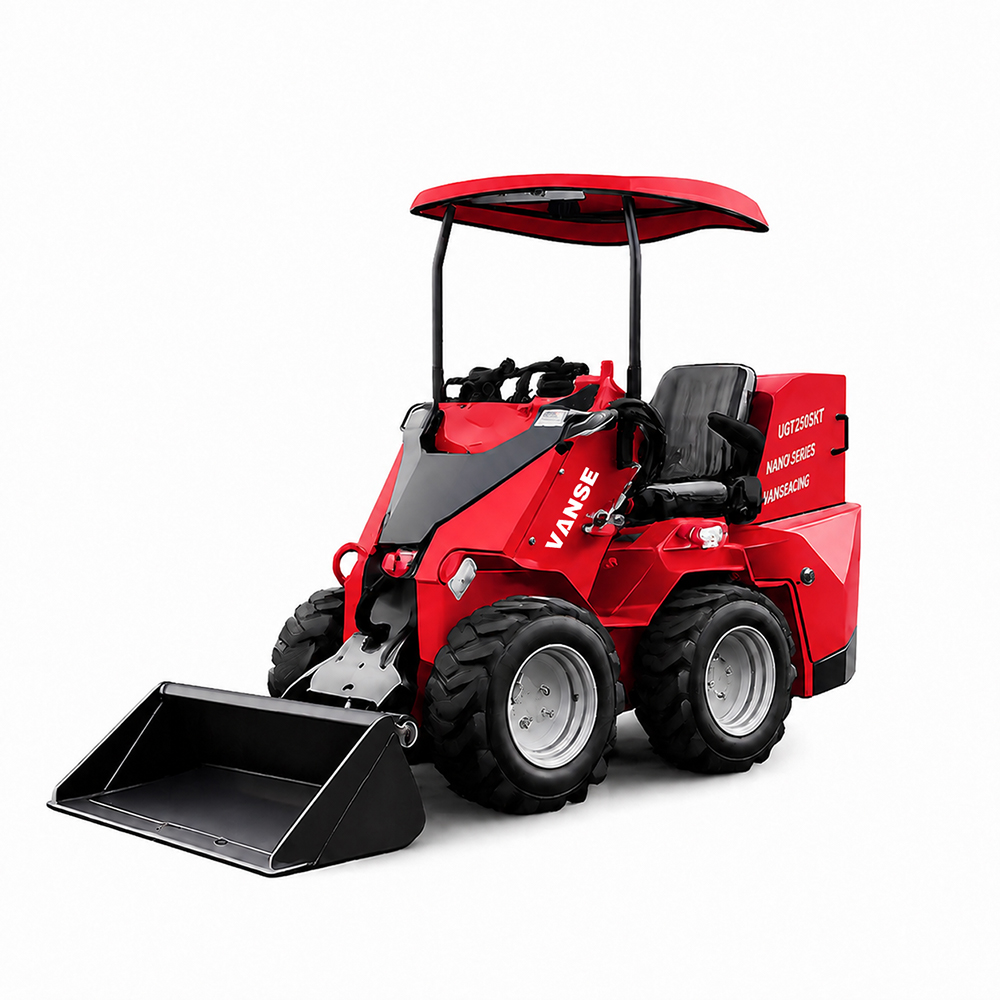

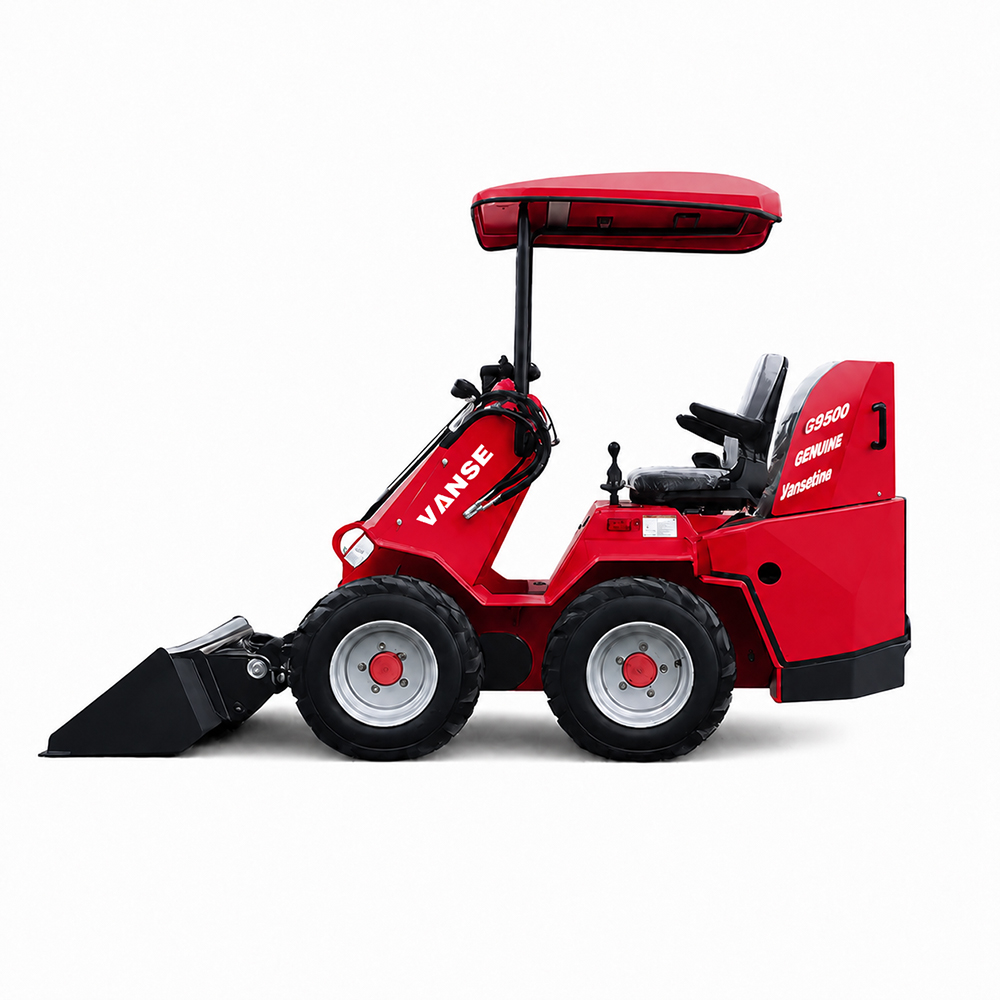

VS480Z Skid Steer Loader
350 kg
Rated Loading Capacity
0.15 m³
Bucket Capacity
800 kg
Maximum Lifting Force
23 HP
Engine Power
Compact yet powerful, this skid steer loader combines full hydraulic drive with 360° steering, allowing agile operation in tight spaces. Quick attachment changes make it ideal for municipal work, small-scale construction, farm tasks, and multi-purpose site operations.
Share This Product

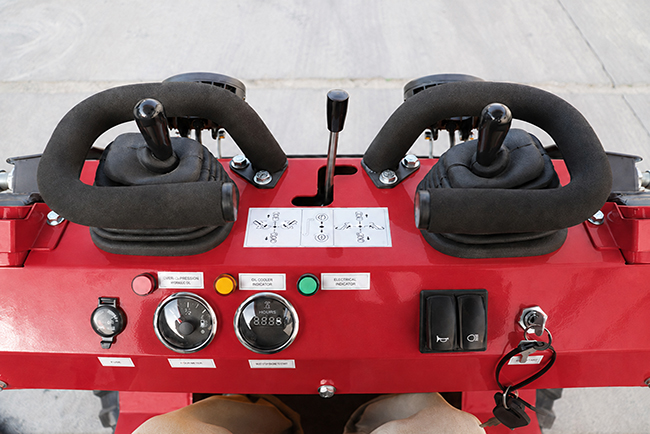

Control Operation Console
This integrated hydraulic control console is equipped with precise joysticks, pressure gauges and function switches, delivering flexible & accurate operation for loading, lifting and walking actions; it realizes intuitive equipment status monitoring and efficient multi-functional control.

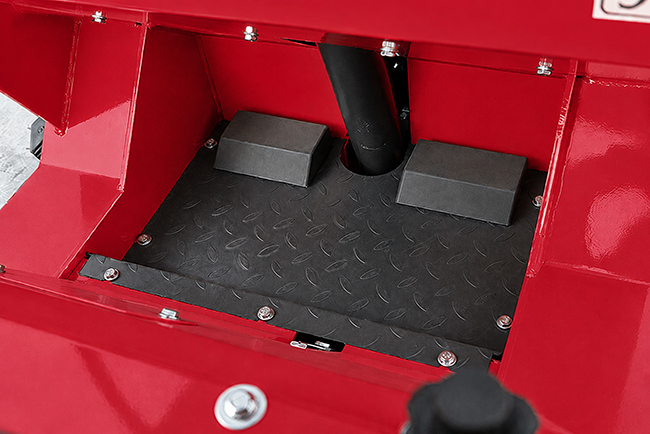

Anti-Slip Pedal Platform
Anti-slip diamond plate pedal platform provides stable footing for operators; anti-slip rubber blocks effectively prevent slippage, improving operational safety and stability during working.

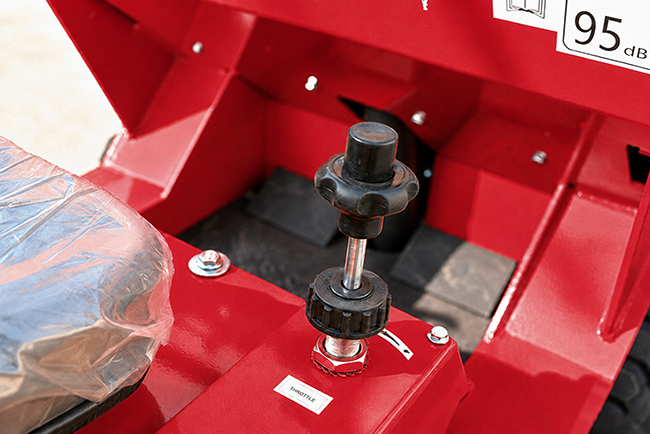

Adjustable Throttle Knob
Adjustable throttle knob allows stepless speed regulation of engine output; it realizes flexible power control and stable operation under different working conditions.

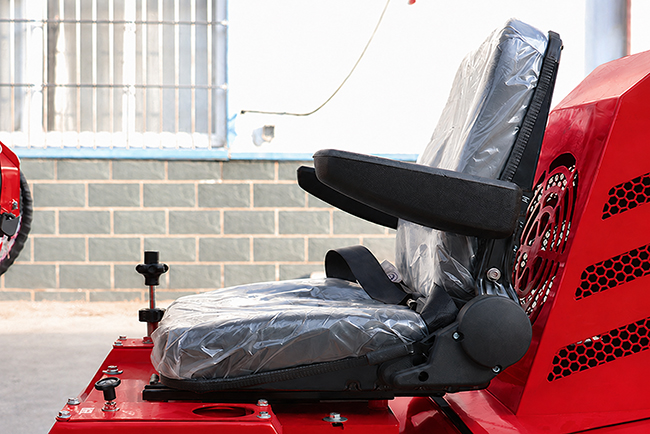

Ergonomic Operator Seat
Ergonomic seat with armrests and safety belt reduces operation fatigue, adapting to long-time continuous working conditions.

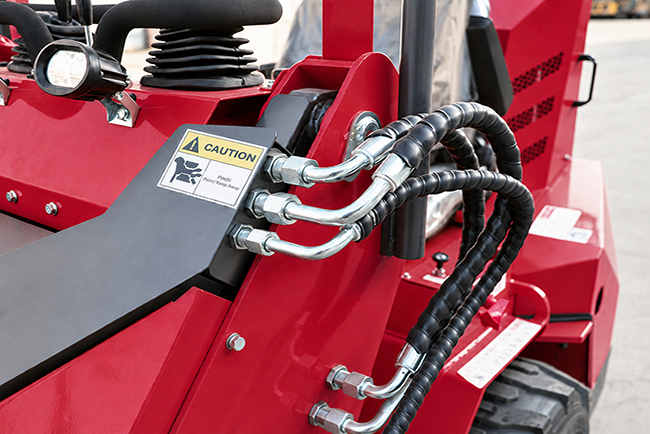

High-Pressure Hydraulic Pipeline System
High-pressure hydraulic oil pipes with protective sleeves deliver stable hydraulic power, ensuring efficient and reliable power transmission for working attachments.

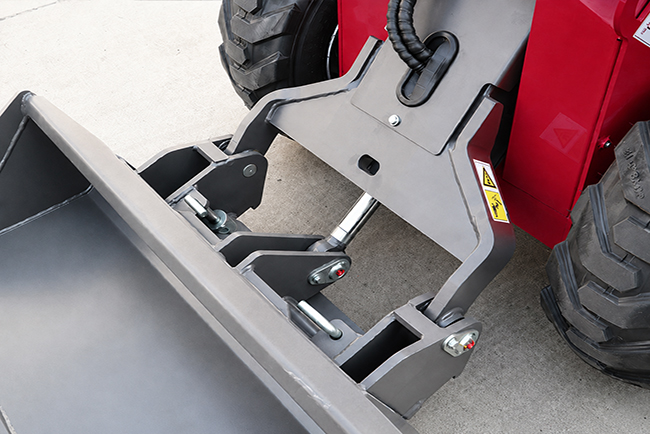

Quick-Coupling Attachment Connecting Frame
Quick-coupling hydraulic connecting frame realizes fast switch of working attachments, enabling precise and stable control of bucket lifting, dumping and rotation movements.
VS480Z Skid Steer Loader focuses on compact flexibility and high-efficiency adaptation. Adopting full hydraulic drive and 360° steering system, it has a small body but abundant power, which can easily shuttle through narrow sites. Suitable for municipal obstacle clearance, farm operations, small-scale infrastructure and other scenarios, it can quickly switch attachments to realize multi-operation, making it a cost-effective choice for small and medium-sized construction scenarios.
| Performance Parameters | |
| Parameter | Specification |
| Rated Loading Capacity | 350 kg |
| Bucket Capacity | 0.15 m³ |
| Maximum Lifting Force | 800 kg |
| Working Speed | 0 – 4.3 km/h |
| Rated Pressure | 17 MPa |
| Lifting Time | 4.5 s |
| Descent Time | 3.1 s |
| Tipping Time | 1.8 s |
| Climbing Ability | 30% |
| Working Weight | 910 kg |
| Engine Details (Honda) | |
| Parameter | Specification |
| Engine Model | Honda 690 EPA |
| Engine Type | Gasoline |
| Output Power | 23 HP / 3600 rpm |
| Fuel Consumption | ≤ 6.7 L/h |
| Starting Method | Electric Start |
| Fuel Tank Capacity | 25 L |
| Engine Oil Capacity | 1.7 L |
| Hydraulic Oil Tank Capacity | 25 L |
