VANSE WSCY415 4m Telehandler | 3.2-Ton Capacity | EPA & CE Certified
2900mm/9.514 ft
Overall Length
1460 mm/4.790 ft
Overall Width
1980 mm/6.496 ft
Overall Height
1700 mm/5.577 ft
Wheelbase

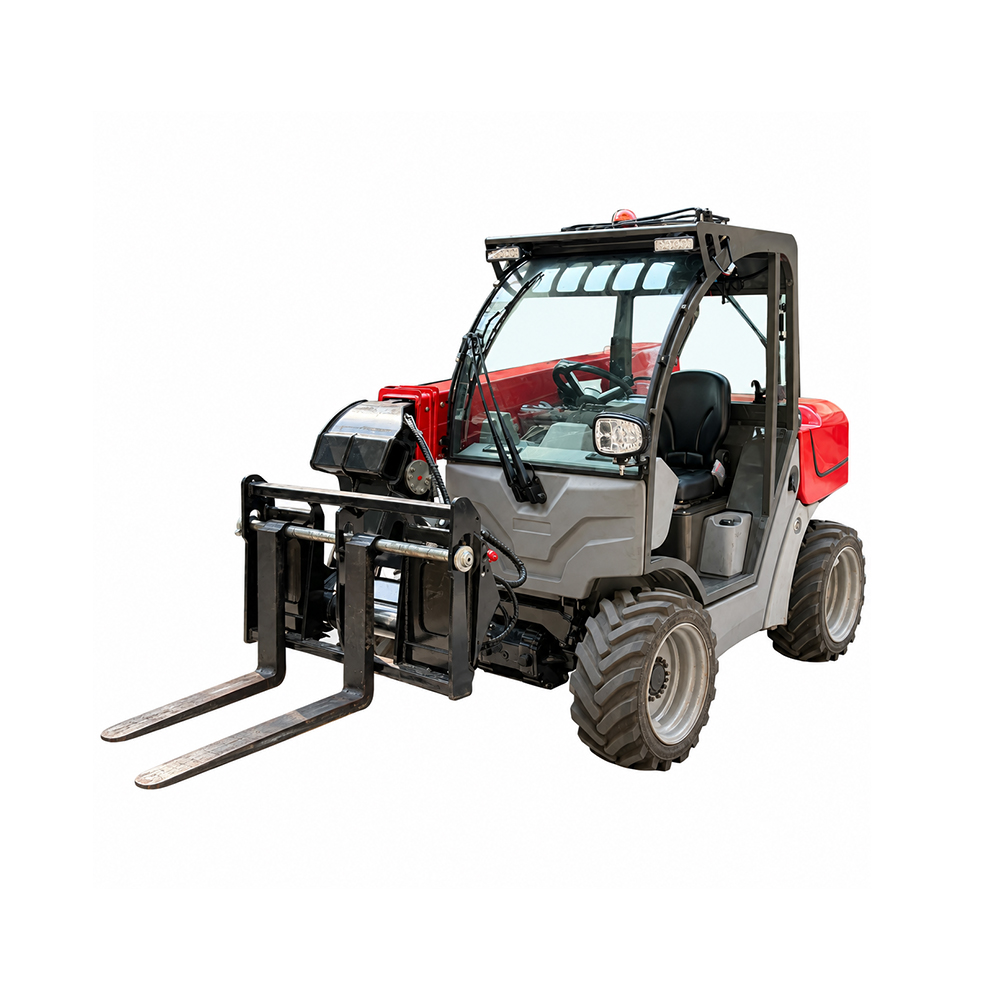

VANSE WSCY415 Telehandler — 4m Compact Farm Telehandler engineered for family agricultural farms. 3.2-ton rated capacity with triple safety protection.
Share This Product

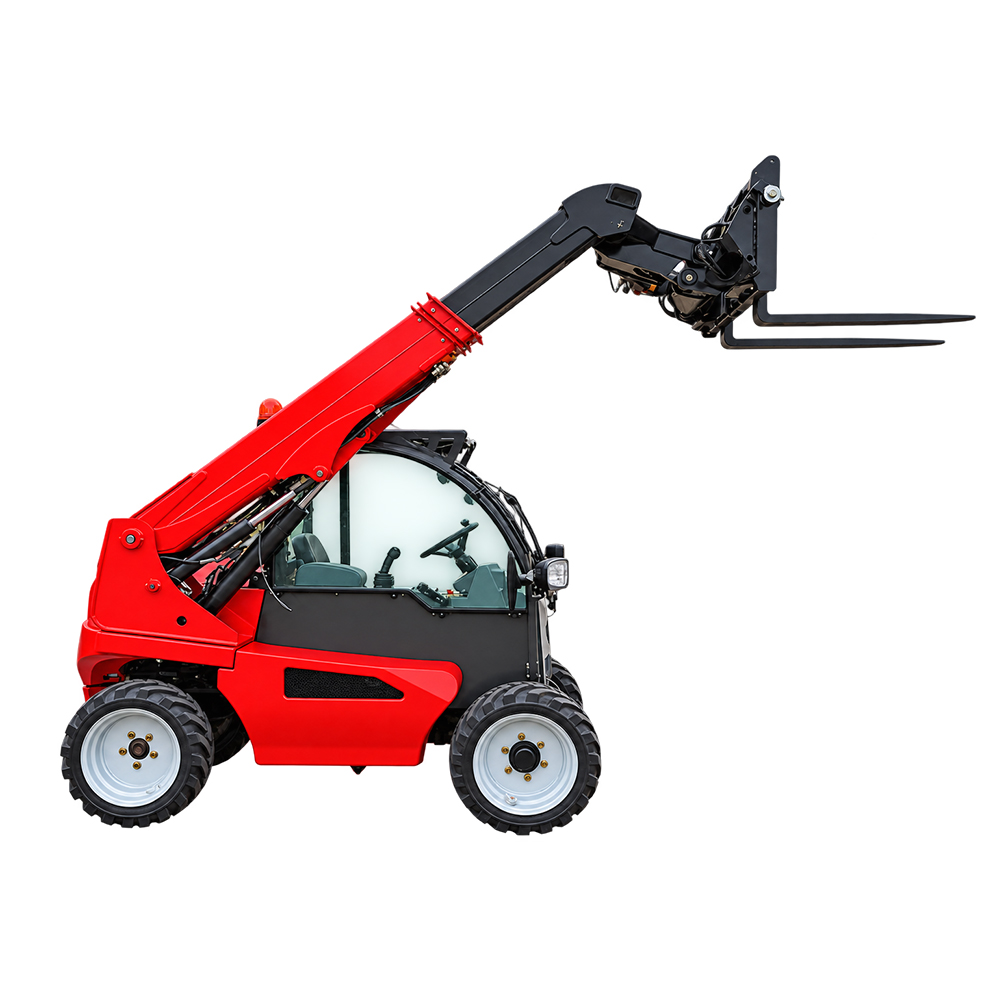

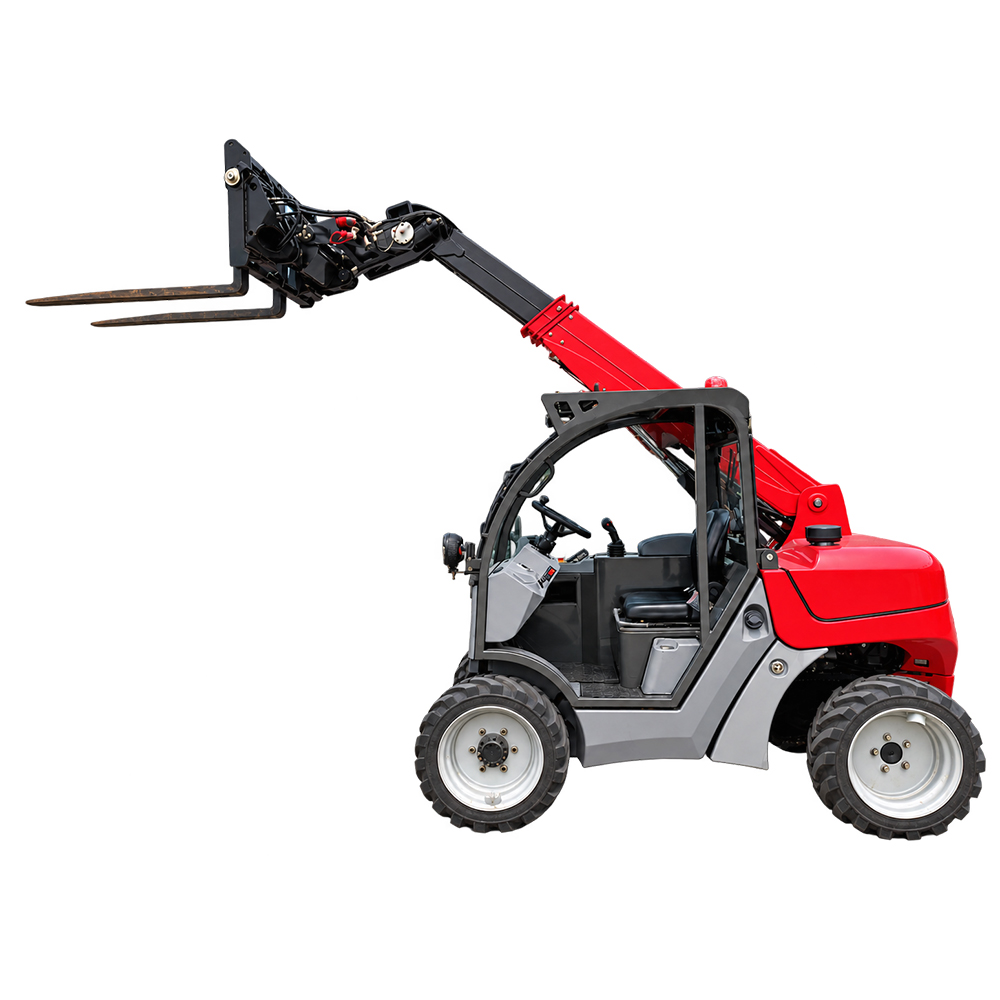

4m Compact Telescopic Boom
How it works:The compact 4m telescopic boom delivers strong lifting performance for family farm tasks, with smooth extension and retraction for stacking, loading, and material handling.
Spec & Standard:4m maximum lifting height, 3.2-ton rated capacity, high-strength boom structure suitable for daily agricultural work.
Buyer Benefit: Faster and more stable boom movement; ideal for barns, narrow yards, hay stacking, and farm construction.

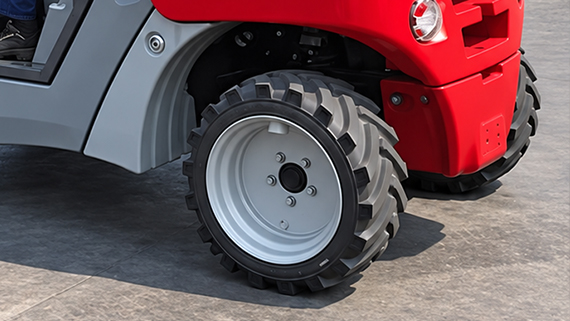

Farm Deep-Tread Anti-Slip Tyres
How it works:Deep lug agricultural tyres offer powerful grip on muddy, slippery, uneven farm ground. Reinforced rims protect the wheel assembly when hauling and lifting loads in tough field conditions.
Spec & Standard:26×12-16.5 Pneumatic tyre, Solideal, heavy-duty deep tread design, thickened reinforced rim.
Buyer Benefit:Boosts anti-slip performance by 20% on wet/muddy farmland; reduces tyre wear and avoids skidding during hay stacking and farm material transport.

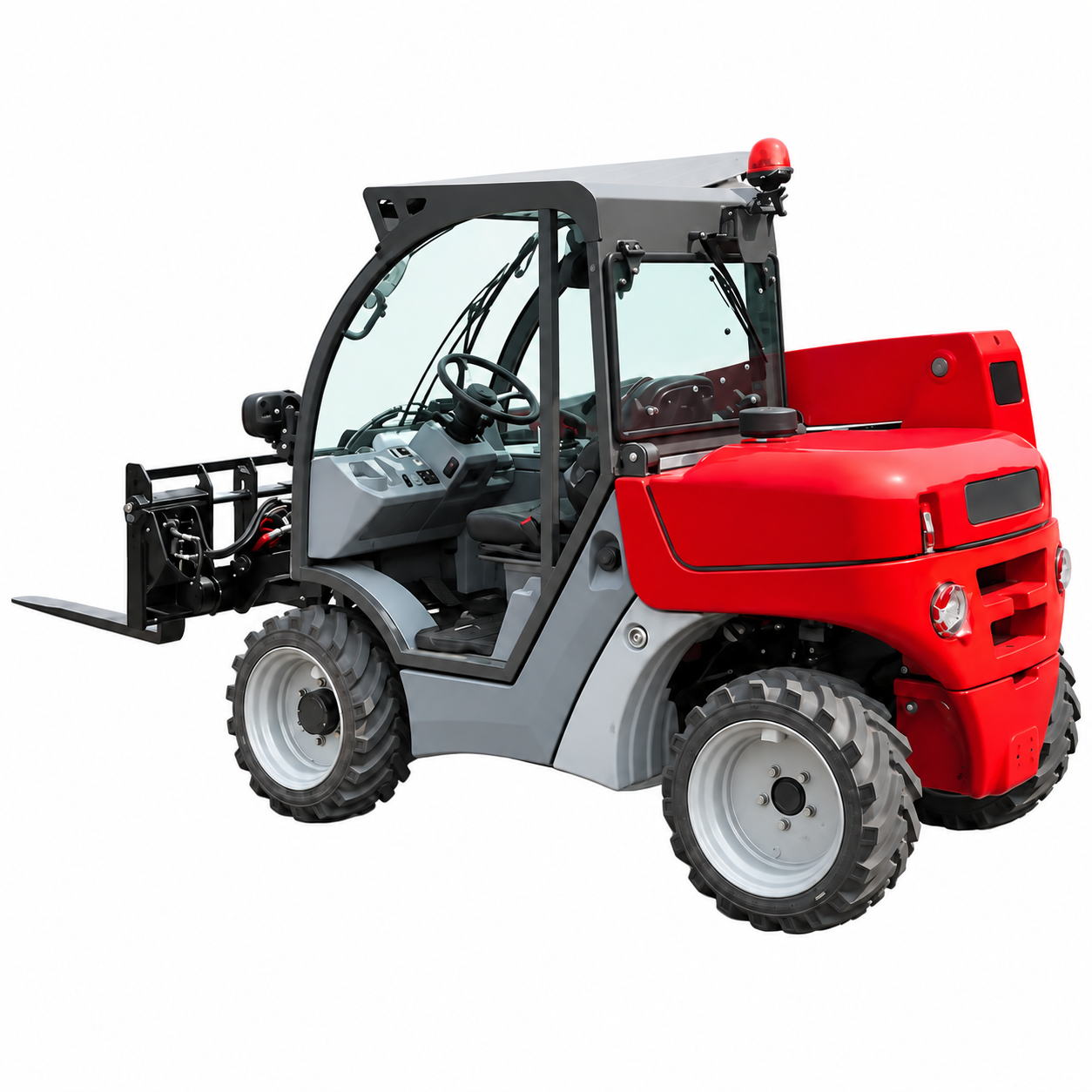

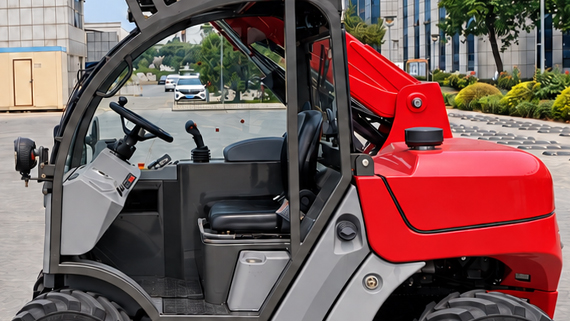

Panoramic Farm Operator Cab
How it works: The reinforced roll cage cab creates a safe operating space. Ultra-wide panoramic windows eliminate blind spots, while the shock-absorbing seat and integrated joystick controls deliver comfortable operation during long farm working hours.
Spec & Standard: ROPS/FOPS compliant safety structure, full panoramic window design, floating shock absorption seat and centralized control layout.
Buyer Benefit: Eliminates over 90% of visual blind spots; reduces operator fatigue by 22% during bumpy farm travel and greatly lowers safety risks and operation errors.

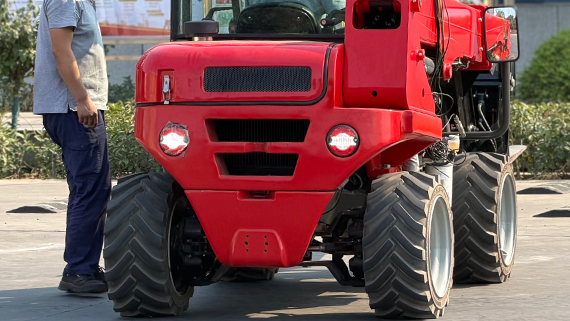

Rear Chassis & Power Compartment
How it works: The reinforced rear chassis protects engine and core hydraulic components. Optimized ventilation structure ensures fast heat dissipation, while protective covers block mud, dust and debris during farm field operation.
Spec & Standard: Heavy-duty welded rear frame, large-area heat dissipation grille, sealed protective housing, farm anti-mud design.
Buyer Benefit: Reduces damage from farm dust and mud; improves continuous working stability, extends service life of engine and hydraulic parts, cuts maintenance cost effectively.

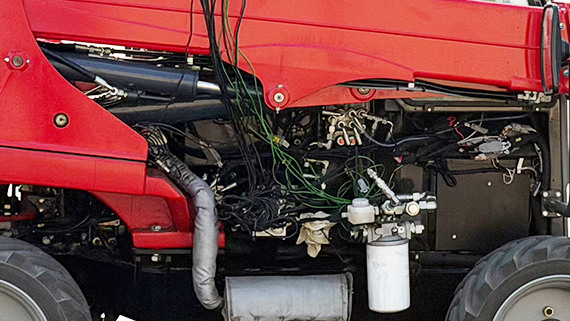

Perkins Diesel Engine Assembly
How it works: Powered by Perkins 403J-17 diesel engine, matched with high-efficiency air intake, cooling and precision fuel filtration systems to keep air and fuel clean, delivering stable power output for heavy farm workloads.
Spec & Standard: 3 cylinders /1.663L displacement, rated power 18.4kW@2200rpm, Max.Torque 91.9Nm@1600rpm, Stage V / EPA emission standard.
Buyer Benefit: Reduces engine failure rate by 25%; extends overall service life by 20%, lowers fuel consumption and significantly cuts daily maintenance frequency for long farm working hours.

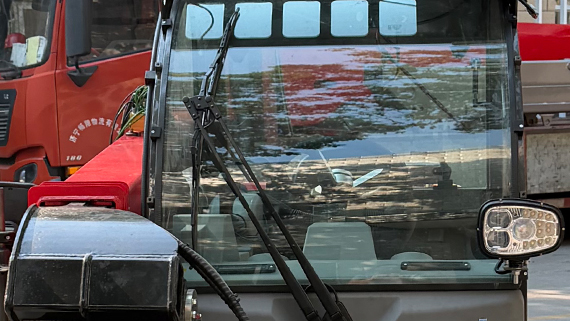

Front Windshield & Heavy-Duty Wipers
How it works: The large front panoramic windshield provides wide vision for farm operation. Equipped with heavy-duty double wipers to clear rain, dust and mud splashes, maintaining clear sight on muddy farm sites.
Spec & Standard: Thickened high-transparency safety glass, dual heavy-duty wiper assembly, corrosion-resistant wiper arms, sealed rubber strips.
Buyer Benefit: Keeps the front view clean in rainy and muddy farm conditions; reduces visual obstruction, improves operation safety in all weather.

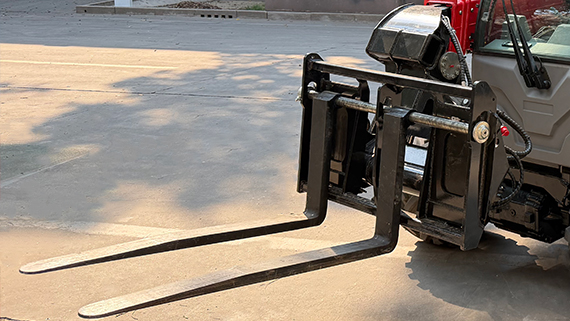

The compact VANSE WSCY415 telehandler is purpose-built for family farm daily operations. With a 3.2-ton lifting capacity and 4m telescopic boom, it easily handles hay stacking, silage moving, pallet loading, feed transport, barn maintenance and farm material handling. 4-wheel drive delivers reliable traction on muddy, uneven farm yards. Quick-hitch design supports pallet forks, grapples and buckets, replacing multiple farm machines to save your cost.
| Dimension | |
|---|---|
| Overall Length (with hitch device) | 2900mm/9.514 ft |
| Overall Width | 1460 mm/4.790 ft |
| Overall Height | 1980 mm/6.496 ft |
| Wheelbase | 1700 mm/5.577 ft |
| Track Width | 1170 mm (center to center)/3.839 ft |
| Unladen Weight | 3200kg/7054.784 lb |
| Tyre | 26×12-16.5 |
| Tyre Type | Pneumatic tyre, Solideal |
| Tyre Size | 26×12-16.5 |
| Outriggers | None |
| Performance | |
| Rated Load | 3200kg/7054.784 lb |
| Max. Lifting Height | 4000 mm/13.123 ft |
| Gradeability | 40% |
| Travel Speed | 15km/h/9.32 mph |
| Drive Mode | 4-wheel drive |
| Steering Mode | Rear-wheel steering |
| Hydraulic Pump | Gear pump |
| Engine | |
| Brand | Perkins |
| Model | 403J-17 |
| Emission Standard | Stage V / EPA |
| Cylinders / Displacement | 3 cylinders / 1.663 L |
| Rated Power | 18.4 kW / 2200 rpm |
| Max. Torque | 91.9 Nm / 1600 rpm |
