Wood Clamp
1500 mm/4.921 ft
Overall Width
1250 mm/4.101 ft
Overall Length
1130 mm/3.707 ft
Overall Height
1244 mm/4.081 ft
Maximum Opening
Hydraulically driven with a large opening and closing angle and stable clamping force, it safely grabs logs, wood waste, and other materials. Suitable for material transfer operations in forest farms and wood processing plants.
Share This Product

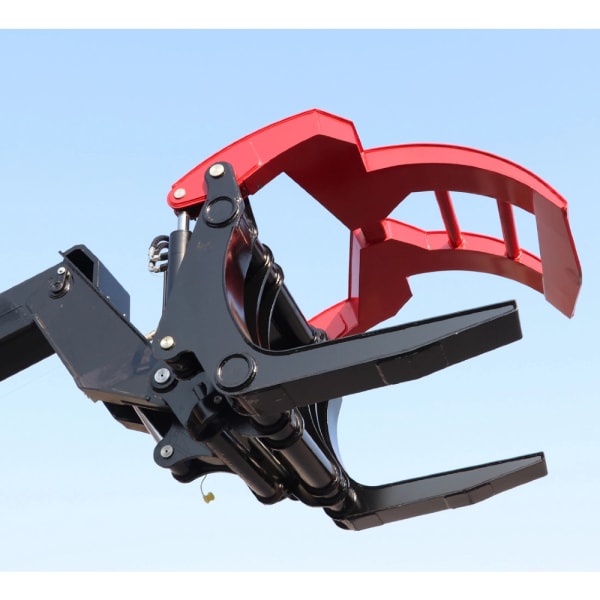

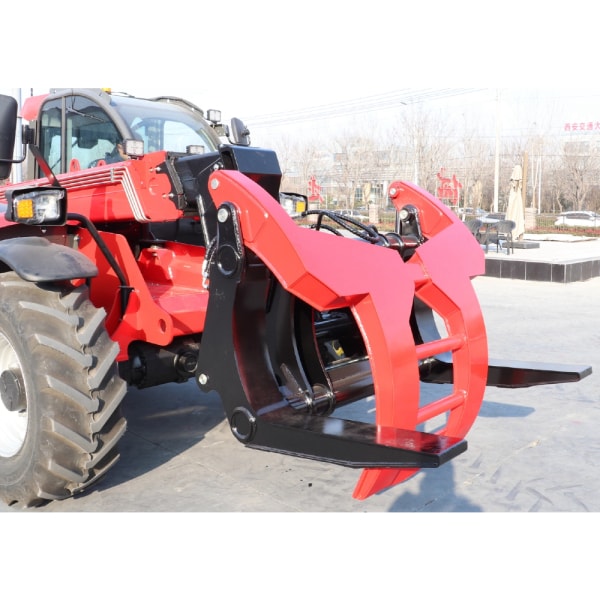

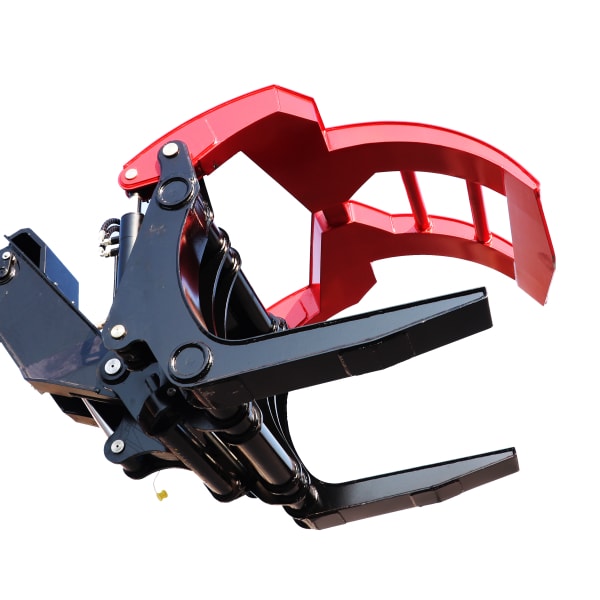

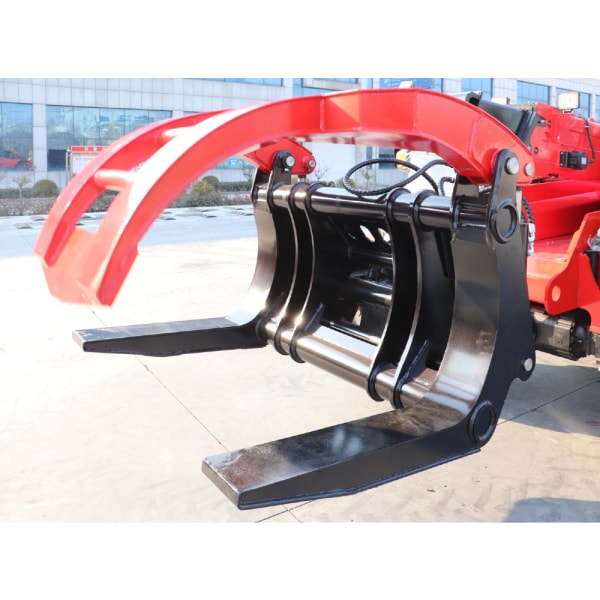

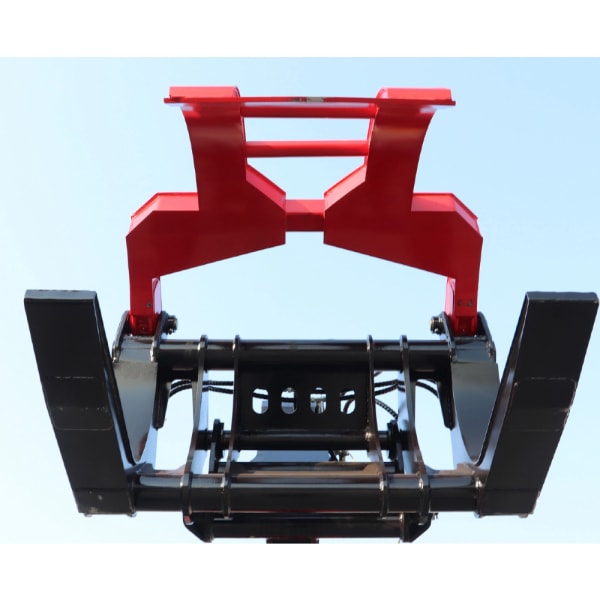

A large-opening wood clamp with reinforced clamp arms and anti-slip teeth design, it firmly grips long and thin materials such as logs, planks, and timber, preventing slippage during gripping. The clamping arms have a large opening and closing force, adaptable to timber of different diameters and lengths.
Applications: Timber loading, unloading, stacking, and transfer operations in timber mills, construction sites, furniture factories, and paper mills, improving timber processing and logistics efficiency, especially suitable for large-scale operations of large timber processing enterprises.
| Overall Width | 1500mm/4.921 ft |
| Overall Length | 1250mm/4.101 ft |
| Overall Height | 1130mm/3.707 ft |
| Maximum Opening | 1244mm/4.081 ft |
| Maximum Enclosure | 1000mm/3.281 ft |
| Minimum Enclosure | 340mm/1.115 ft |
| Weight (including mounting hardware) | 645kg/1421.980 lb |
| Maximum Allowable Pressure | 25MPa |
| Applicable Flow Rate | 50-70L/min |
