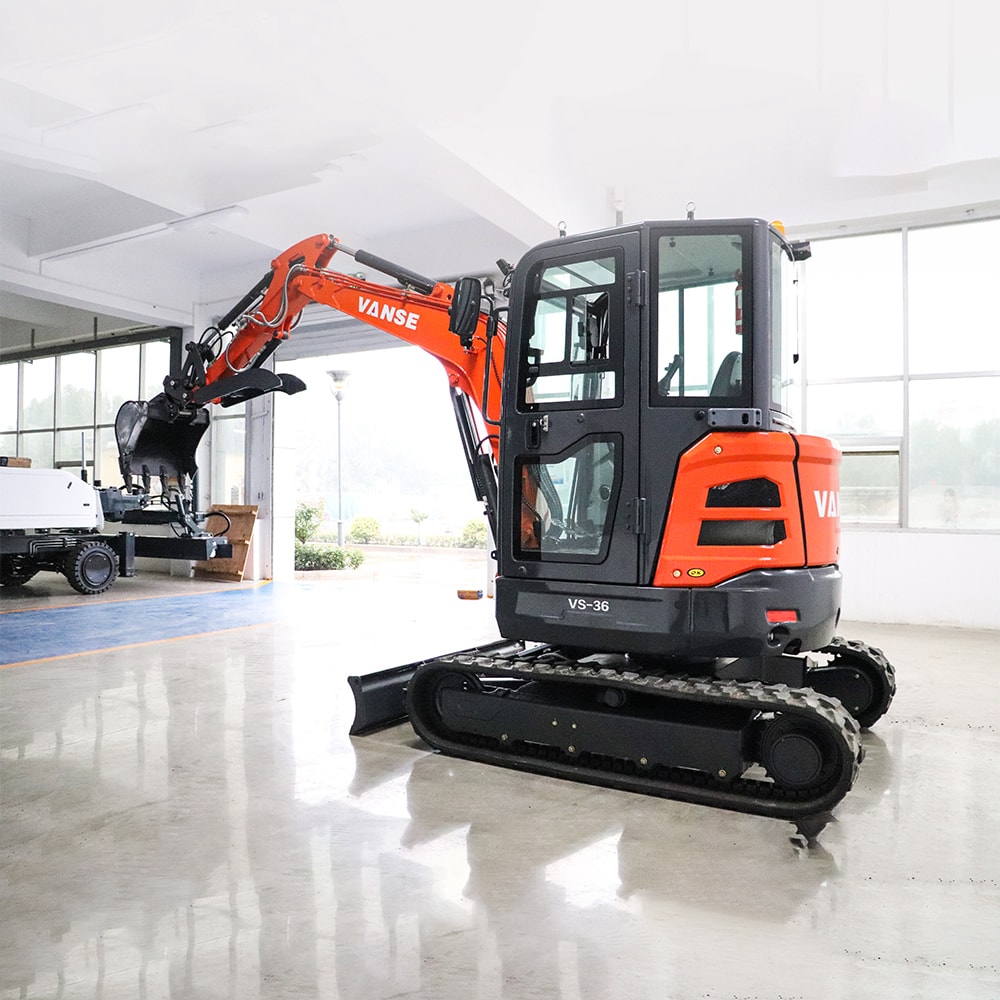

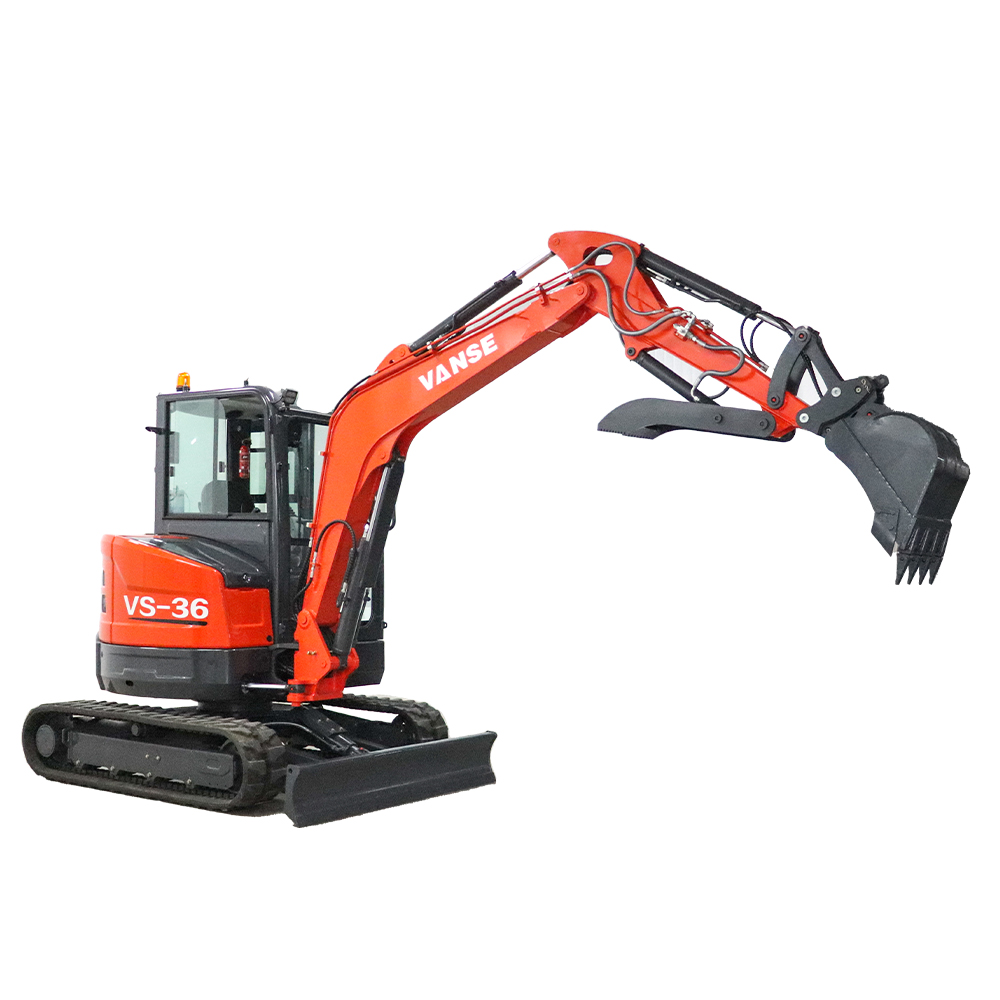

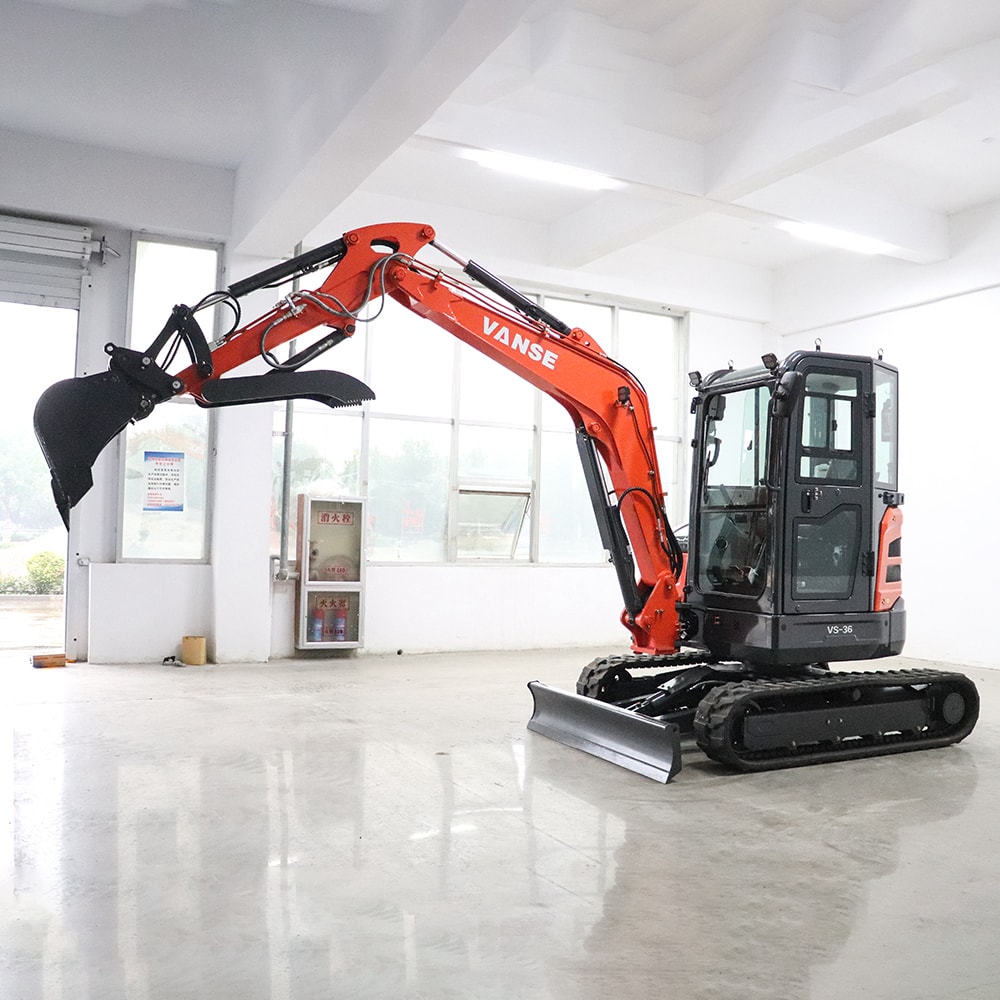

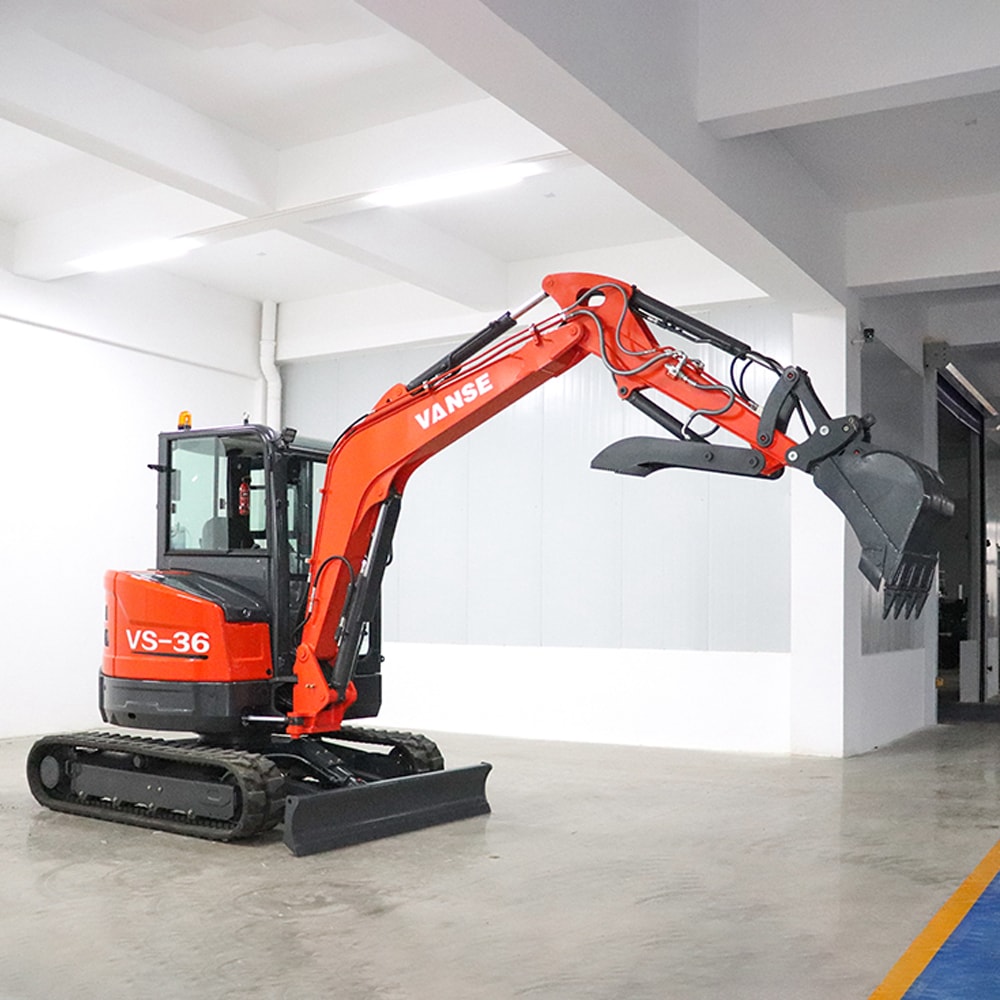

VSC-36 Mini Excavator for Construction
3,800 kg
Operating Weight
0.12 m³
Bucket Capacity
30.4 kN
Bucket Digging Force
22.2 kW
Rated Engine Power
Engineered for medium-to-large heavy-load projects, this mini excavator features a military-grade reinforced structure, closed-loop hydraulic system, and intelligent heat dissipation. It delivers top-tier digging depth and lifting capacity for demanding jobs like mining, wharf operations, and large foundation excavation, with reliable performance in harsh conditions.
Share This Product

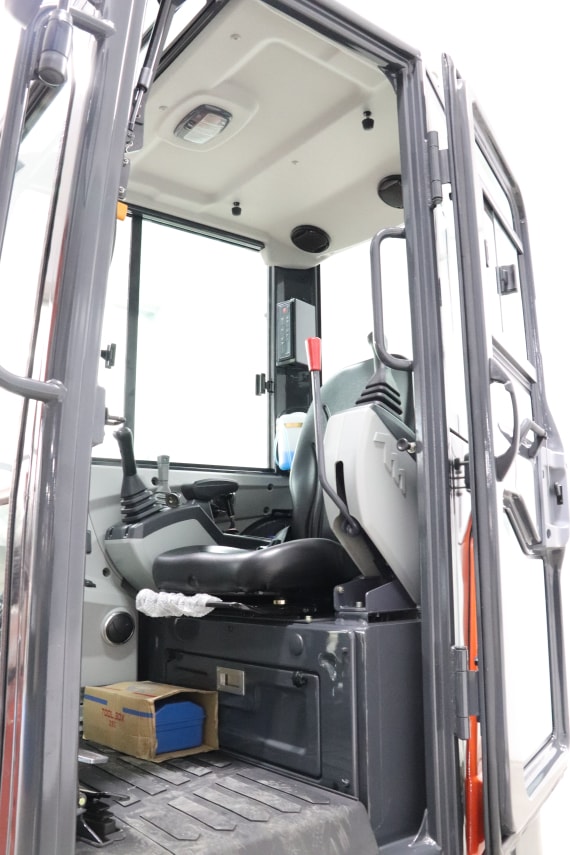

Fully Enclosed Luxury Cab
Fully enclosed, soundproof, and dustproof, equipped with an ergonomic seat and storage space, ensuring comfort and reducing fatigue during long working hours, and allowing for worry-free operation even in harsh conditions.

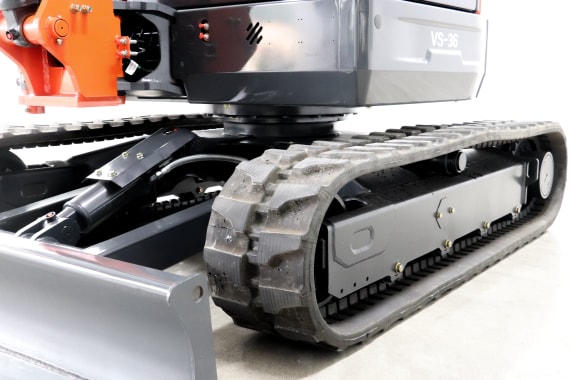

Reinforced Tracks and Bulldozer Blade
Reinforced rubber tracks provide stable grip and do not damage the road surface; the large bulldozer blade can quickly level the ground, ensuring machine stability and reliable heavy-duty operation.

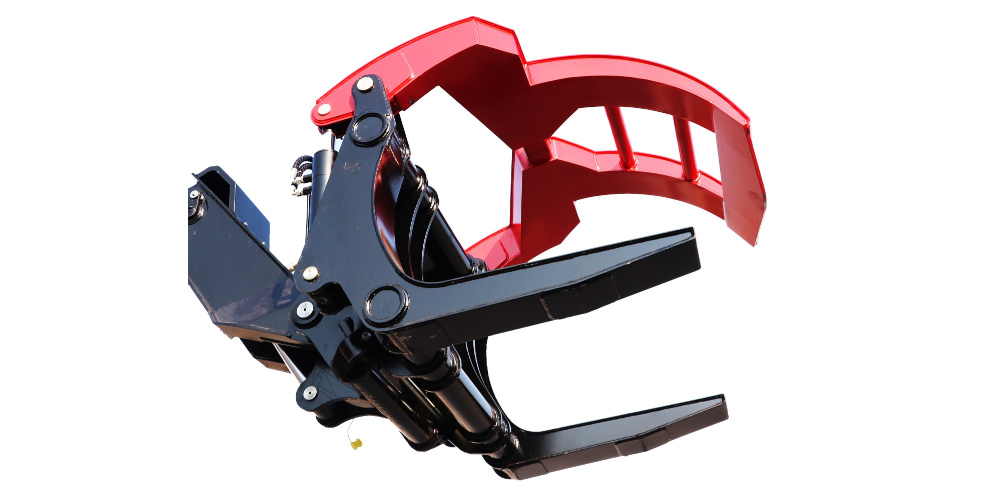

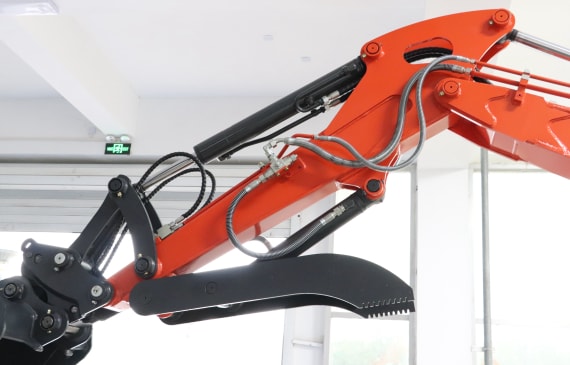

High-Strength Hydraulic Arm and Quick-Change Gripper
The thickened steel plate hydraulic arm is resistant to bending and torsion, and the integrated quick-change gripper allows for rapid switching of attachments, enabling efficient operation in various scenarios such as digging, grabbing, and crushing.

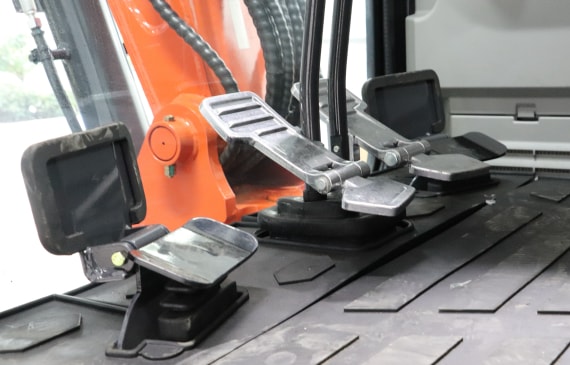

Multi-Pedal Precision Control Area
The multi-pedal layout is clear, with a light and responsive feel, allowing for precise control of walking, turning, and other movements, improving both work efficiency and safety.
Integrated Control Console
The integrated control panel features a logical button layout, making functions clear at a glance, easy for beginners to learn, and more convenient and efficient to operate.
VSC-36 mini excavator (engineering version) is positioned for medium and large-scale engineering heavy-load operations. It adopts military-grade reinforced structure, closed-loop hydraulic system and intelligent temperature-controlled heat dissipation system. Its digging depth and lifting capacity are at the leading level in the same tonnage. It is suitable for high-intensity engineering scenarios such as mine mining, wharf loading and unloading, and large foundation pit excavation. It has excellent adaptability to harsh working conditions and continuous operation capacity, ensuring efficient progress of projects.
| Technical Parameters | |
| Parameter | Specification |
| Machine Weight | 3800 kg / 8378 lb |
| Bucket Capacity | 0.12m³ |
| Engine | Kubota |
| Rated Power | 22.2 kW / 2400 rpm |
| Travel Speed (High/Low) | 4.0 / 2.4 km/h |
| Maximum Rotation Speed | 9 r/min |
| Gradeability | 30°(58%) |
| Ground Pressure | 32 kPa |
| Bucket Digging Force | 30.4 kN |
| Digging Force of Bucket Arm | 18.2 kN |
| Dimensions (mm / ft) | |
| Parameter | Measurement |
| Total Length | 4880 mm / 16.01 ft |
| Ground Length (Transportation) | 3360 mm / 11.02 ft |
| Overall Height (To Top Of Boom) | 1880 mm / 6.17 ft |
| Overall Width | 1740 mm / 5.71 ft |
| Overall Height (To The Top Of The Cab) | 2550 mm / 8.37 ft |
| Counterweight Ground Clearance | 595 mm / 1.95 ft |
| Minimum Ground Clearance | 295 mm / 0.97 ft |
| Tail Turning Radius | 860 mm / 2.82 ft |
| Track Length | 2155 mm / 7.07 ft |
| Track Gauge | 1440 mm / 4.72 ft |
| Track Width | 1740 mm / 5.71 ft |
| Standard Track Shoe Width | 300 mm / 0.98 ft |
| Width Of Rotary Platform | 1615 mm / 5.3 ft |
| Distance From Rotation Center To Rear End | 860 mm / 2.82 ft |
| Left Swing Stroke of Boom | 550 mm / 1.8 ft |
| Right Swing Stroke of Boom | 800 mm / 2.62 ft |
