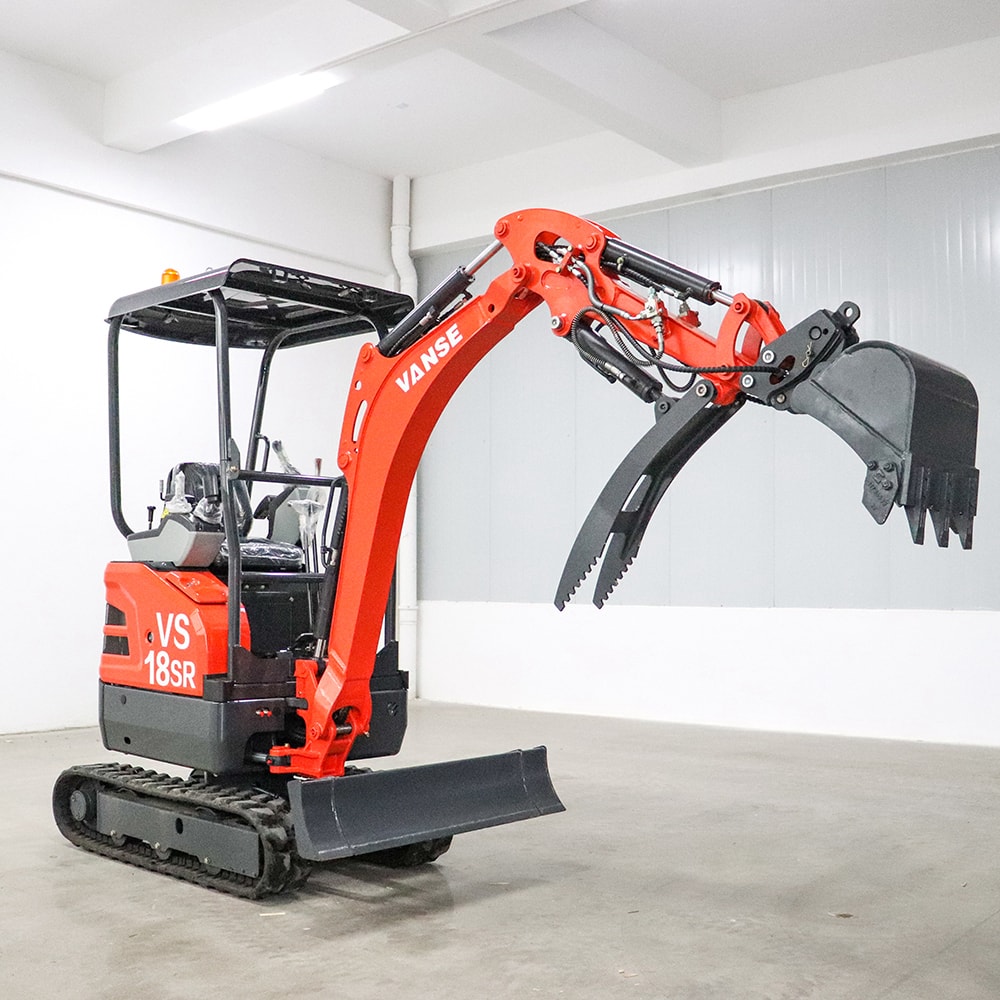

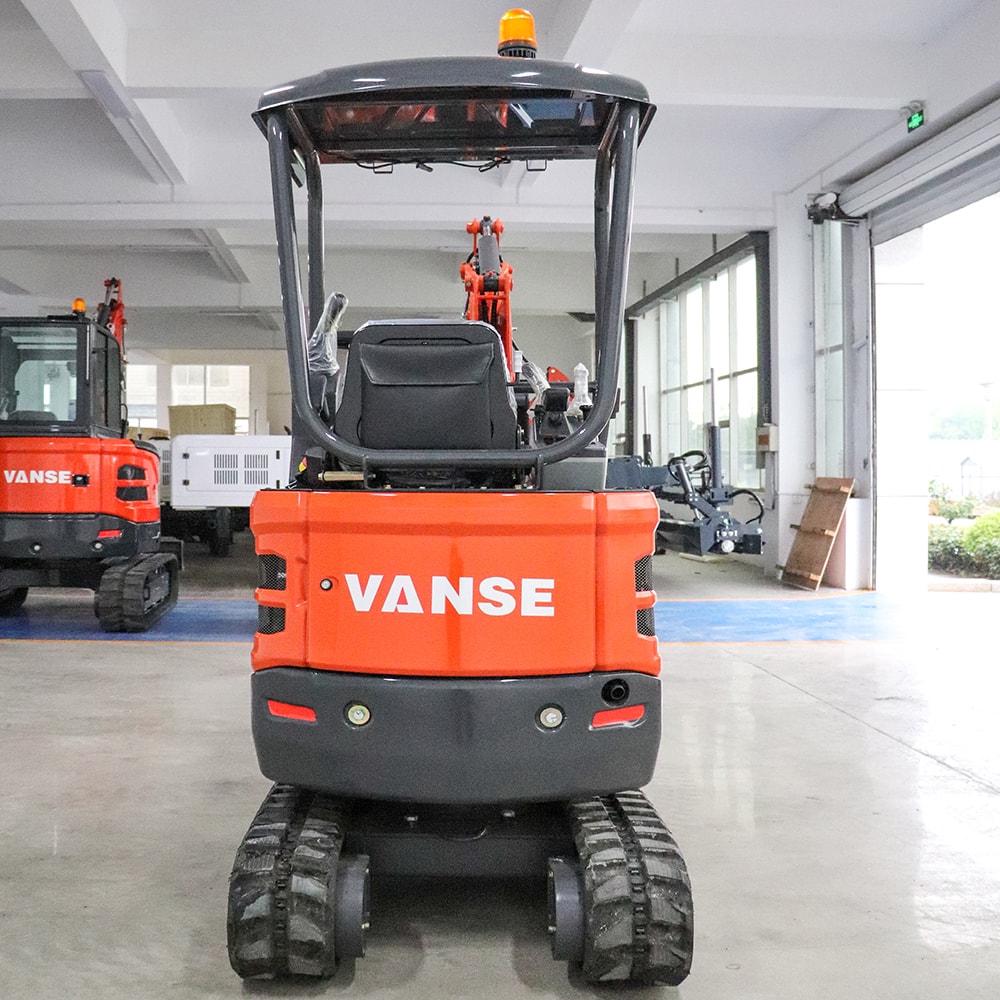

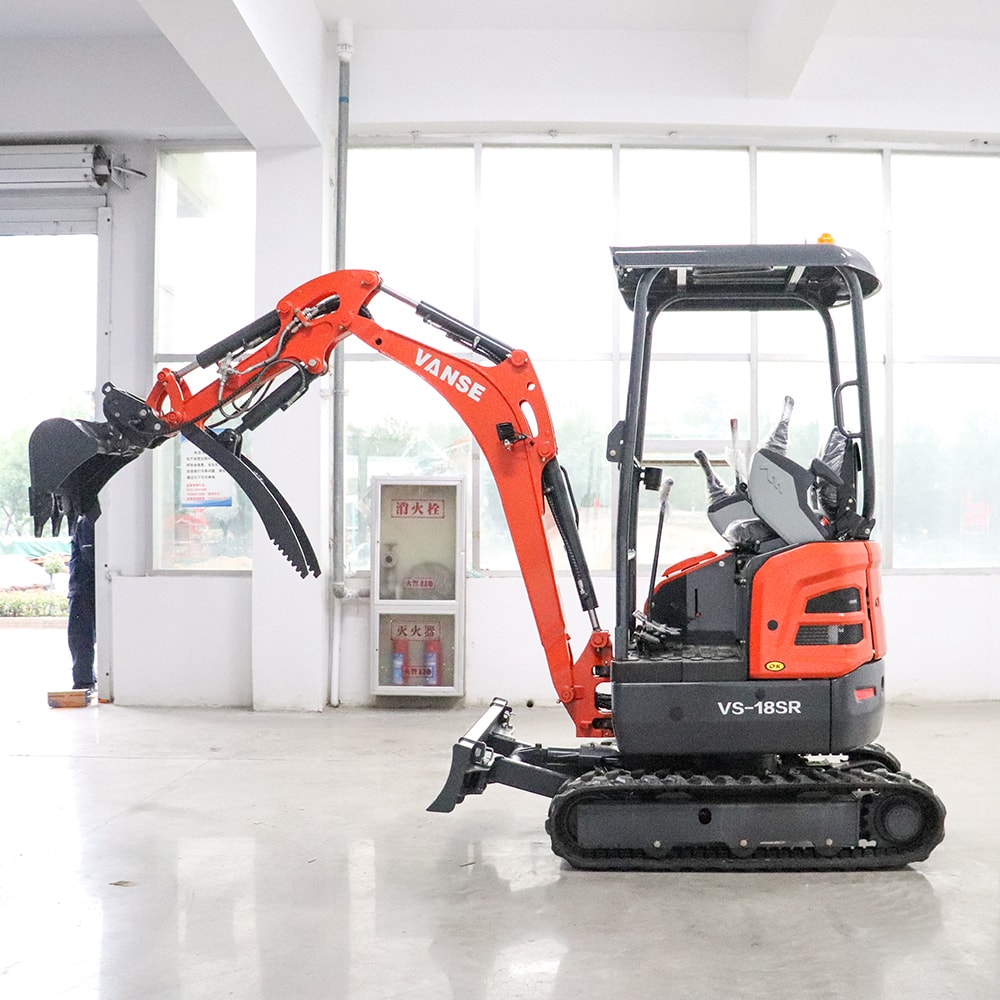

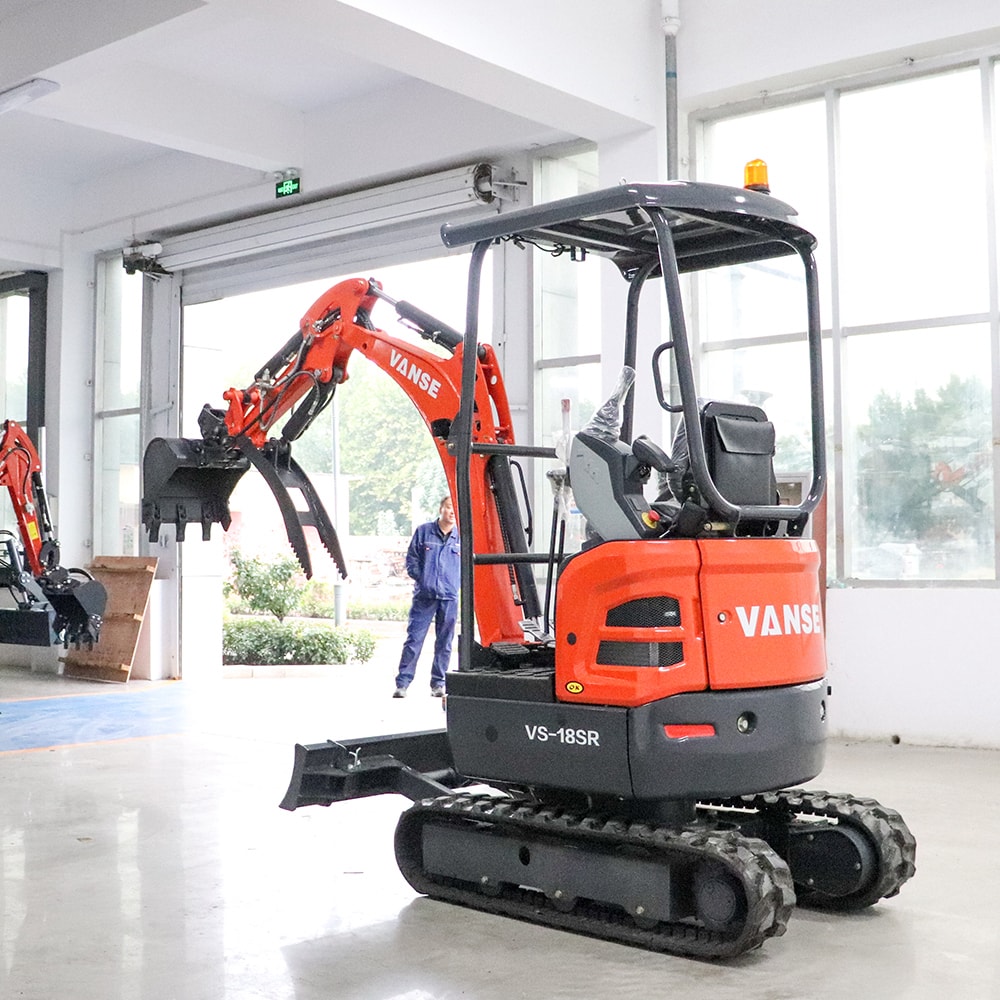

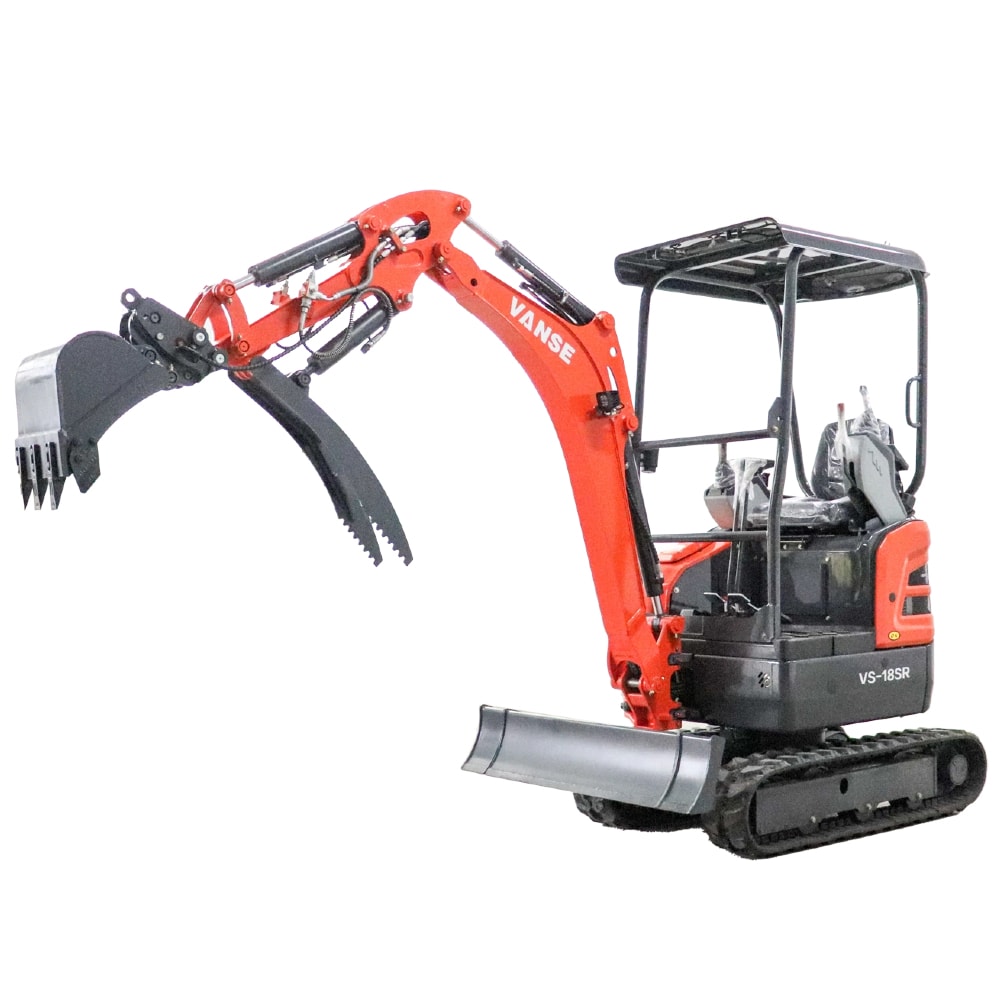

VSC-18 Mini Excavator for Construction
1,800 kg
Operating Weight
0.04 m³
Bucket Capacity
16 kN
Bucket Digging Force
11.2 kW
Rated Engine Power
Designed for municipal engineering and pipeline construction, this mini excavator combines precise control with stable performance. Featuring an engineering-grade reinforced structure and pilot hydraulic system, it adapts well to complex job sites and delivers reliable efficiency for excavation, trenching, backfilling, and other medium-duty operations.
Share This Product

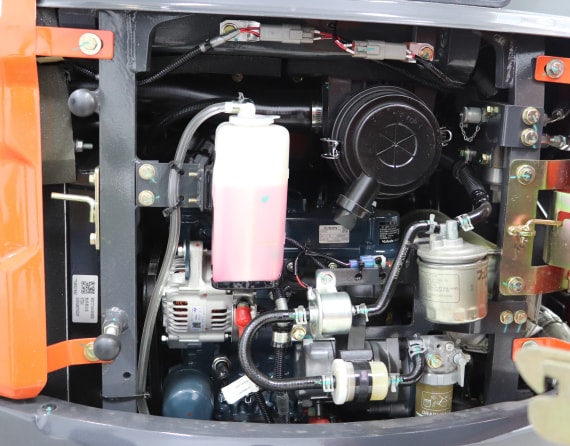

Kubota Powertrain
Equipped with a Kubota engine, offering strong power and economical fuel consumption; the integrated electronic control and filtration system minimizes malfunctions and facilitates maintenance, making it suitable for high-intensity engineering operations.

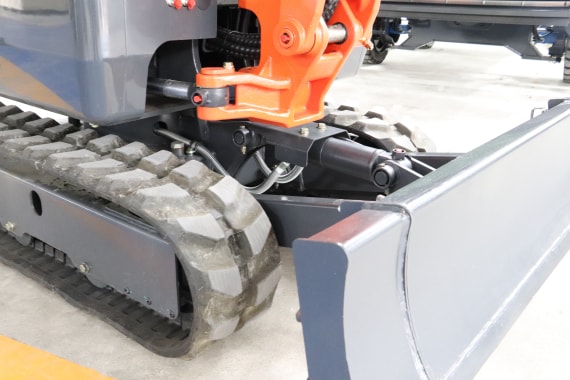

Tracks and Bulldozer Blade
Rubber tracks provide strong traction without damaging the road surface; the front-mounted bulldozer blade allows for rapid site leveling; the compact design makes it suitable for relocation operations in narrow construction sites.

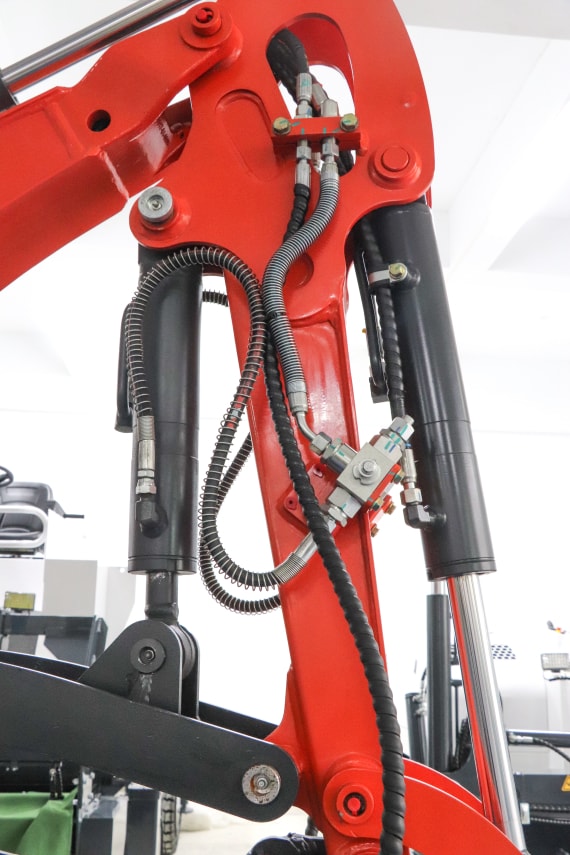

High-Strength Hydraulic Arm
The thickened steel plate hydraulic arm is resistant to bending and torsion; the precision hydraulic lines ensure smooth operation and support quick attachment changes, enabling efficient operation in various scenarios such as excavation, breaking, and ditch clearing.

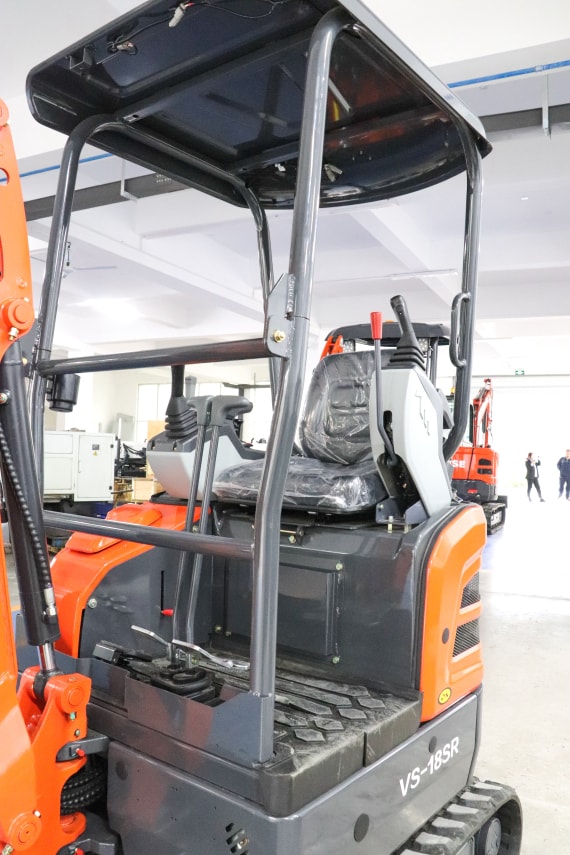

Semi-Enclosed Canopy Operating Cabin
The open, canopy-covered operating space provides shade and rain protection, and offers unobstructed visibility; the high-fitting seat and dual control lever layout provide precise control and reduce fatigue during extended operation.
VSC-18 mini excavator (engineering version) focuses on municipal engineering, pipeline construction and other scenarios. With “precision operation + stability and reliability” as the core, it adopts engineering-grade reinforced structure and pilot hydraulic system, balancing flexible control and working condition adaptability. It can efficiently complete small and medium-sized earth excavation, trench trimming, foundation backfilling and other engineering operations, adapt to complex construction environments, and is a cost-effective equipment for small and medium-sized construction teams.
| Technical Parameters | |
| Parameter | Specification |
| Machine Weight | 1800 kg (3968 lb) |
| Bucket Capacity | 0.04m³ |
| Engine | Kubota |
| Rated Power | 11.2 kW / 2400 rpm |
| Walking Speed | 0 ~ 2.2 ~ 4.3 km/h |
| Maximum Rotation Speed | 9.5 r/min |
| Gradeability | 30°(58%) |
| Ground Pressure | 29 kPa |
| Bucket Digging Force | 16 kN |
| Digging Force of Bucket Arm | 9.5 kN |
| Total Length | 3575 mm (11.73 ft) |
| Ground Length (Transportation) | 2440 mm (8.01 ft) |
| Overall Height (to top of boom) | 1105 mm (3.63 ft) |
| Overall Width | 990 mm (3.25 ft) / 1300 mm (4.27 ft) |
| Overall Height (to the top of the cab) | 2405 mm (7.89 ft) |
| Counterweight Ground Clearance | 460 mm (1.51 ft) |
| Minimum Ground Clearance | 145 mm (0.48 ft) |
| Tail Turning Radius | 650 mm (2.13 ft) |
| Wheelbase | 1230 mm (4.04 ft) |
| Track Length | 1593 mm (5.23 ft) |
| Gauge | 760 mm (2.49 ft) / 1070 mm (3.51 ft) |
| Track Width | 990 mm (3.25 ft) / 1300 mm (4.27 ft) |
| Standard Track Shoe Width | 230 mm (0.76 ft) |
| Width Of Rotary Platform | 990 mm (3.25 ft) |
| Distance From Rotation Center to Rear End | 650 mm (2.13 ft) |
| Bucket Overall Width | 485 mm (1.59 ft) |
| Boom Right Offset | 510 mm (1.67 ft) |
| Boom Left Offset | 345 mm (1.13 ft) |
