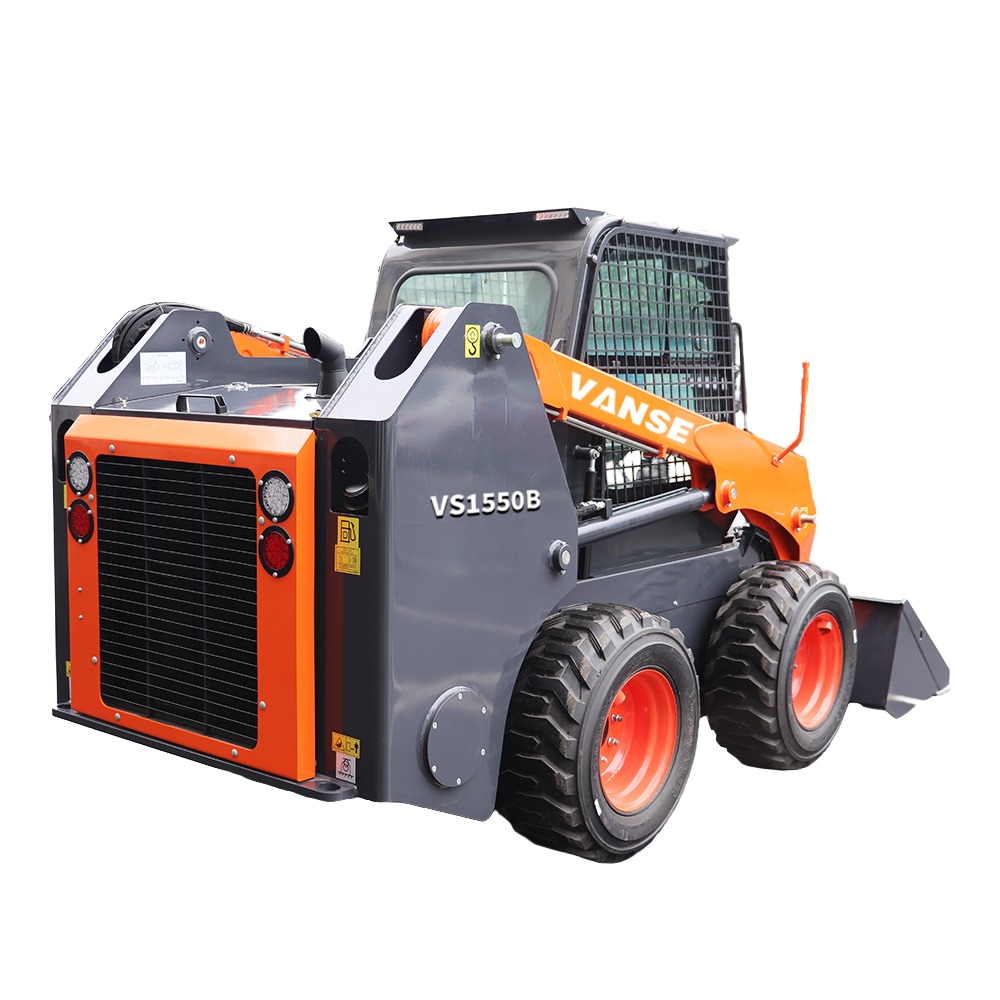

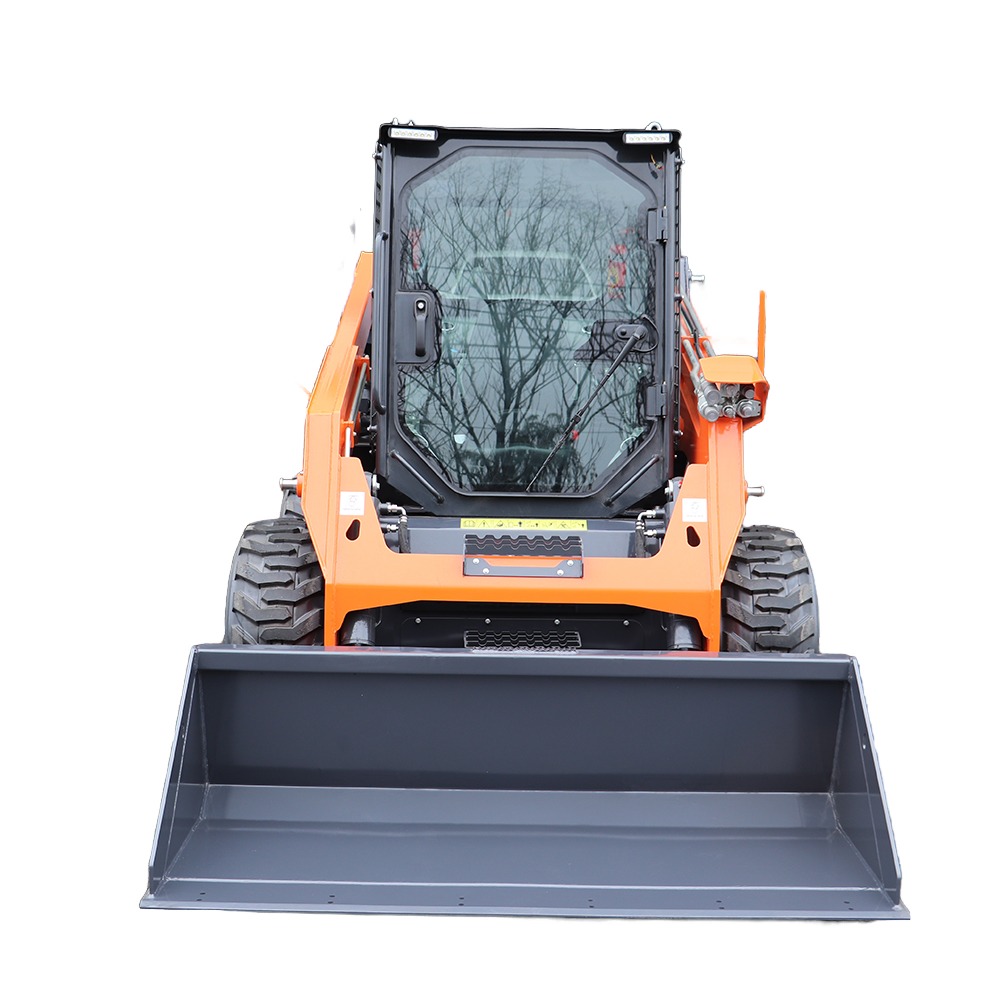

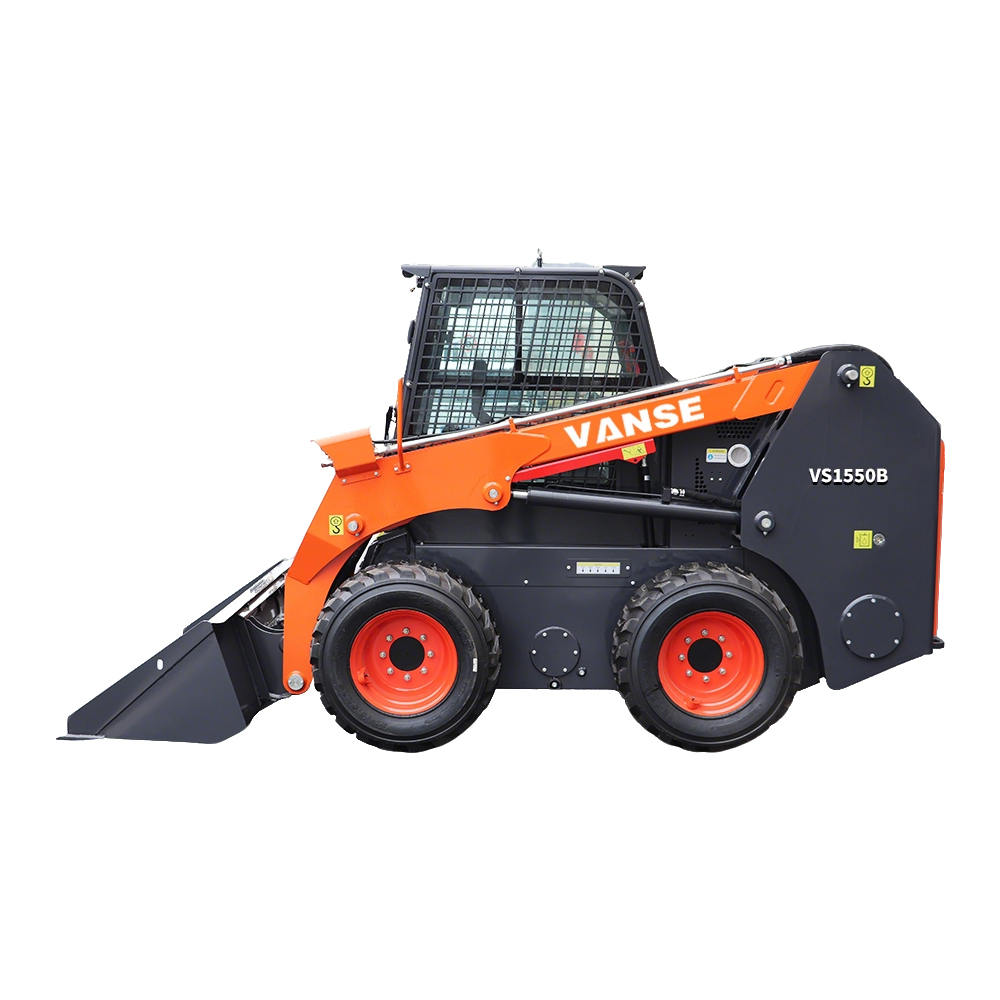

VS1550B Skid Steer Loader
3970mm
Working Height
2813mm
Bottom of Bucket Height
3521mm
Overall Length
39°
Dump Angle
Large skid steer loaders are multi-functional and efficient operating equipment in the engineering and construction field. With their compact and flexible design and powerful performance, they have become core auxiliary equipment in various complex working conditions.
Share This Product

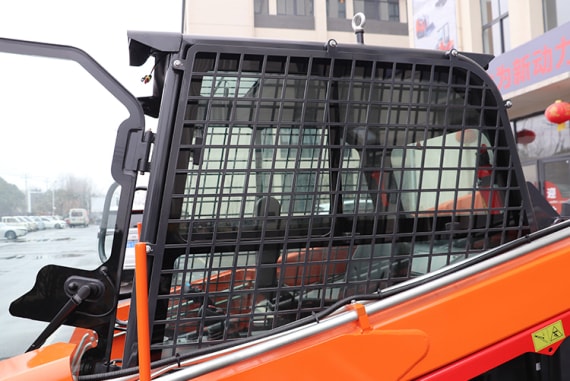

Safety Net Cab
Safety net cab protects against falling objects, ensuring operational safety; provides excellent visibility for observing the work environment.

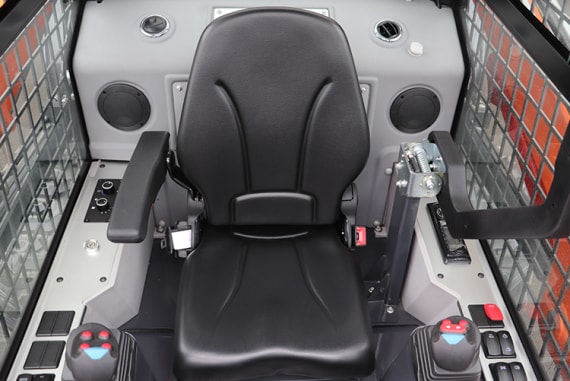

Ergonomic Seat
Ergonomic seat with armrests reduces fatigue during extended work periods; side speakers enhance working comfort.

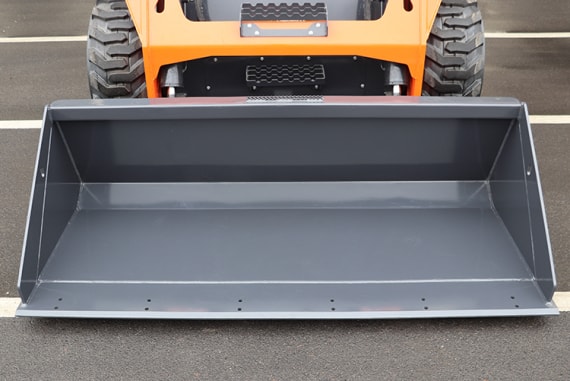

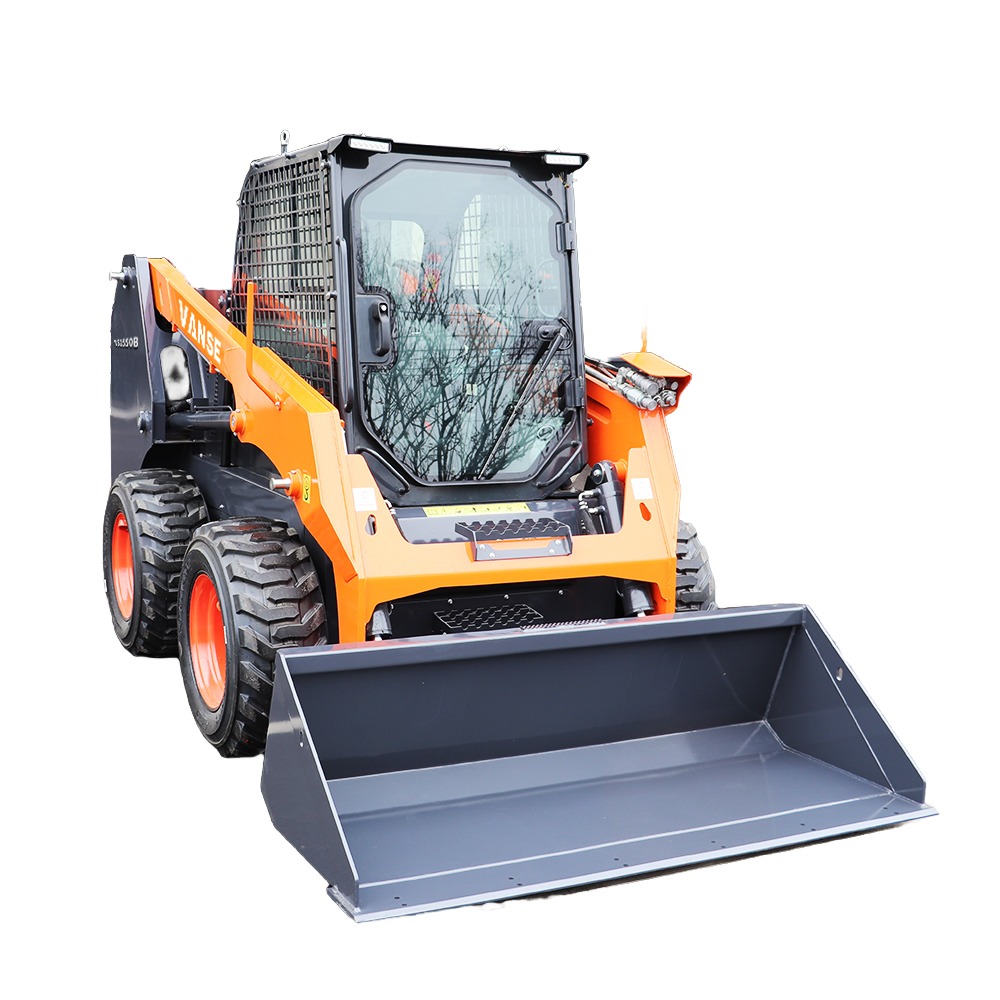

Large-capacity Standard Bucket
Large-capacity standard bucket made of wear-resistant steel plates offers high loading efficiency and is suitable for handling various materials.

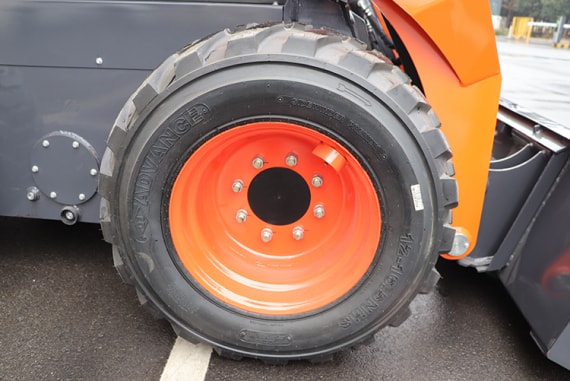

Walking and Working Devices
Large-size, deep-tread engineering tires offer strong traction, adapting to complex conditions such as mud and gravel.

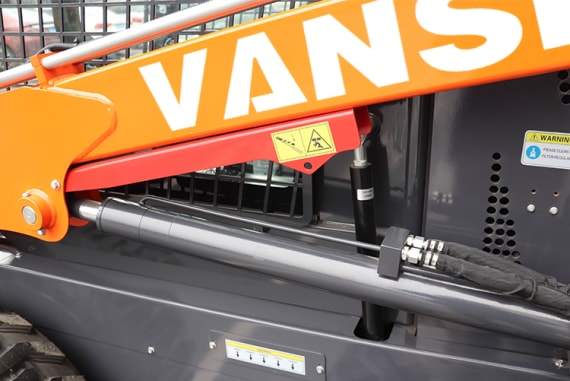

Hydraulic Boom Structure
Hydraulic cylinder and boom structure provide strong load-bearing capacity and stable, reliable operation.

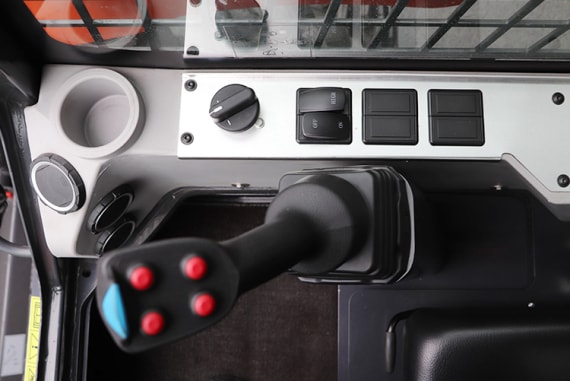

Control System
Multi-button layout allows for precise control of walking, lifting, and tilting movements, providing intuitive and efficient operation.
| VS1550B | |
| Working Height – Full Lift A (mm) | 3970 |
| Bottom of Bucket Height – Full Lift C (mm) | 2813 |
| Overall Length – With Bucket E (mm) | 3521 |
| Dump Angle – Full Lift G (°) | 39 |
| Dump Height – Full Lift J (mm) | 658 |
| Tilt Angle L (°) | 27 |
| Track Width N (mm) | 1412 |
| Departure Angle Q (°) | 22 |
| Overall Width – Without Bucket S (mm) | 1676 |
| Turning Radius – With Bucket X (mm) | 2156 |
| Turning Radius – Rear Z (mm) | 1648 |
| Hinge Height – Full Lift B (mm) | 3021 |
| Roll Bar Height D (mm) | 2008 |
| Overall Length – Without Bucket F (mm) | 2763 |
| Dump Height – Full Lift H (mm) | 2270 |
| Tilt Angle – Full Lift K (°) | 96 |
| Wheelbase M (mm) | 1093 |
| Ground Clearance P (mm) | 190 |
| Bucket Width R (mm) | 1730 |
| Rear Length W (mm) | 991 |
| Turning Radius – Without Bucket Y (mm) | 1353 |
