VANSE 1440 Telehandler
13.5m/44.29 ft
Max Lifting Height
4,000kg
Rated Load Capacity
81 kw
Max Engine Power
4wd
Drive System
Powerful and versatile, designed for high-altitude material handling, stacking, and multi-site operations. Supports quick-attach forks, platforms, and grapples for multi-functional use, ensuring efficiency and safety on challenging job sites.
Share This Product
Multi-stage Telescopic Structure
Constructed with high-strength alloy steel, the multi-stage telescopic boom allows for precise length adjustment, seamlessly switching between narrow spaces and open work areas, significantly improving space utilization. The boom has undergone rigorous stress testing and structural optimization to ensure stability and safety when handling heavy materials.
Panoramic Safety Cab
The roll cage-like frame provides a strong safety barrier for the operator under extreme conditions. An ultra-wide panoramic view eliminates blind spots typical of traditional cabs; the driver’s seat features a multi-function steering wheel with integrated hydraulic control levers; and a standard floating shock-absorbing seat effectively cushions bumps and impacts.
Steering Wheel and Control Panel
Ergonomic steering wheel; high-definition intelligent display screen supporting fault diagnosis and parameter adjustment; integrated button area with a clear layout on the right side panel.
Engine Assembly
High-power diesel engine, high-efficiency intake air filtration, enhanced cooling system, and precision fuel filtration ensure a clean fuel supply and improve engine operational stability.
Heavy-Duty Hydraulic Outriggers
Wide-width support design with a large outrigger span and wide ground contact area, preventing tipping risks and adapting to uneven ground conditions. Anti-slip and wear-resistant outrigger pads: The bottom is equipped with thickened, wear-resistant, and anti-slip pads.
Telescopic Boom Assembly
Precision hydraulic system, with a top-integrated high-pressure hydraulic valve block and wear-resistant oil pipes. The pipes are equipped with wear-resistant sleeves, ensuring secure connections and precise hydraulic response, guaranteeing smooth and seamless boom extension, retraction, and lifting.
The VANSE 1440 14-meter telescopic handler is a multi-functional heavy-duty equipment designed for medium-to-high altitude work scenarios. With a core competency of a 4-ton rated load and a maximum lifting height of 14 meters, it is suitable for various applications such as material handling in high-rise buildings, high-altitude equipment maintenance, hay stacking in large farms, and auxiliary operations in mines. The machine features a long wheelbase design for a lower center of gravity, and is equipped with front hydraulic outriggers and a longitudinal self-leveling function, allowing it to automatically level on uneven ground, ensuring safety during high-altitude operations. It supports quick changes of various attachments such as forks, work platforms, and grapples, enabling a single machine to perform multiple functions including forklift operation, lifting, and high-altitude work, significantly reducing equipment investment costs.
| Capability | |
| Parameter | Value |
| Max Load Capacity | 4000 kg / 8818 lb |
| Max Lifting Height | 13.5 m / 44.29 ft |
| Max Outreach | 9.5 m / 31.17 ft |
| Breakout Force (Bucket) | 7500 daN / 16861 lbf |
| Lift Capacity at Max Height | 3000 kg / 6614 lb |
| Lift Capacity at Max Reach | 1650 kg / 3638 lb |

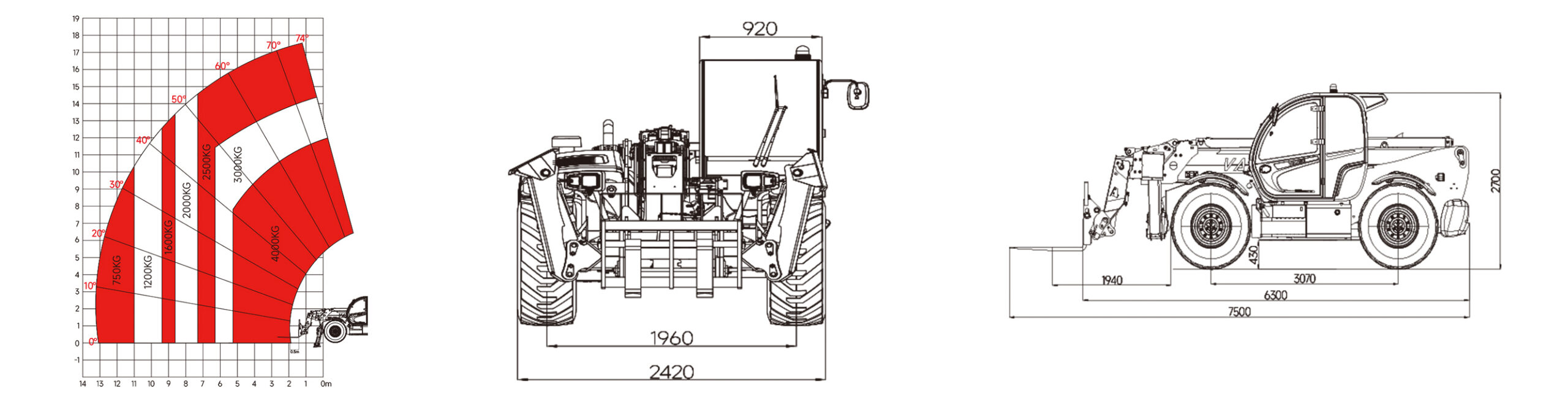

| Dimension | |
| Parameter | Value |
| Overall Length | 6.08 m / 19.95 ft |
| Overall Width | 2.42 m / 7.94 ft |
| Overall Height | 2.7 m / 8.86 ft |
| Wheelbase | 3.07 m / 10.07 ft |
| Front Track | 1.96 m / 6.43 ft |
| Ground Clearance | 0.43 m / 16.93 in |
| Tilt Angle | ±9° |
| Turning Radius | 4.2 m / 13.78 ft |
| Tire Specification | 440/80 R24 |
| Overall Cab Width | 0.98 m/3.22 ft |
| Performance (Cycle Times) | |
| Action | Time |
| Boom Lifting | 11 s – 17.5 s |
| Boom Lowering | 16 s – 23.5 s |
| Boom Extension | 15 s – 22.5 s |
| Boom Retraction | 11 s – 18 s |
| Engine Options | |||
| Engine Brand | Cummins | Perkins | Yuchai |
| Engine Model | QSB3.9 – C110 | 904J-E36TA | YCF36100-S500 |
| Capacity of Cylinders | 3.9 L(238 cid) | 3.62L(221 cid) | 3.62L(221 cid) |
| Cooling Method | Water Cooling | Water Cooling | Water Cooling |
| Max Power | 81kw/2200r (109 hp/2200r) | 74.4kw/2400r (100 hp/2400r) | 74kw/2200r(99 hp/2200r) |
| Max Torque | 480 Nm(354 lb-ft) | 430 Nm(317 lb-ft) | 420 Nm (310 lb-ft) |
| Transmission & Drive | |
| Parameter | Specification |
| Travel Speed | 0-30 km/h / 0-19 mph |
| Gradeability | 30° |
| Drive Mode | 4WD |
| Number of Gears (forward/reverse) | 2/2 |
| Parking Brake | Automatic Parking |
| Service Brake | Wet Brake |
| Tank Capacities | |
| Fluid | Capacity |
| Fuel | 140 L / 37.0 US gal |
| Hydraulic Oil | 180 L / 47.6 US gal |
| Fork Specifications | |
| Parameter | Specification |
| Dimensions (LxWxSection) | 1200x150x50 mm (47.24″x5.91″x1.97″) |
| Tilt-Up Angle | 16° |
| Tilt-Down Angle | 117° |
| Weight | |
| Parameter | Value |
| Machine Weight (with forks) | 12200 kg/26896 lb |
Product Category
Real-World Applications, Proven Performance
Vanse machinery excels in diverse construction environments worldwide. Explore how our machines deliver reliable performance across industries, countries, and challenging jobsite conditions.
Recognized Strength. Certified Quality.

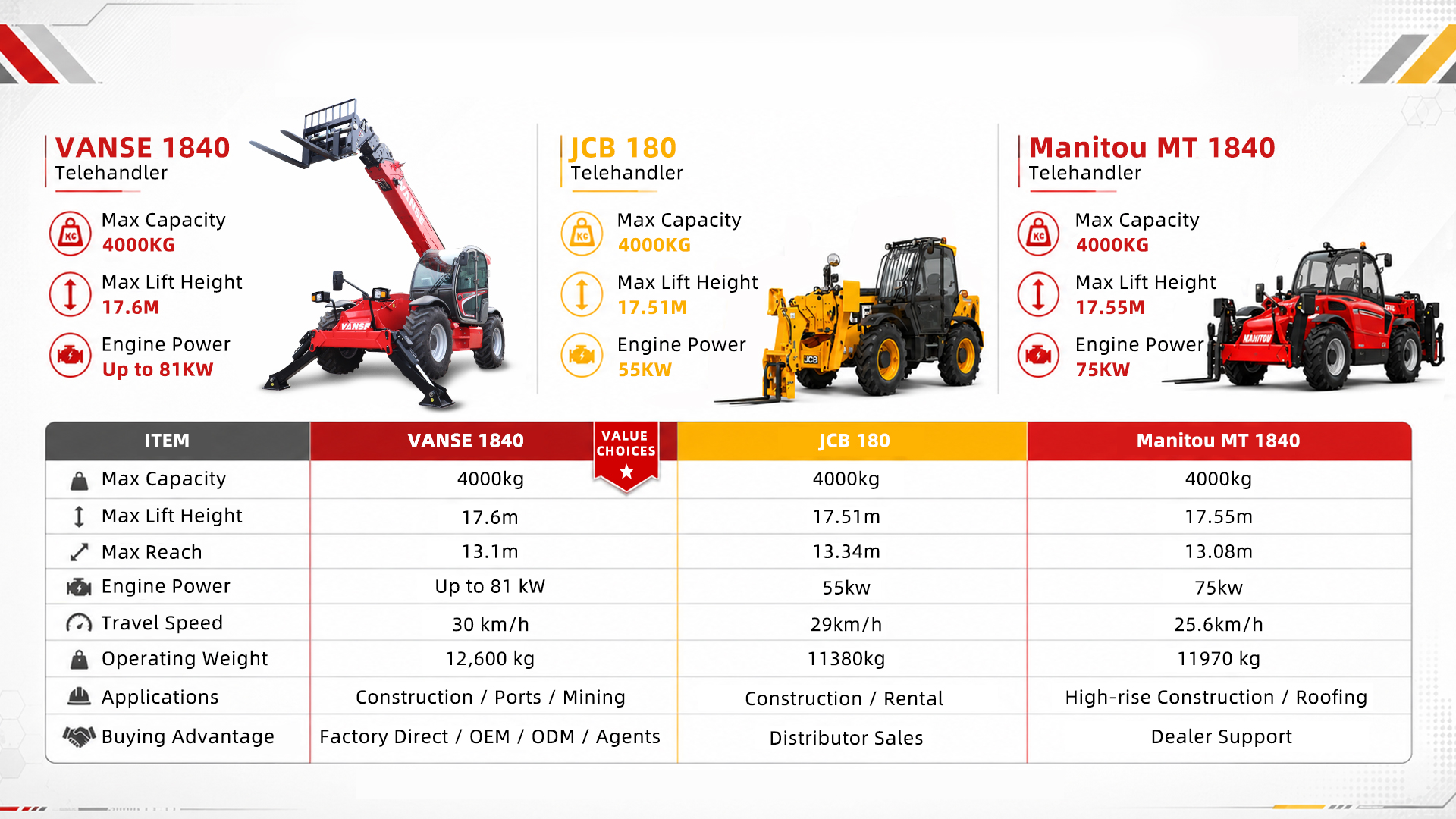

Product Comparison Table
