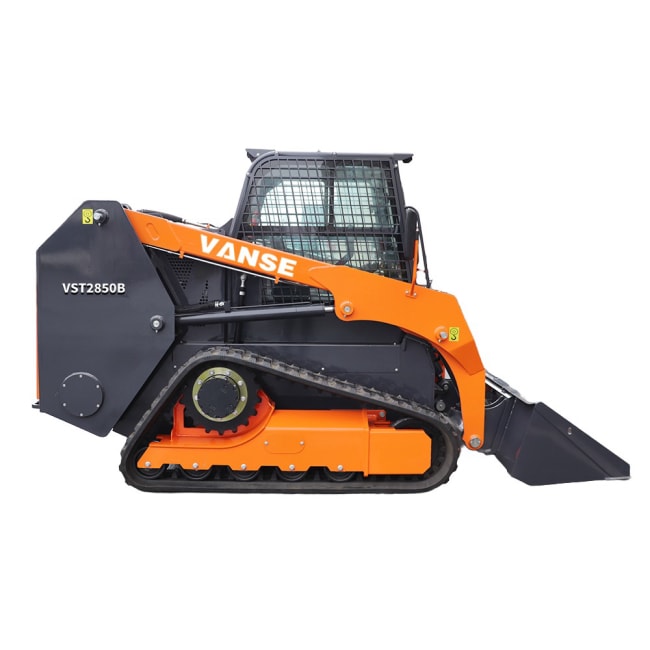

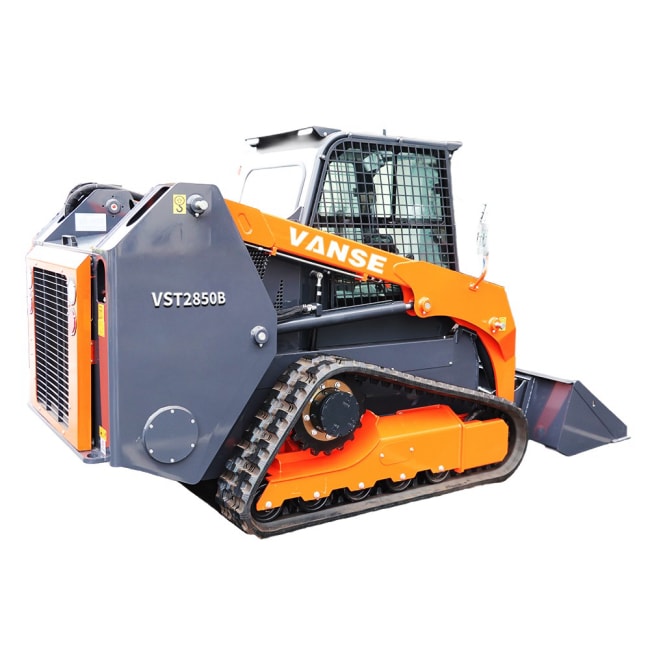

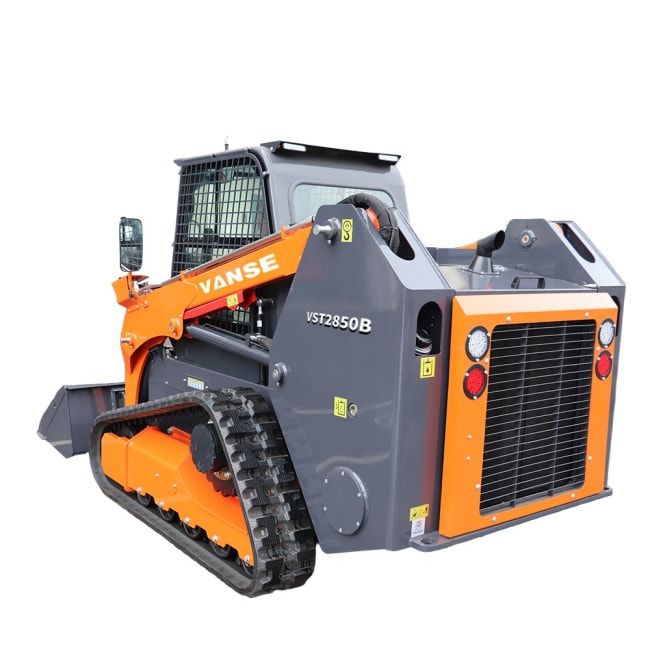

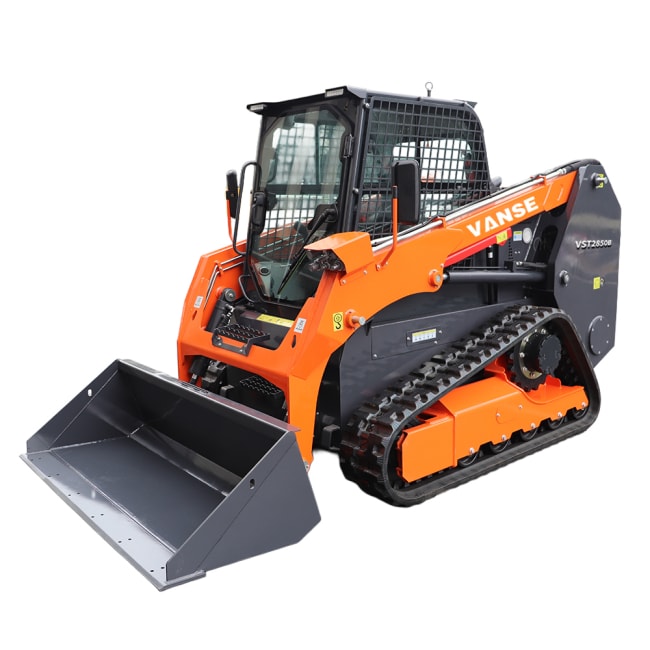

VST2850B Skid Steer Loader
4390mm
Working Height
3220mm
Bottom of Bucket Height
3805mm
Overall Length
38°
Dump Angle
The core applications of large skid steer loaders cover multiple fields, including municipal maintenance, building construction, mining operations, and agricultural planting. They are multi-functional engineering equipment that combines practicality and economy.
Share This Product

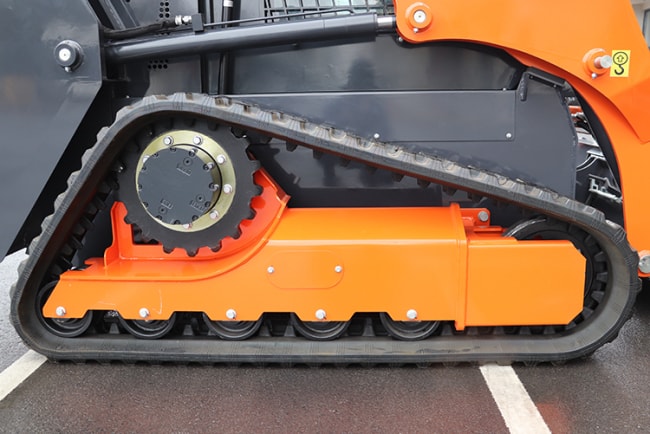

Tracked Walking System
All-terrain rubber tracks with deep treads for strong grip, low-pressure protection against road damage, and non-slip performance in muddy/sand/gravel conditions. Large alloy steel drive wheels ensure stable power transmission and are impact-resistant and wear-resistant.

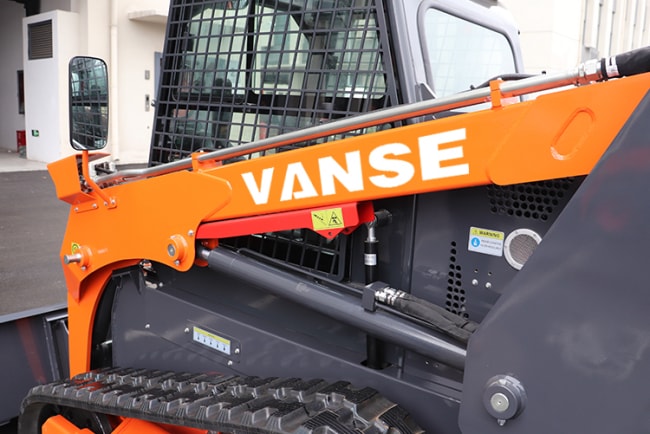

Safety Net Cab
Safety net cab protects against falling objects, ensuring operational safety; provides excellent visibility for observing the work environment.

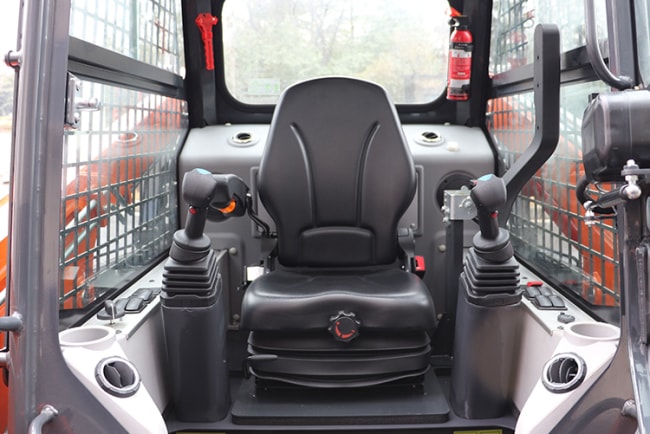

Ergonomic Seat
Ergonomic seat with armrests reduces fatigue during extended work periods; side speakers enhance working comfort.

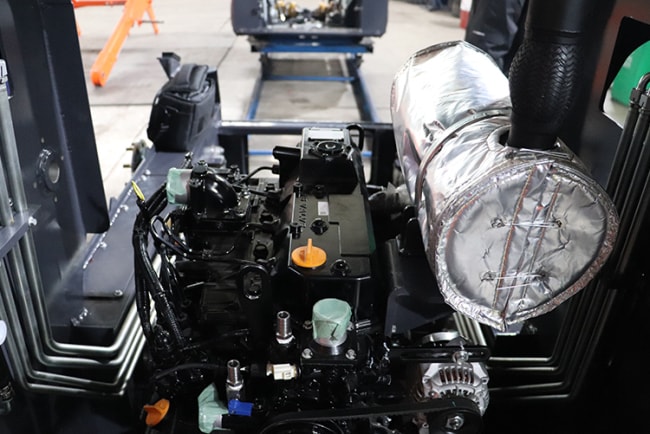

Powertrain
Equipped with a compact diesel engine, featuring a compact layout, neatly arranged piping and wiring harnesses for easy maintenance and repair; the heat-insulating aluminum foil wrapping layer effectively blocks high temperatures, protecting surrounding components.
Quick-Change Adapter
Attachments are quickly secured using pins and locking mechanisms, allowing for tool-free attachment changes in minutes and improving operational flexibility.

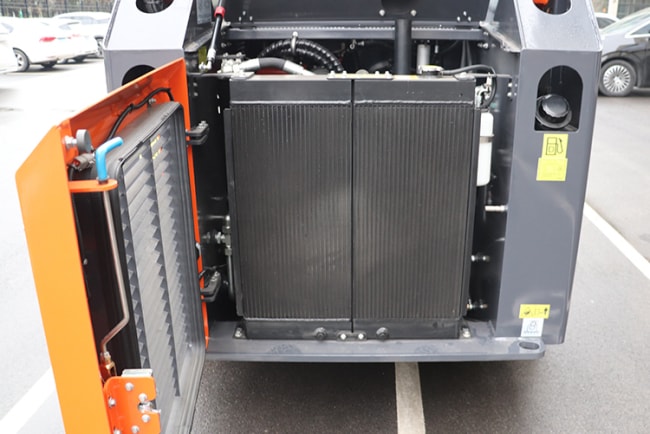

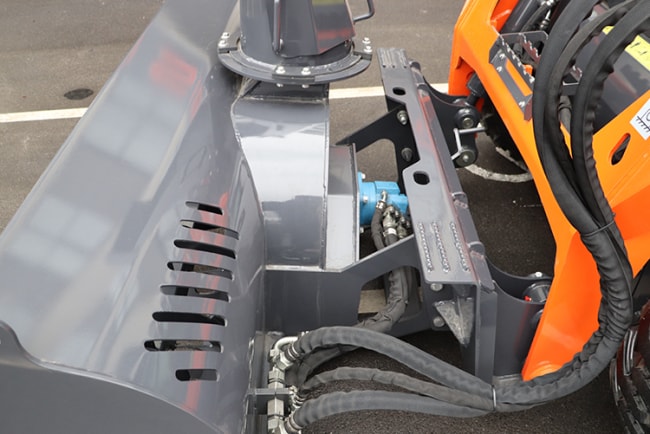

Heat Dissipation and Protection Design
Long, strip-shaped heat dissipation channels are used to dissipate the heat generated during the operation of the hydraulic motor; at the same time, the housing encloses the hydraulic lines, providing protection against impacts.
| VST2850B | |
| Working Height – Full Lift A (mm) | 4390 |
| Bottom of Bucket Height – Full Lift C (mm) | 3220 |
| Overall Length – With Bucket E (mm) | 3805 |
| Dump Angle – Full Lift G (°) | 38 |
| Dump Distance – Full Lift J (mm) | 470 |
| Tilt Angle L (°) | 24 |
| Track Center Distance N (mm) | 1600 |
| Departure Angle Q (°) | 30 |
| Overall Width – Without Bucket S (mm) | 1920 |
| Turning Radius – With Bucket X (mm) | 2400 |
| Turning Radius – Rear Z (mm) | 1800 |
| Hinge Height – Full Lift B (mm) | 3440 |
| Roof Guard Height D (mm) | 2130 |
| Overall Length – Without Bucket F (mm) | 3035 |
| Dump Height – Full Lift H (mm) | 2688 |
| Tilt Angle – Full Lift K (°) | 96 |
| Track Ground Contact Length M (mm) | 1600 |
| Ground Clearance P (mm) | 225 |
| Bucket Width R (mm) | 1880 |
| Rear Length W (mm) | 815 |
| Turning Radius – Without Bucket Y (mm) | 1550 |
