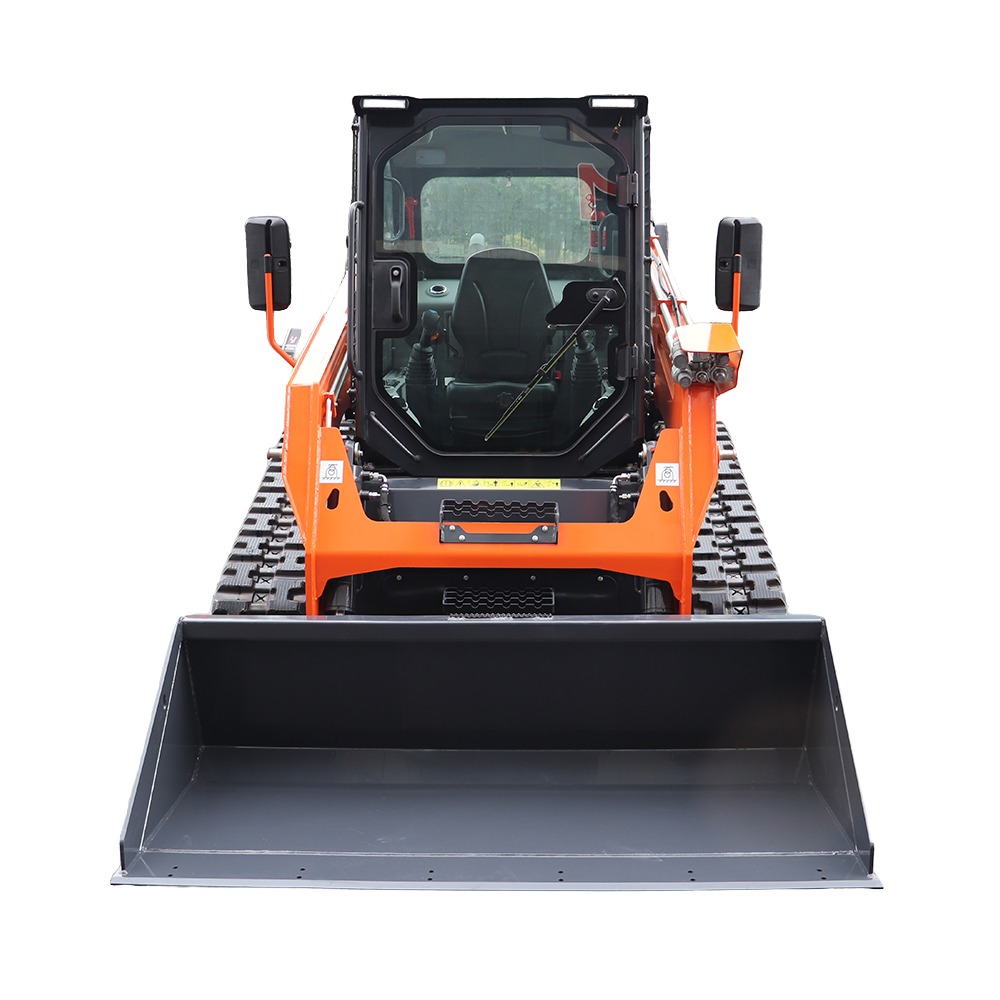

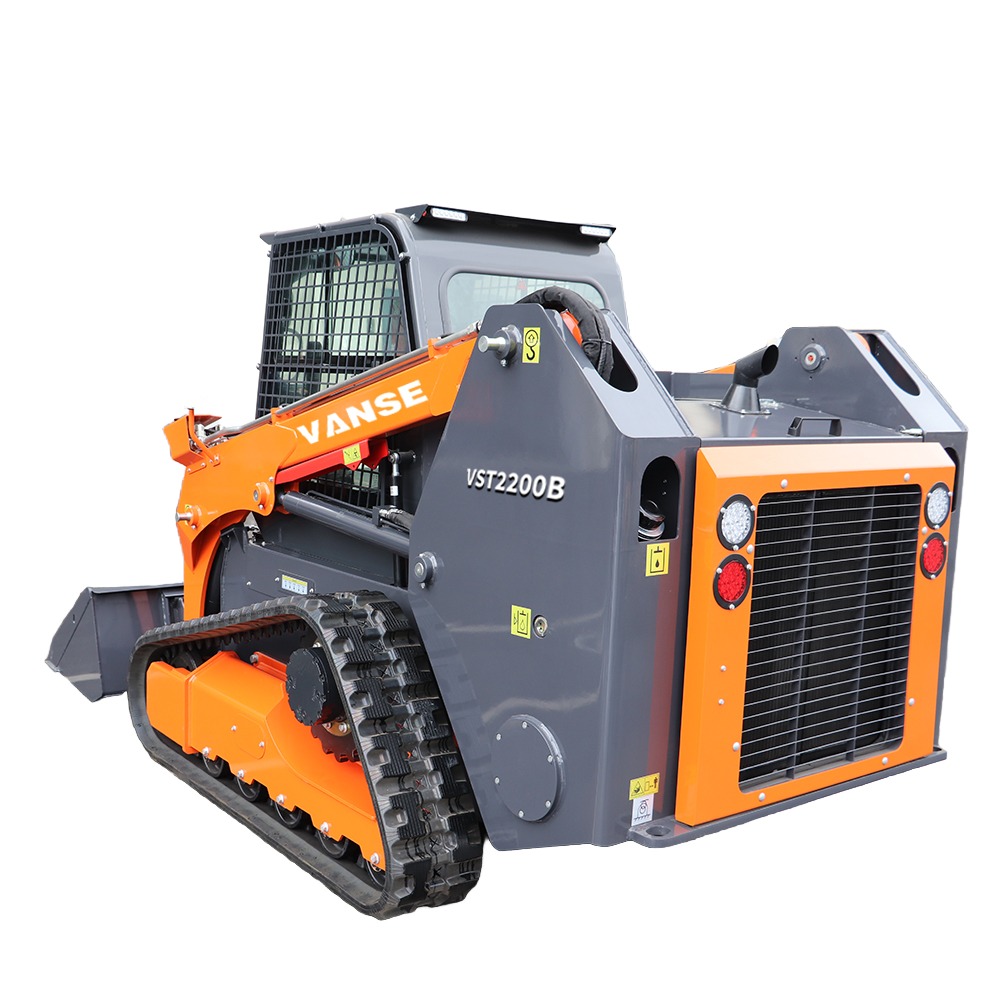

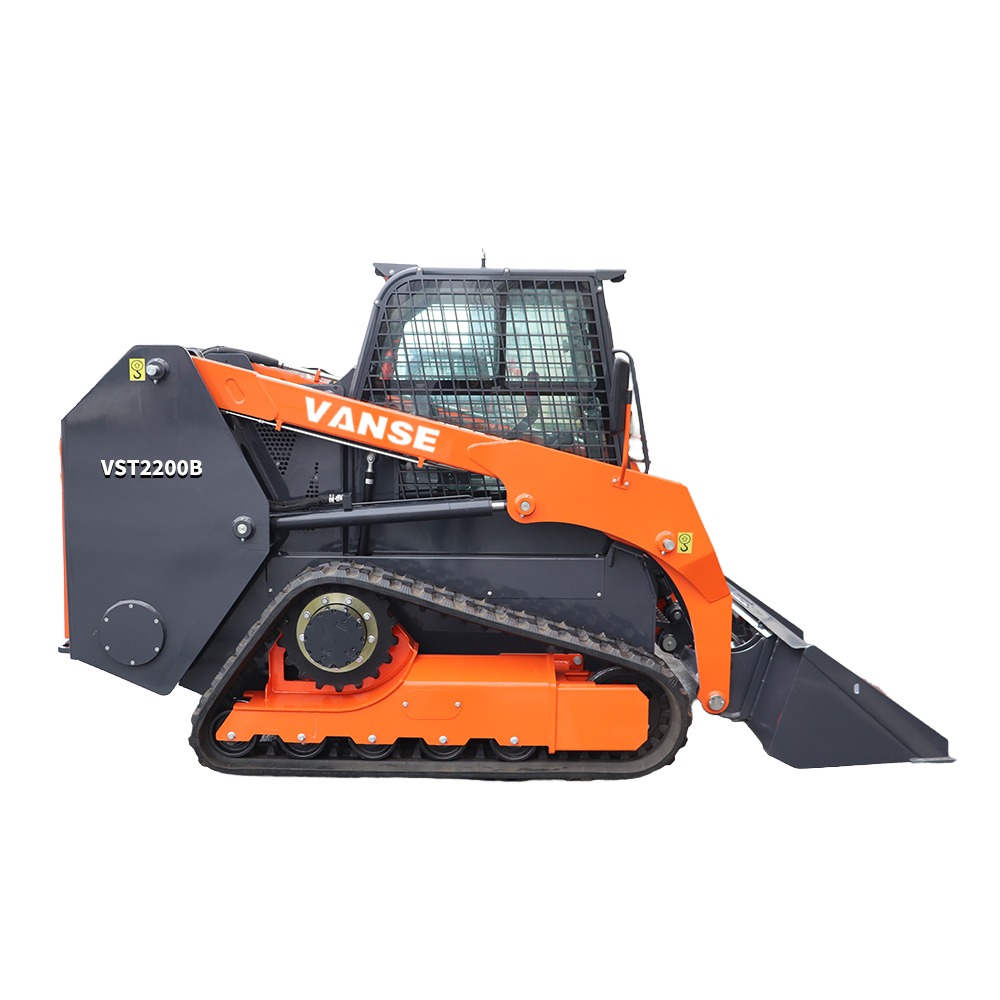

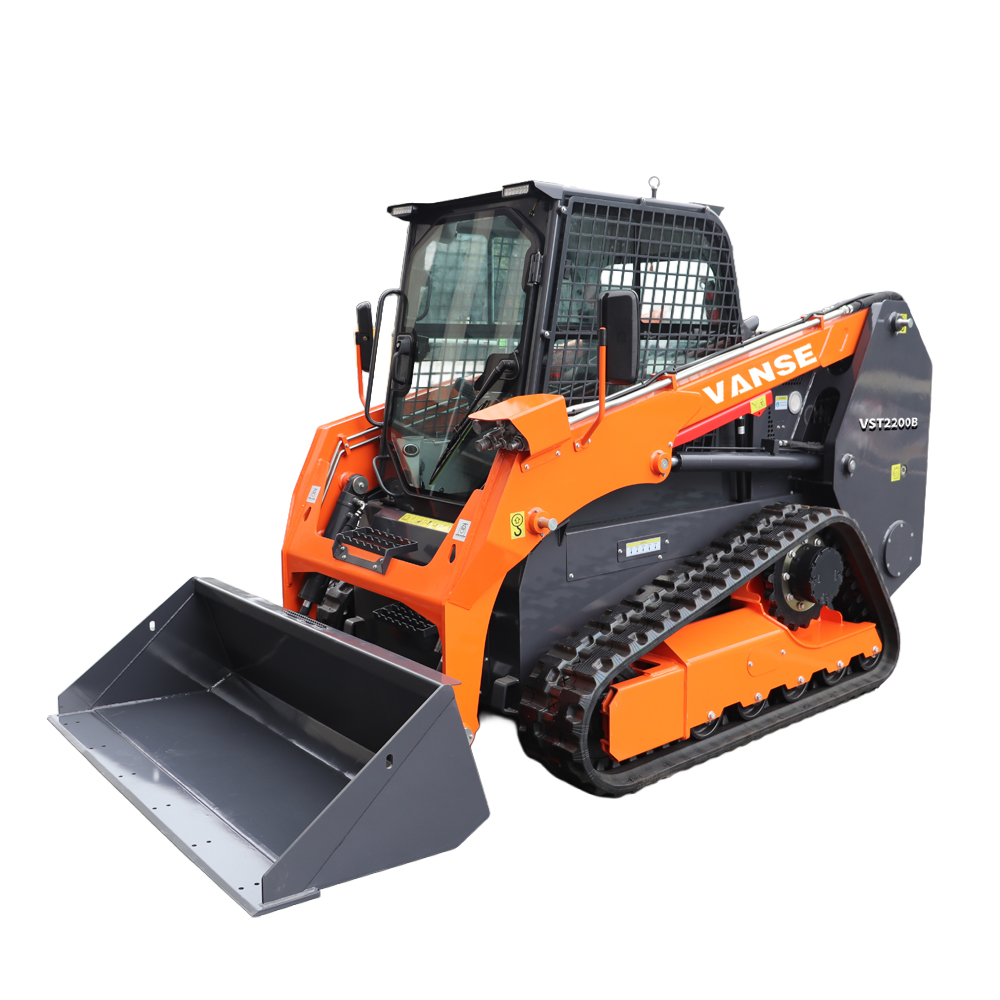

VST2200B Skid Steer Loader
4020mm
Working Height
2870mm
Bottom of Bucket Height
3800mm
Overall Length
46°
Dump Angle
Multi-functional adaptability is a prominent feature of large skid steer loaders. Through internationally recognized quick-change devices, dozens of attachments can be quickly changed, enabling multiple uses and significantly expanding application scenarios.
Share This Product

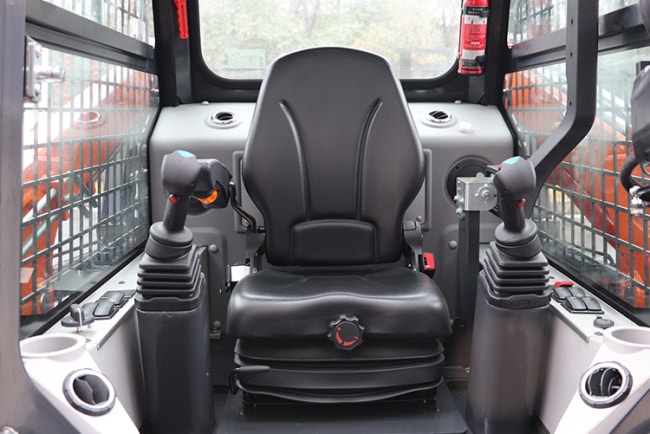

Ergonomic Seat
Ergonomic seat with armrests reduces fatigue during extended work periods; side speakers enhance working comfort.

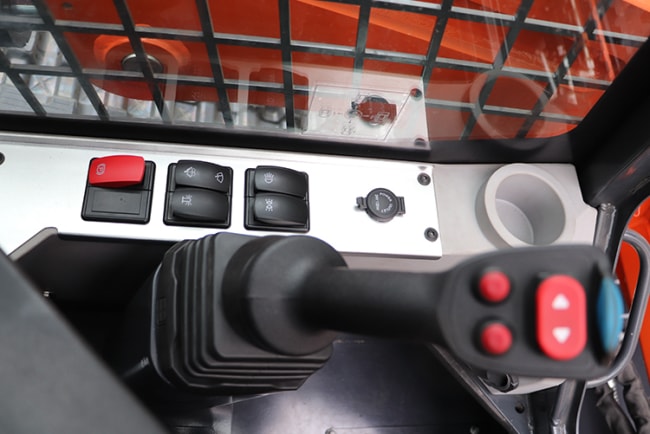

Control System
Multi-button layout allows for precise control of walking, lifting, and tilting movements, providing intuitive and efficient operation.
Tracked Walking System
All-terrain rubber tracks with deep treads for strong grip, low-pressure protection against road damage, and non-slip performance in muddy/sand/gravel conditions. Large alloy steel drive wheels ensure stable power transmission and are impact-resistant and wear-resistant.

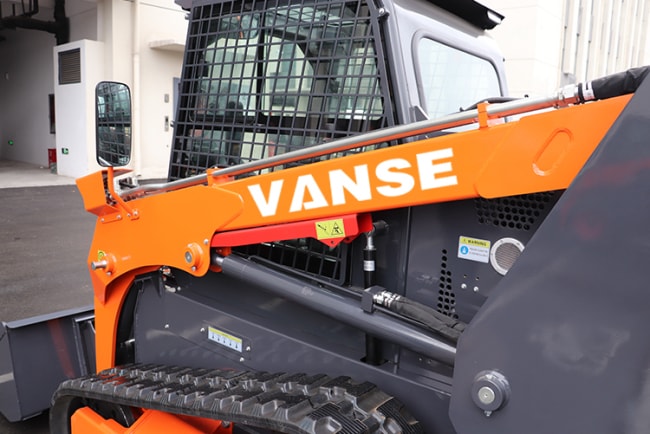

Hydraulic Boom Structure
Hydraulic cylinder and boom structure provide strong load-bearing capacity and stable, reliable operation.

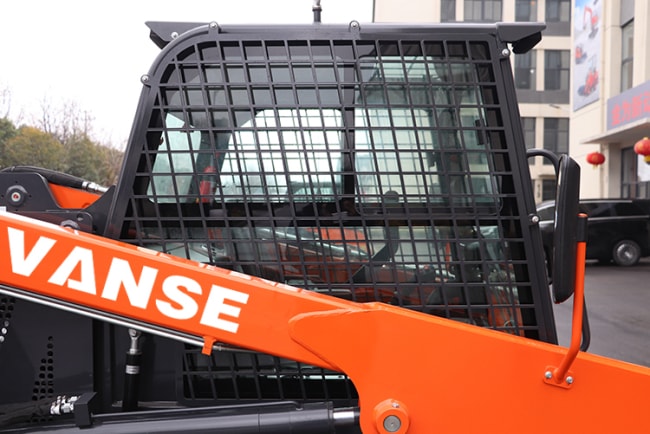

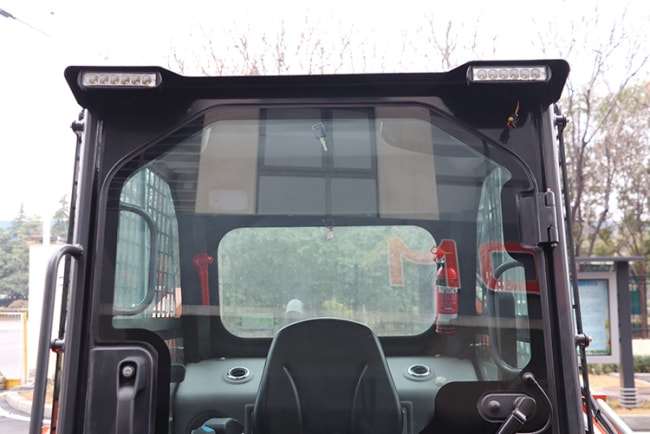

Safety Net Cab
Safety net cab protects against falling objects, ensuring operational safety; provides excellent visibility for observing the work environment.
Ergonomic Seat
Ergonomic seat with armrests reduces fatigue during extended work periods; side speakers enhance working comfort.
| VST2200B | |
| Working Height – Full Lift A (mm) | 4020 |
| Bottom of Bucket Height – Full Lift C (mm) | 2870 |
| Overall Length – With Bucket E (mm) | 3800 |
| Dump Angle – Full Lift G (°) | 46 |
| Dump Height – Full Lift J (mm) | 570 |
| Tilt Angle L (°) | 24 |
| Track Center Distance N (mm) | 1600 |
| Departure Angle Q (°) | 30 |
| Overall Width – Without Bucket S (mm) | 1920 |
| Turning Radius – With Bucket X (mm) | 2400 |
| Turning Radius – Rear Z (mm) | 1750 |
| Hinge Height – Full Lift B (mm) | 3135 |
| Roof Guard Height D (mm) | 2140 |
| Overall Length – Without Bucket F (mm) | 3030 |
| Dump Height – Full Lift H (mm) | 2275 |
| Tilt Angle – Full Lift K (°) | 88 |
| Track Ground Contact Length M (mm) | 1600 |
| Ground Clearance P (mm) | 230 |
| Bucket Width R (mm) | 1880 |
| Rear Length W (mm) | 810 |
| Turning Radius – Without Bucket Y (mm) | 1550 |
