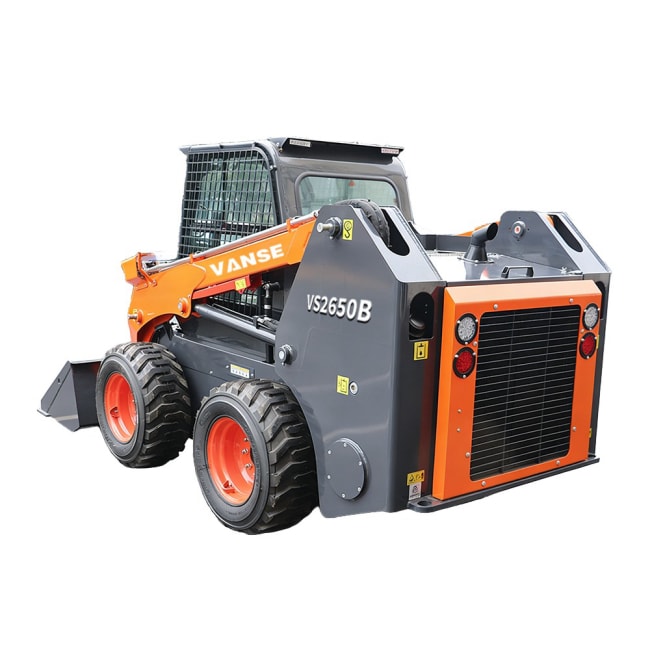

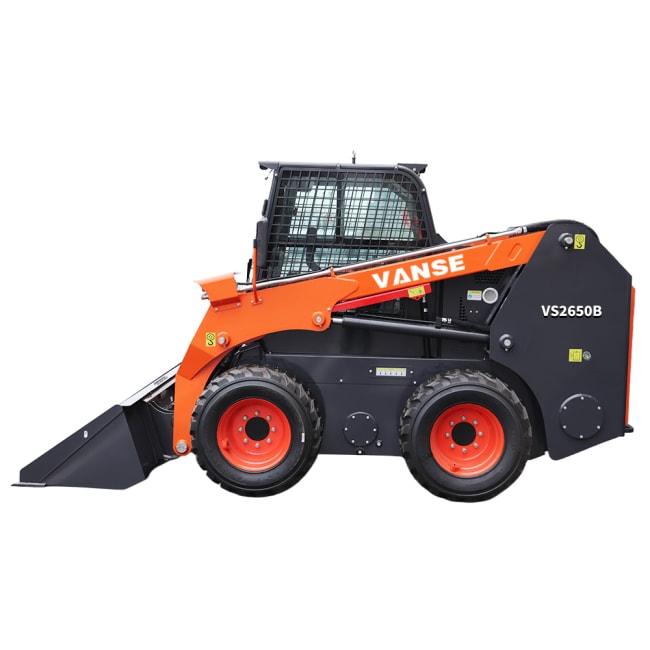

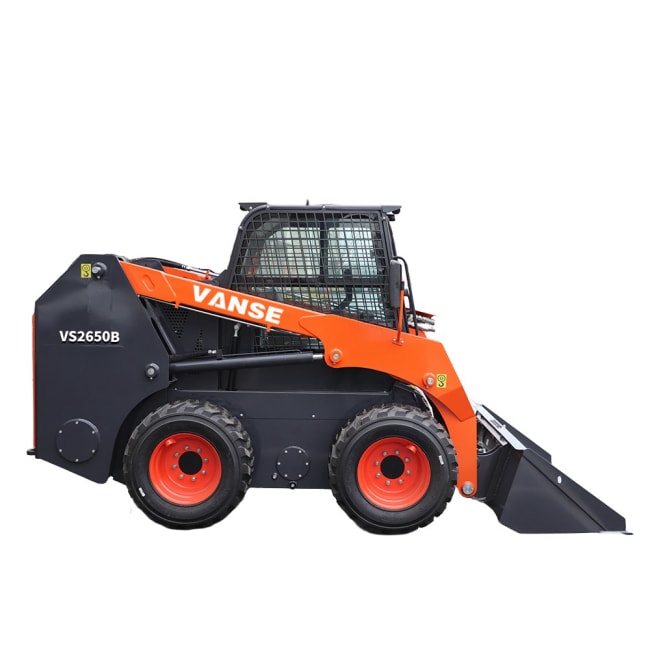

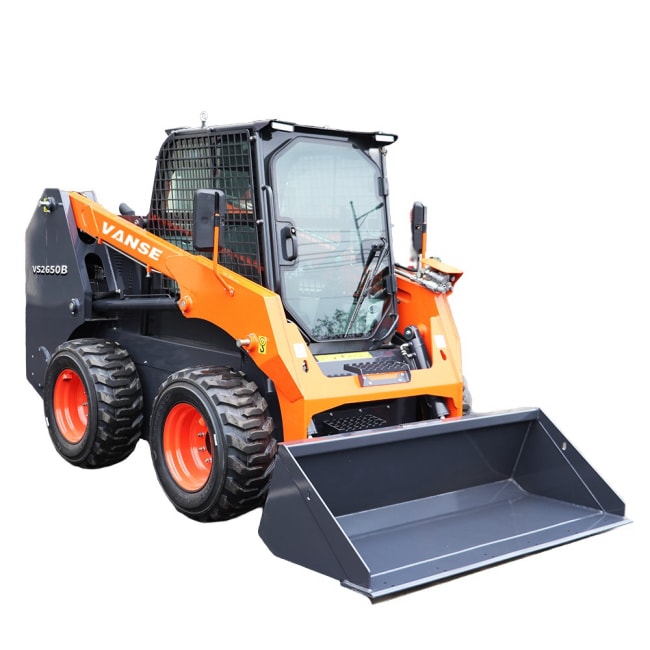

VS2650B Skid Steer Loader
4354mm
Working Height
3200mm
Bottom of Bucket Height
3810mm
Overall Length
40°
Dump Angle
Powerful performance and energy efficiency are among the core advantages of large skid steer loaders. The equipment is equipped with a high-powered engine from a well-known brand, ensuring complete fuel combustion. This improves power output while reducing fuel consumption and operating noise, balancing economy and environmental friendliness.
Share This Product

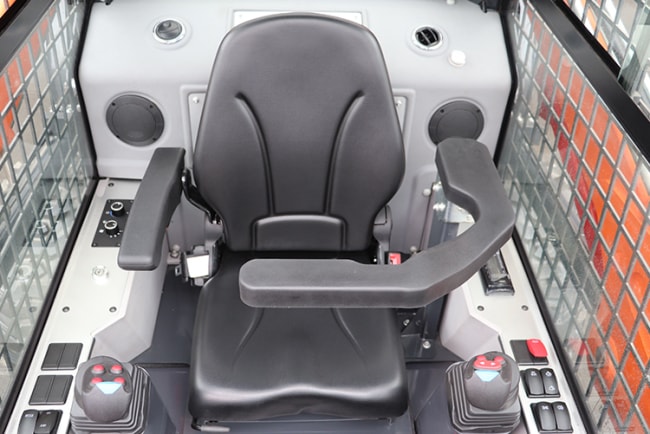

Ergonomic Seat
Ergonomic seat with armrests reduces fatigue during extended work periods; side speakers enhance working comfort.

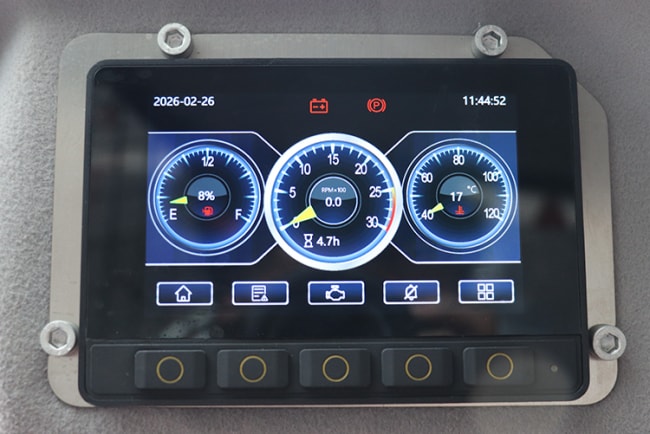

Intelligent Display Screen
Metal frame + screw fastening, resistant to bumps and dust, suitable for harsh operating environments of construction machinery.

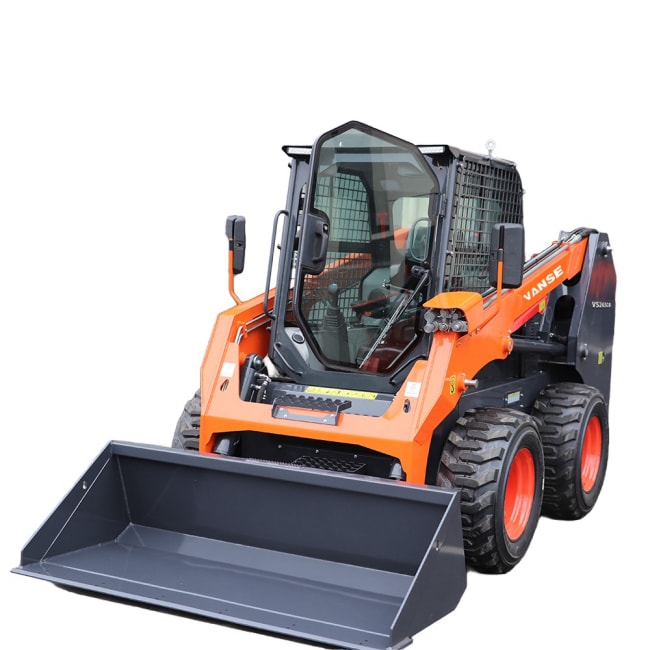

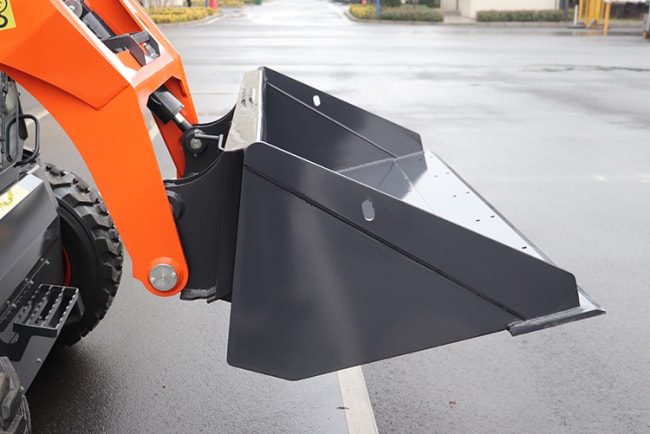

Large-capacity Standard Bucket
Large-capacity standard bucket made of wear-resistant steel plates offers high loading efficiency and is suitable for handling various materials.

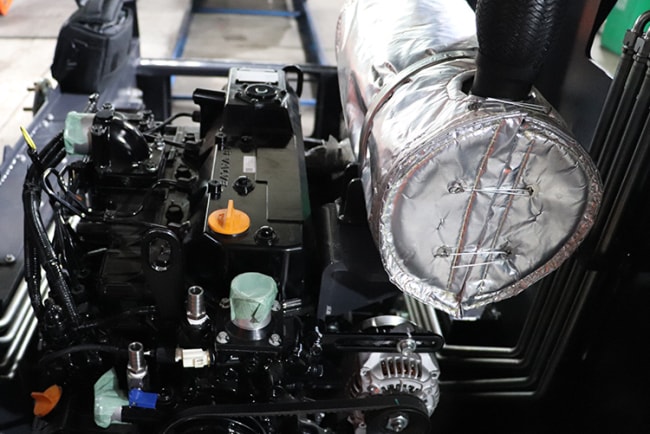

Powertrain
Equipped with a compact diesel engine, featuring a compact layout, neatly arranged piping and wiring harnesses for easy maintenance and repair; the heat-insulating aluminum foil wrapping layer effectively blocks high temperatures, protecting surrounding components.

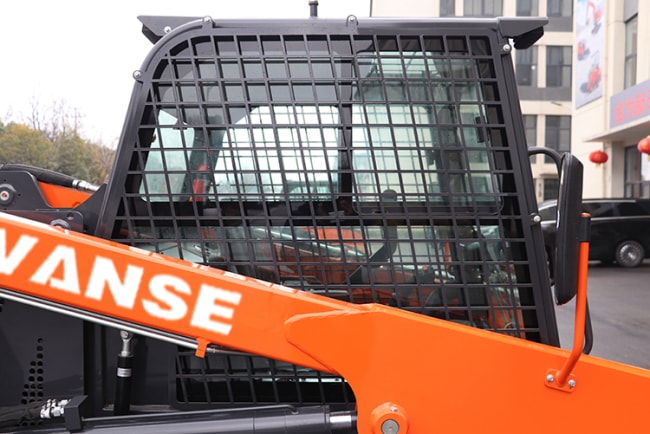

Safety Net Cab
Safety net cab protects against falling objects, ensuring operational safety; provides excellent visibility for observing the work environment.

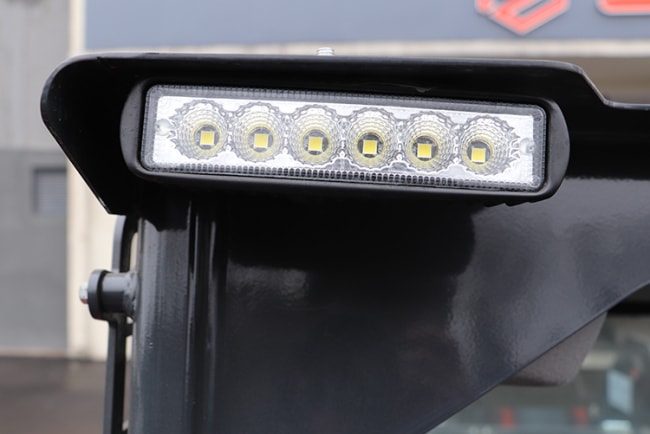

LED Work Light
High-brightness 6-core LED bulbs provide concentrated, penetrating light for clear visibility at night or in inclement weather.Sealed housing + anti-fog lens, IP67 protection rating, suitable for complex working conditions such as muddy, rainy, and snowy construction sites.
| VS2650B | |
| Working Height – Full Lift A (mm) | 4354 |
| Bottom of Bucket Height – Full Lift C (mm) | 3200 |
| Overall Length – With Bucket E (mm) | 3810 |
| Dump Angle – Full Lift G (°) | 40 |
| Dump Distance – Full Lift J (mm) | 392 |
| Tilt Angle L (°) | 25 |
| Track Width N (mm) | 1522 |
| Departure Angle Q (°) | 20 |
| Overall Width – Without Bucket S (mm) | 1852 |
| Turning Radius – With Bucket X (mm) | 2310 |
| Turning Radius – Rear Z (mm) | 1850 |
| Hinge Height – Full Lift B (mm) | 3404 |
| Roll Bar Height D (mm) | 2120 |
| Overall Length – Without Bucket F (mm) | 3040 |
| Dump Height – Full Lift H (mm) | 2664 |
| Tilt Angle – Full Lift K (°) | 95 |
| Wheelbase M (mm) | 1283 |
| Ground Clearance P (mm) | 190 |
| Bucket Width R (mm) | 1880 |
| Rear Length W (mm) | 1100 |
