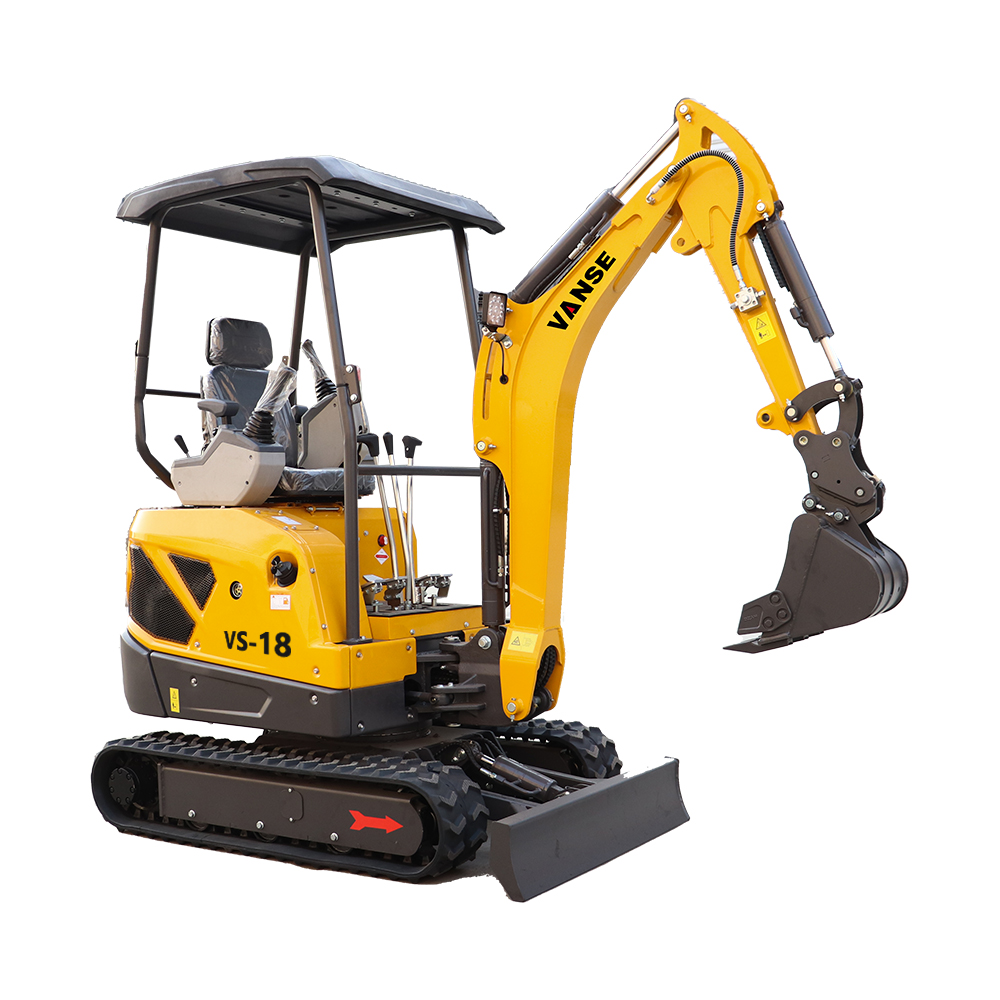

VS-18 Mini Excavator for Home
1,800 kg
Operating Weight
0.04 m³
Bucket Capacity
11.2 kW
Max Engine Power
16 kN
Maximum Digging Force
Compact 1.8-ton mini excavator designed for tight spaces and versatile operations. Efficient and beginner-friendly, supports multiple attachments, ideal for small-scale construction, landscaping, farmland trenching, and municipal projects.
Share This Product

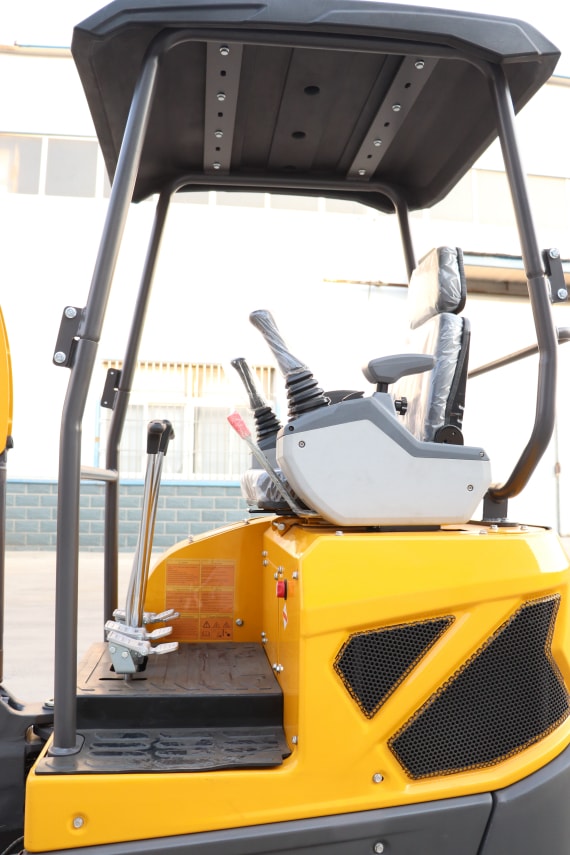

Open Operating Platform
The cab-less design provides unobstructed visibility, allowing for clear observation of the work environment, flexible relocation, and easier maintenance.

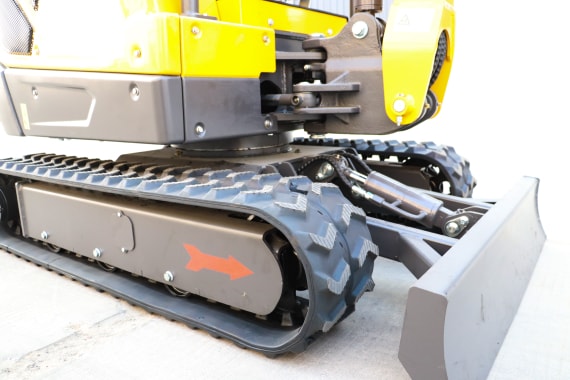

Compact Body Design
The compact and agile body, with narrow tracks, allows easy access to confined spaces such as orchards, greenhouses, and yards, facilitating easy relocation and transport.

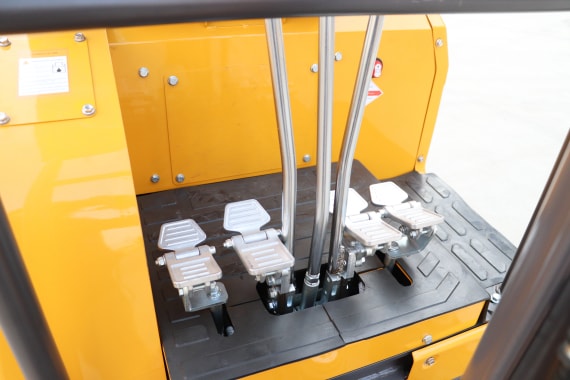

Anti-Slip and Wear-Resistant Footrests
Thickened anti-slip leather footpads with a clear texture effectively prevent foot slippage during operation; the four pedals are clearly laid out, corresponding to walking, turning, and other movements, providing a light feel and sensitive response.

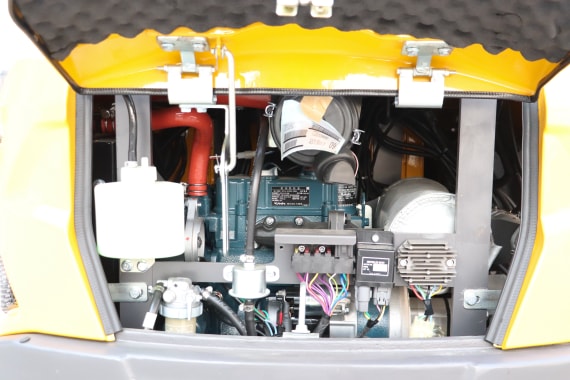

Brand Power Core
Equipped with a high-power engine, customizable; modular electronic control unit with clear layout, neat and orderly wiring harness, stable signal transmission, convenient fault diagnosis, and significantly reduced maintenance costs.
VS-18 mini excavator focuses on medium-short distance operation scenarios, with the core design concept of “strong power output + high operation stability”. It accurately balances body size and operation performance, not only having the advantage of flexible transfer of small equipment, but also having the operation capacity close to medium-tonnage models. Equipped with a high-power engine and a wide track system, the whole machine can be widely used in various scenarios such as municipal road renovation, landscaping transplanting, small-scale earth excavation, pipeline laying and community supporting projects. It can easily cope with complex terrain and diverse construction needs, balancing operation efficiency and operation stability.
| Parameter | Specification |
| Machine Weight | 1800 kg (3968 lb) |
| Bucket Capacity | 0.04m³ |
| Engine | Kubota |
| Rated Power | 11.2 kW / 2400 rpm |
| Walking Speed | 0 ~ 2.2 ~ 4.3 km/h |
| Maximum Rotation Speed | 9.5 r/min |
| Gradeability | 30°(58%) |
| Ground Pressure | 29 kPa |
| Bucket Digging Force | 16 kN |
| Digging Force of Bucket Arm | 9.5 kN |
| Total Length | 3575 mm (11.73 ft) |
| Ground Length (Transportation) | 2440 mm (8.01 ft) |
| Overall Height (to top of boom) | 1105 mm (3.63 ft) |
| Overall Width | 990 mm (3.25 ft) / 1300 mm (4.27 ft) |
| Overall Height (to the top of the cab) | 2405 mm (7.89 ft) |
| Counterweight Ground Clearance | 460 mm (1.51 ft) |
| Minimum Ground Clearance | 145 mm (0.48 ft) |
| Tail Turning Radius | 650 mm (2.13 ft) |
| Wheelbase | 1230 mm (4.04 ft) |
| Track Length | 1593 mm (5.23 ft) |
| Gauge | 760 mm (2.49 ft) / 1070 mm (3.51 ft) |
| Track Width | 990 mm (3.25 ft) / 1300 mm (4.27 ft) |
| Standard Track Shoe Width | 230 mm (0.76 ft) |
| Width Of Rotary Platform | 990 mm (3.25 ft) |
| Distance From Rotation Center to Rear End | 650 mm (2.13 ft) |
| Bucket Overall Width | 485 mm (1.59 ft) |
| Boom Right Offset | 510 mm (1.67 ft) |
| Boom Left Offset | 345 mm (1.13 ft) |
