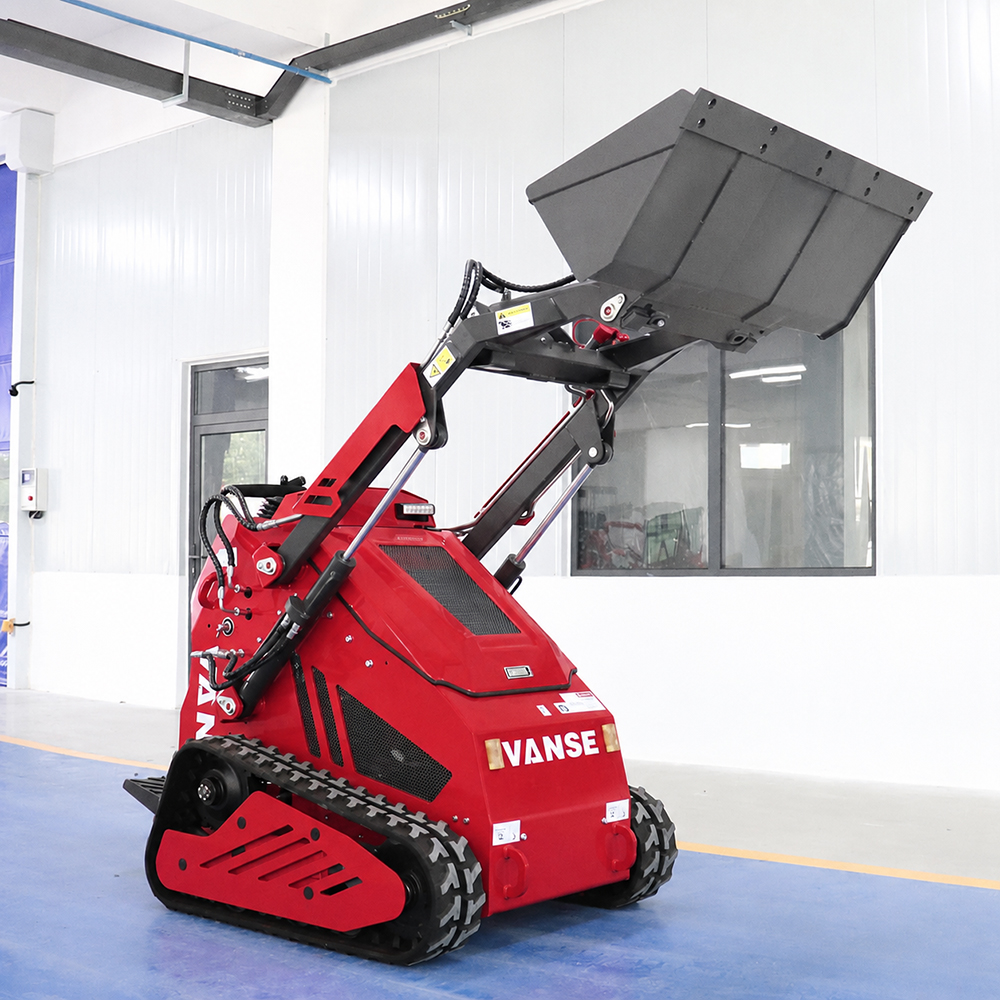

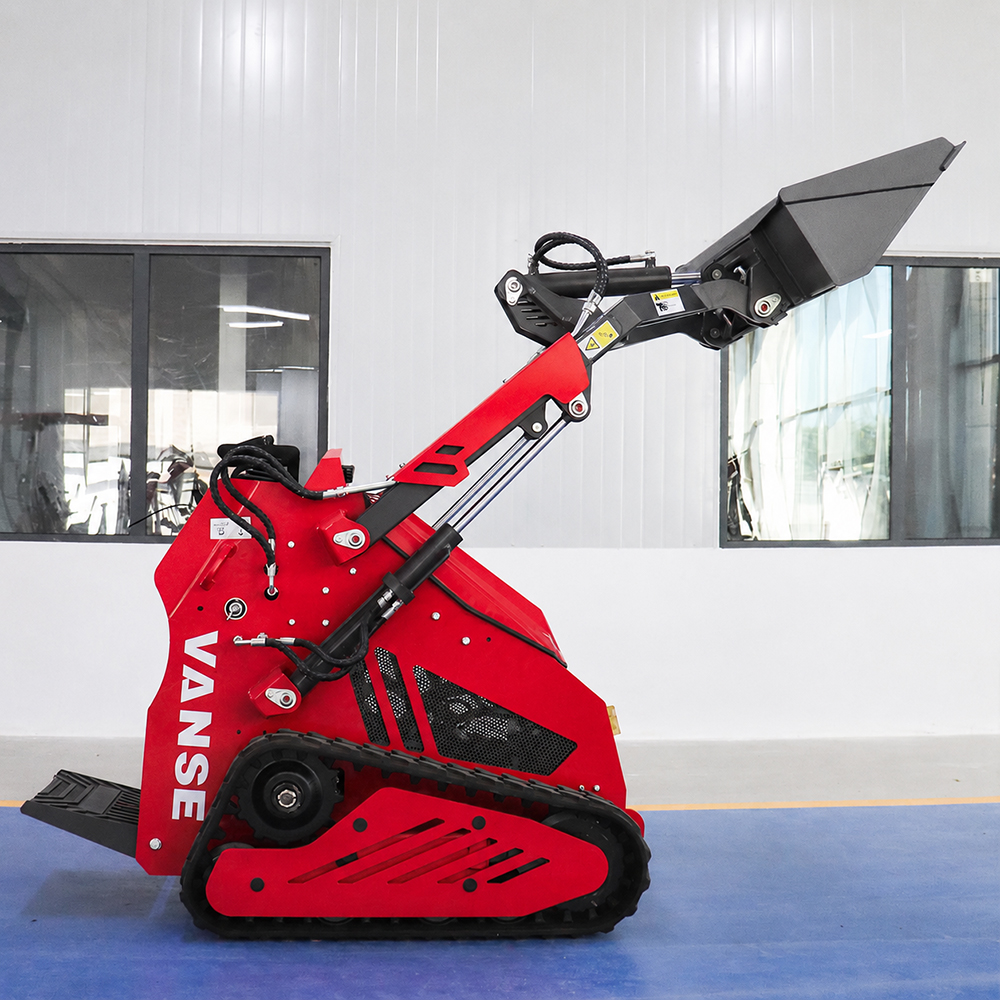

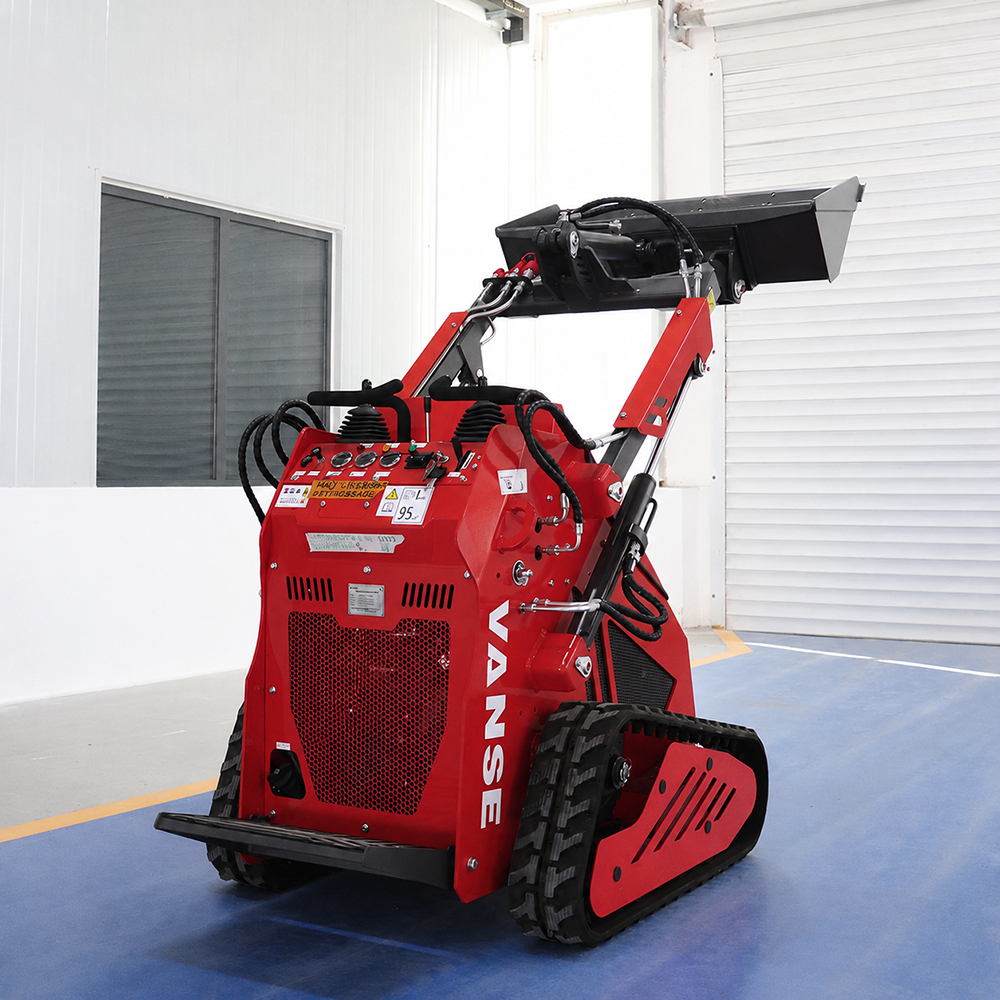

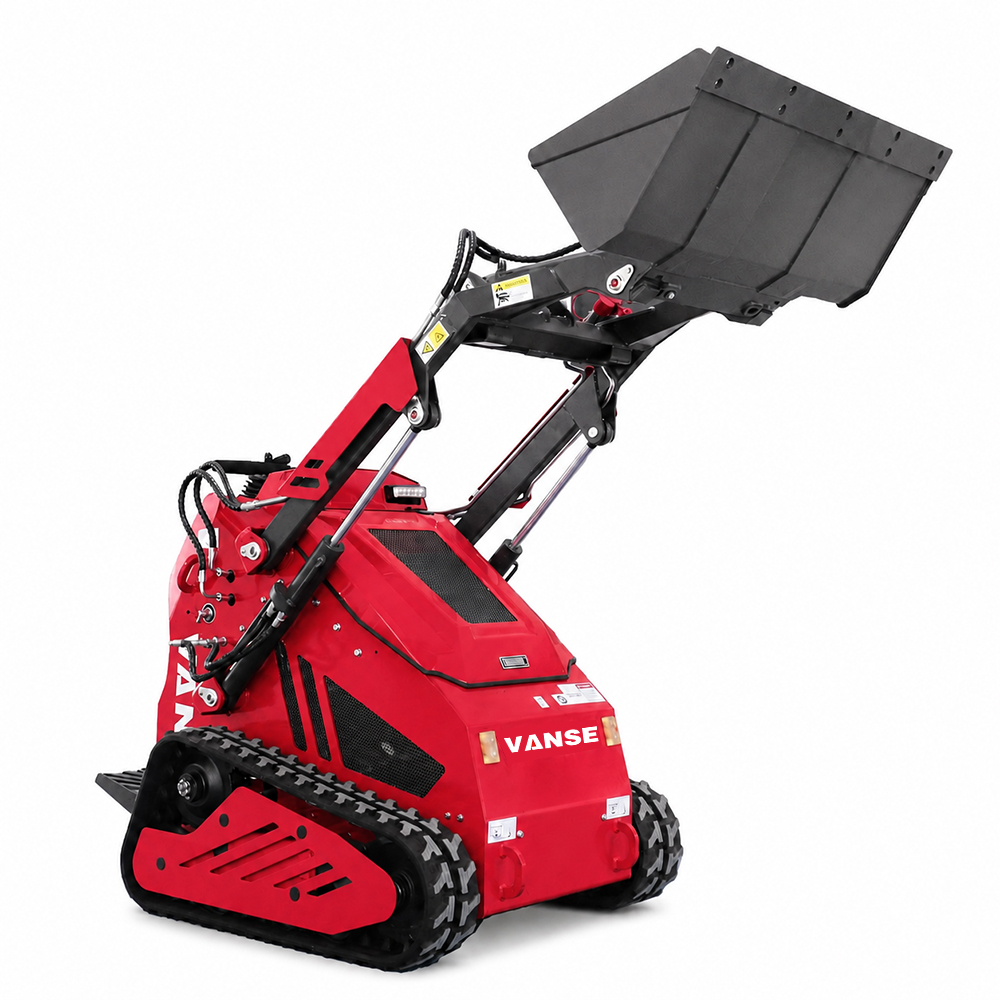

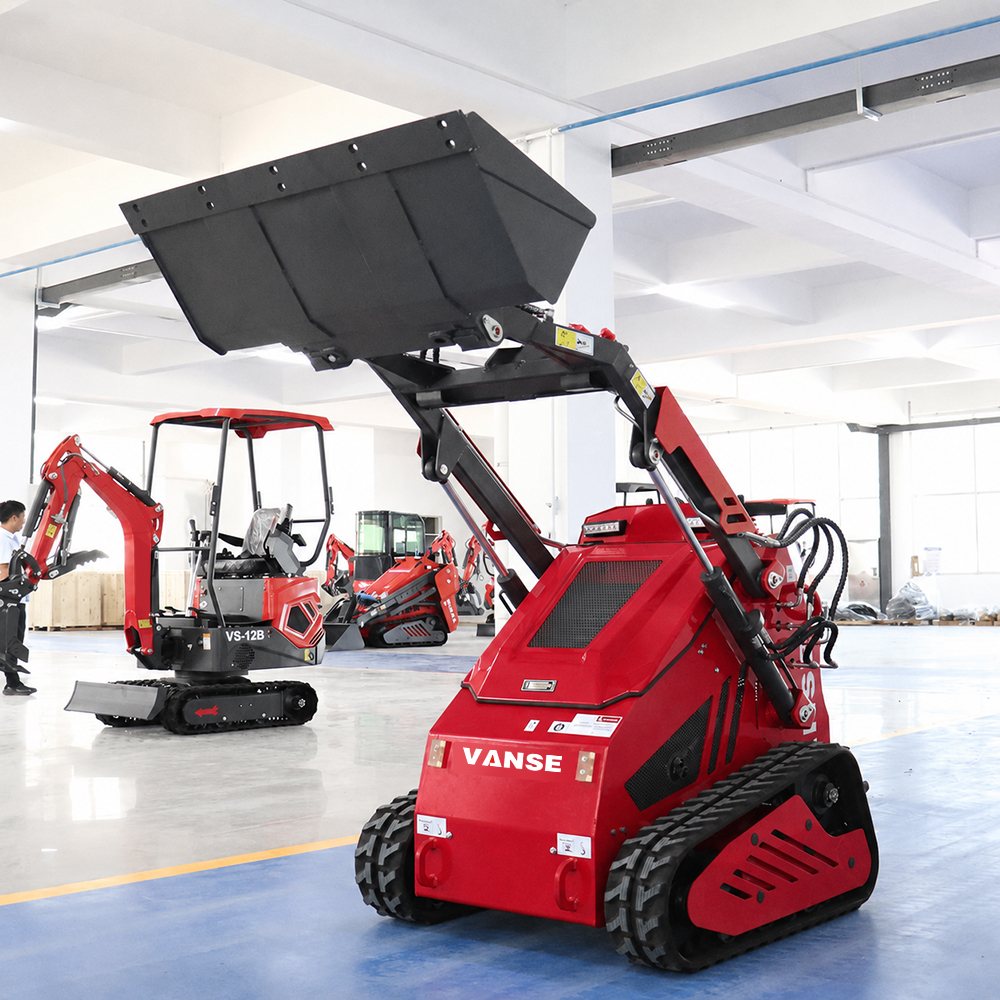

VS480X Skid Steer Loader
560 kg
Rated Load
0.15 m³
Bucket Capacity
23 HP
Engine Power
0–4.3 km/h
Working Speed
Compact but robust, this skid steer loader combines strong power with high stability. Reinforced chassis and enhanced hydraulic flow enable efficient operation in factory renovation, landscaping, pipeline work, and other medium-to-light heavy-load tasks.
Share This Product

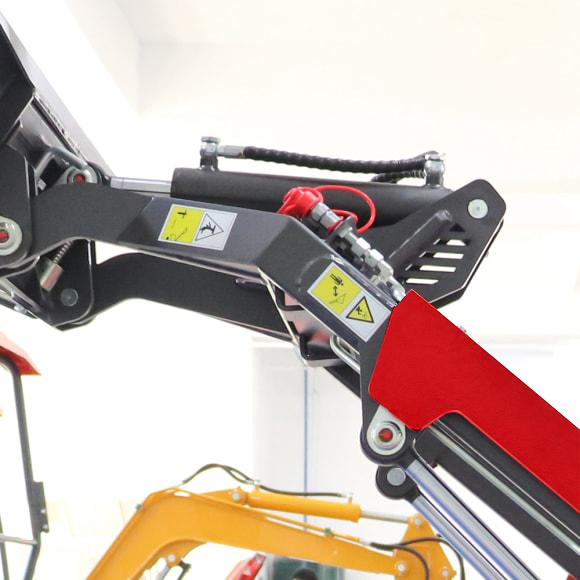

Enhanced Hydraulic Boom and Safety Design
Thickened manganese steel boom, resistant to torsion and pressure, with strong load-bearing capacity; explosion-proof hydraulic lines + safety warnings ensure safer operation. Exposed hydraulic lines are equipped with explosion-proof protective sleeves to effectively prevent damage from gravel and sharp objects that could cause leaks.

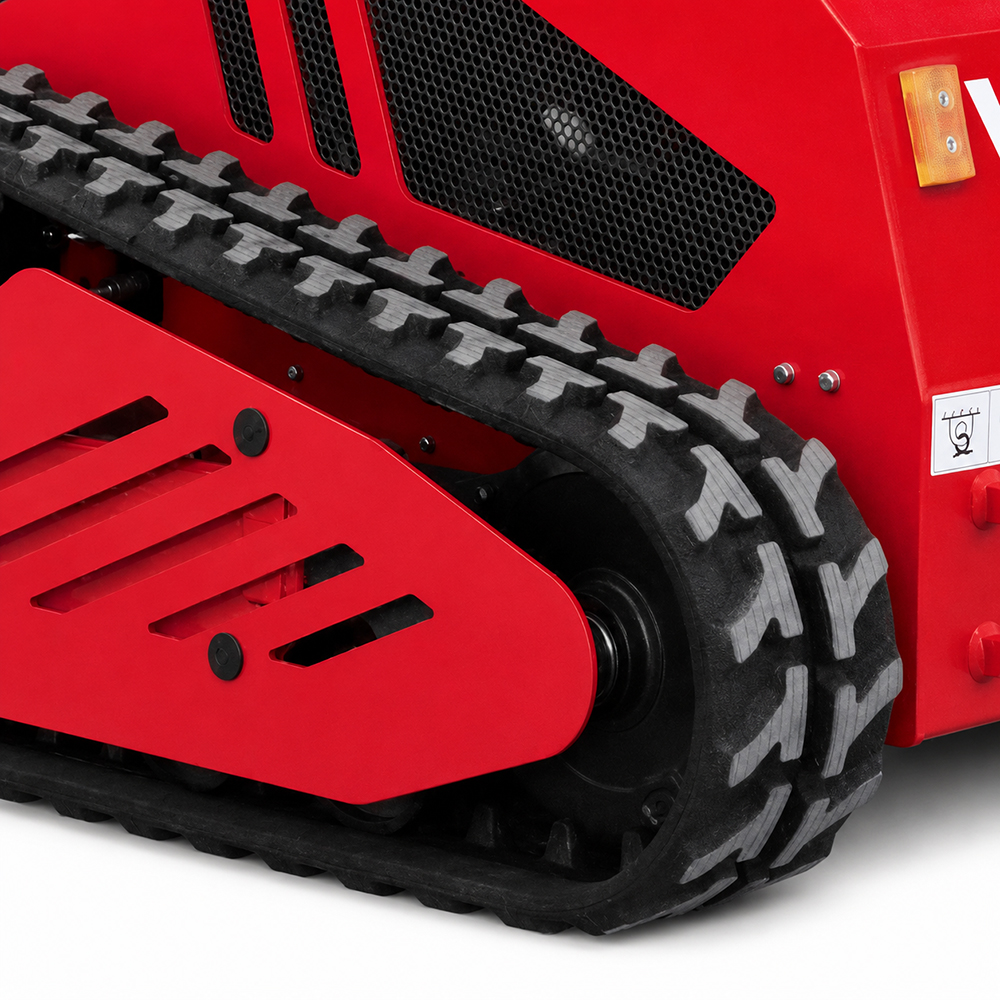

Heavy-Duty Anti-Slip Track System
High-grip rubber tracks allow for more flexible turning on the spot; anti-derailment design allows for unimpeded passage through complex terrain. It prevents slipping and sinking on soft surfaces such as mud, grass, and gravel roads.

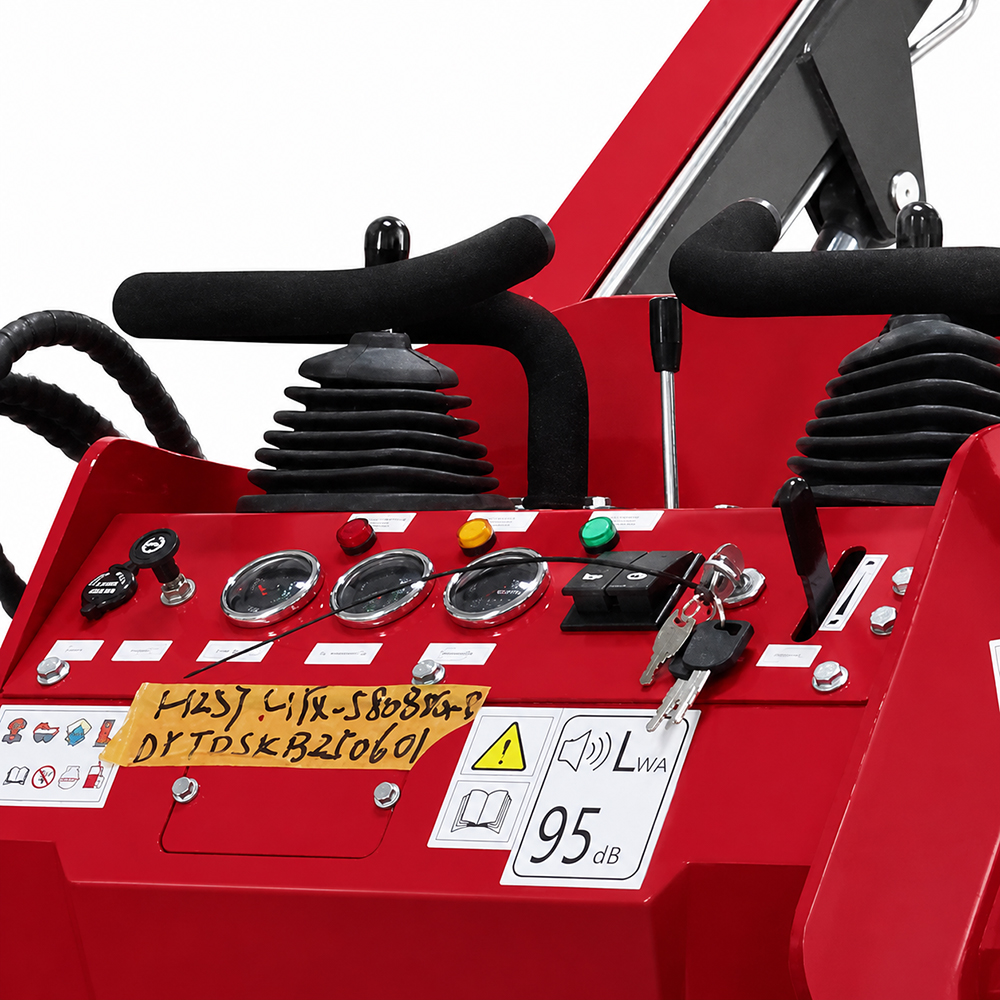

Ergonomic Control Panel
Multi-functional integrated control panel with an integrated ergonomic design. The hydraulic pilot handle, pressure gauge, ignition switch, and other components are rationally arranged, requiring no significant hand lifting during operation, allowing even beginners to quickly learn; low-noise design meets European environmental standards.

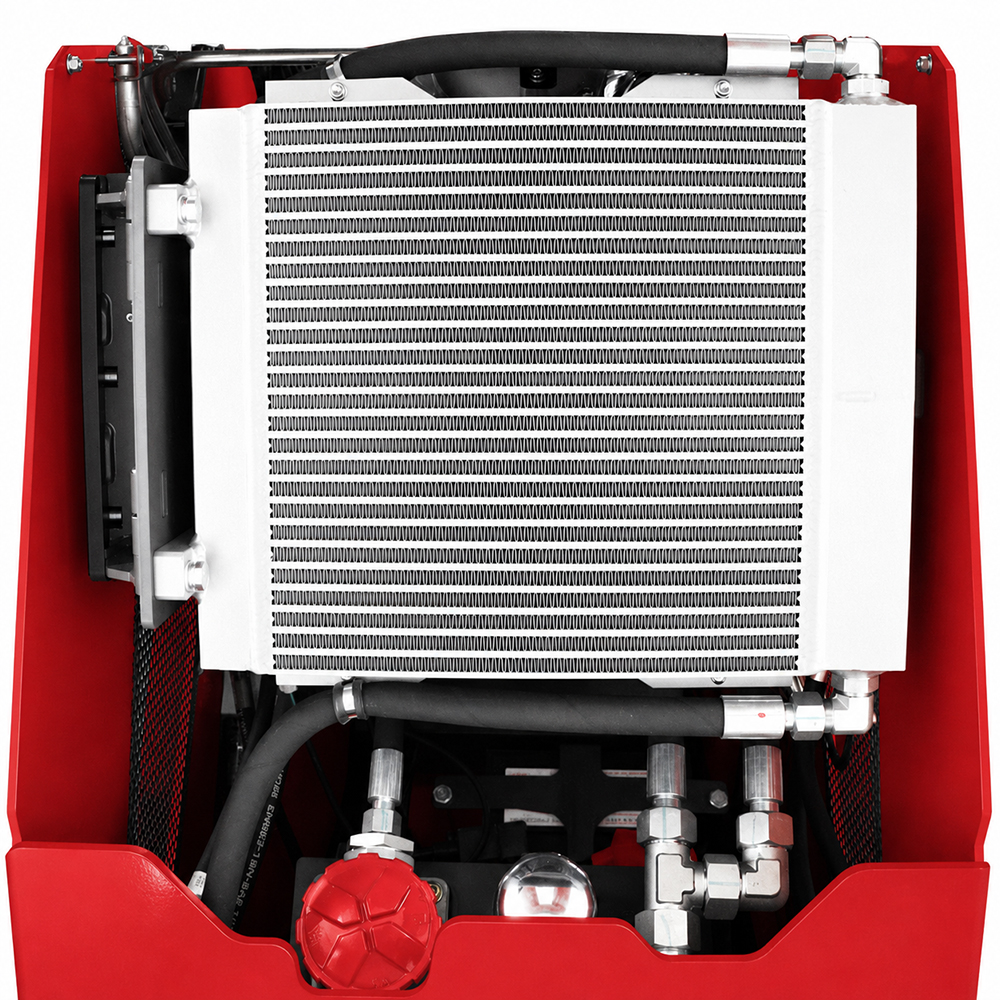

High-Efficiency Cooling System
Extra-large heat dissipation area prevents overheating during continuous high-load operation. The all-aluminum radiator is corrosion-resistant and durable, suitable for extreme working conditions, effectively preventing power loss or shutdown due to overheating, and significantly extending the service life of the equipment.
VS480X skid steer loader takes “strong power + high stability” as the core. Equipped with a high-power engine and a reinforced chassis, the hydraulic system flow is increased, suitable for medium and light heavy-load operations. It can be widely used in factory area renovation, pipeline construction, landscaping and other scenarios, balancing operation efficiency and equipment durability, and adapting to complex working conditions.
| Performance Parameters | |
| Parameter | Specification |
| Rated Load | 560 kg / 1235 lb |
| Bucket Volume | 0.15 m³ |
| Working Speed | 0 – 4.3 km/h |
| Rated Pressure | 17 MPa |
| Lifting Time | 4.6 s |
| Descent Time | 3.2 s |
| Dumping Time | 2.4 s |
| Climbing Ability | 30% |
| Work Weight | 920 kg / 2028 lb |
| Overall Dimensions | 2285 * 1150 * 1270 mm |
| Engine Details (Honda) | |
| Parameter | Specification |
| Engine Model | Honda 690 EPA |
| Type | Gasoline engine, V-Twin |
| Output Power | 23 HP / 3600 rpm |
| Fuel Consumption | ≤ 6.7 L/h |
| Starting Method | Electric start |
| Fuel Tank Capacity | 25 L |
| Engine Oil Capacity | 1.7 L |
| Hydraulic Oil Tank Capacity | 25 L |
