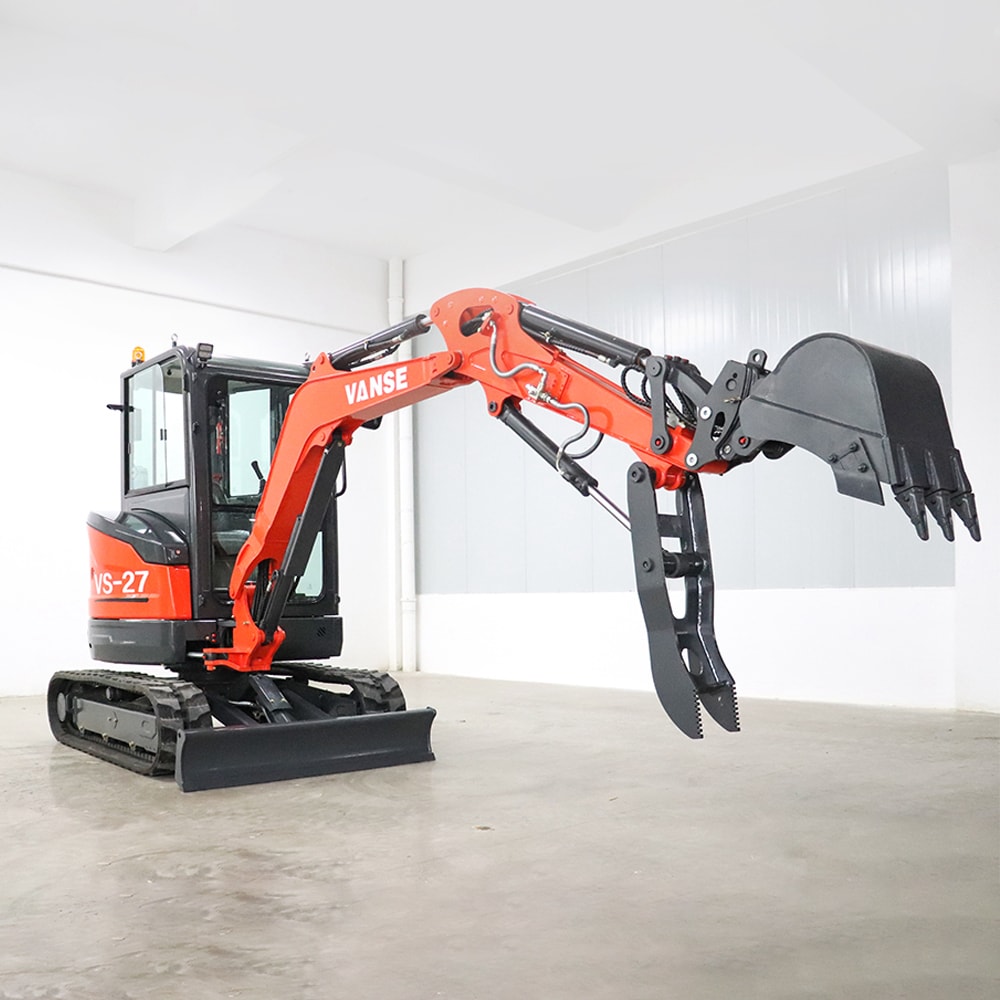

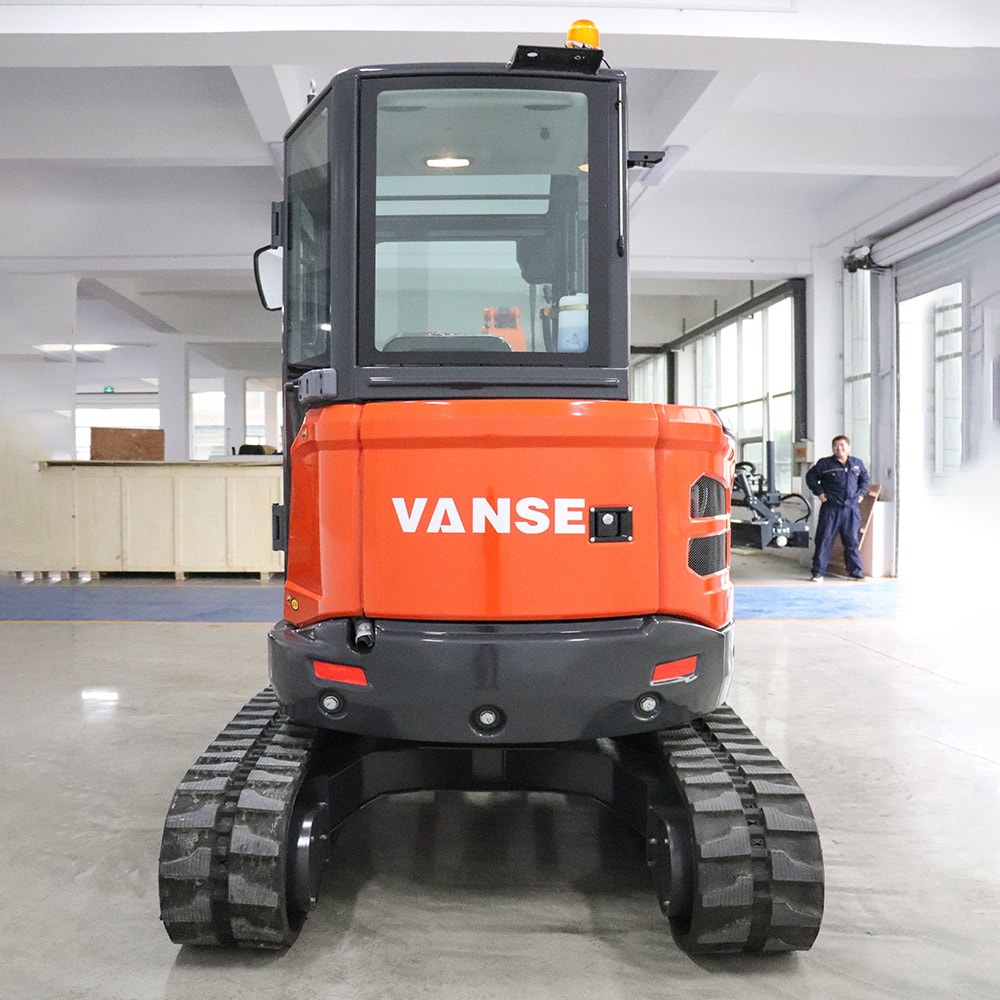

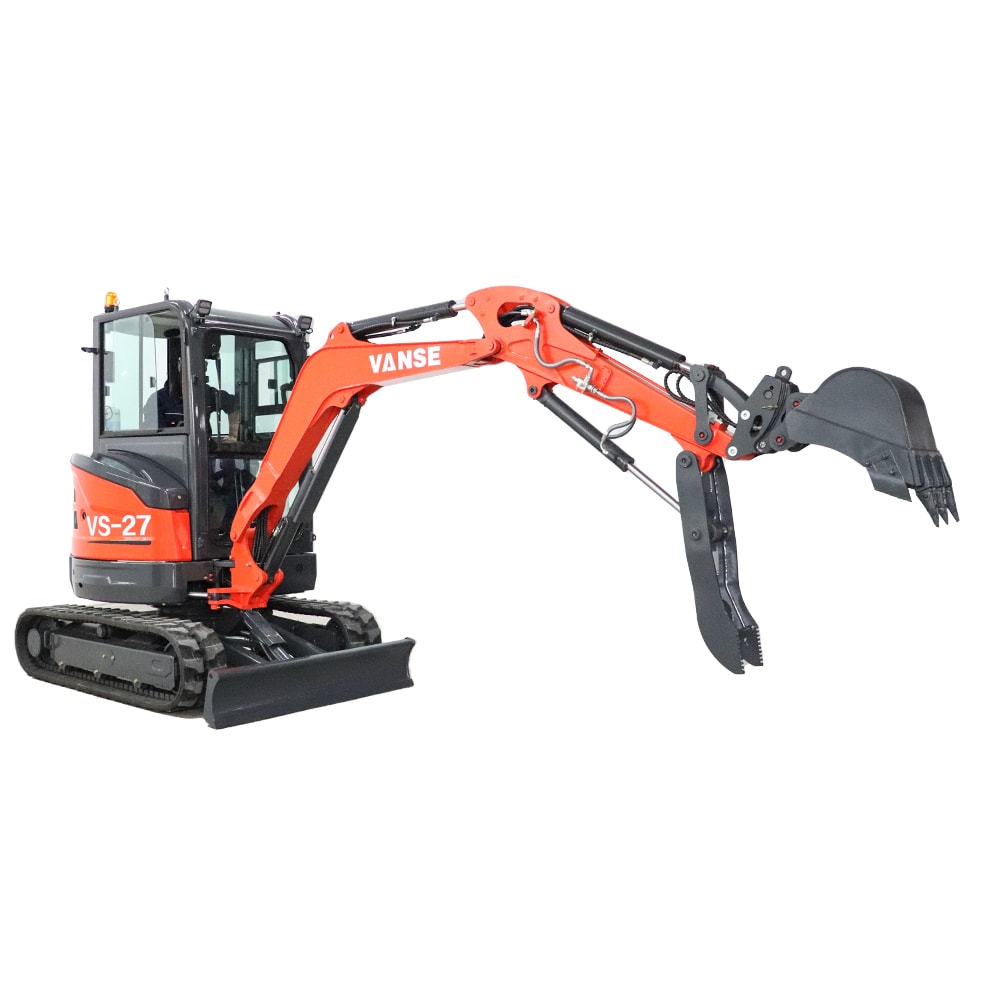

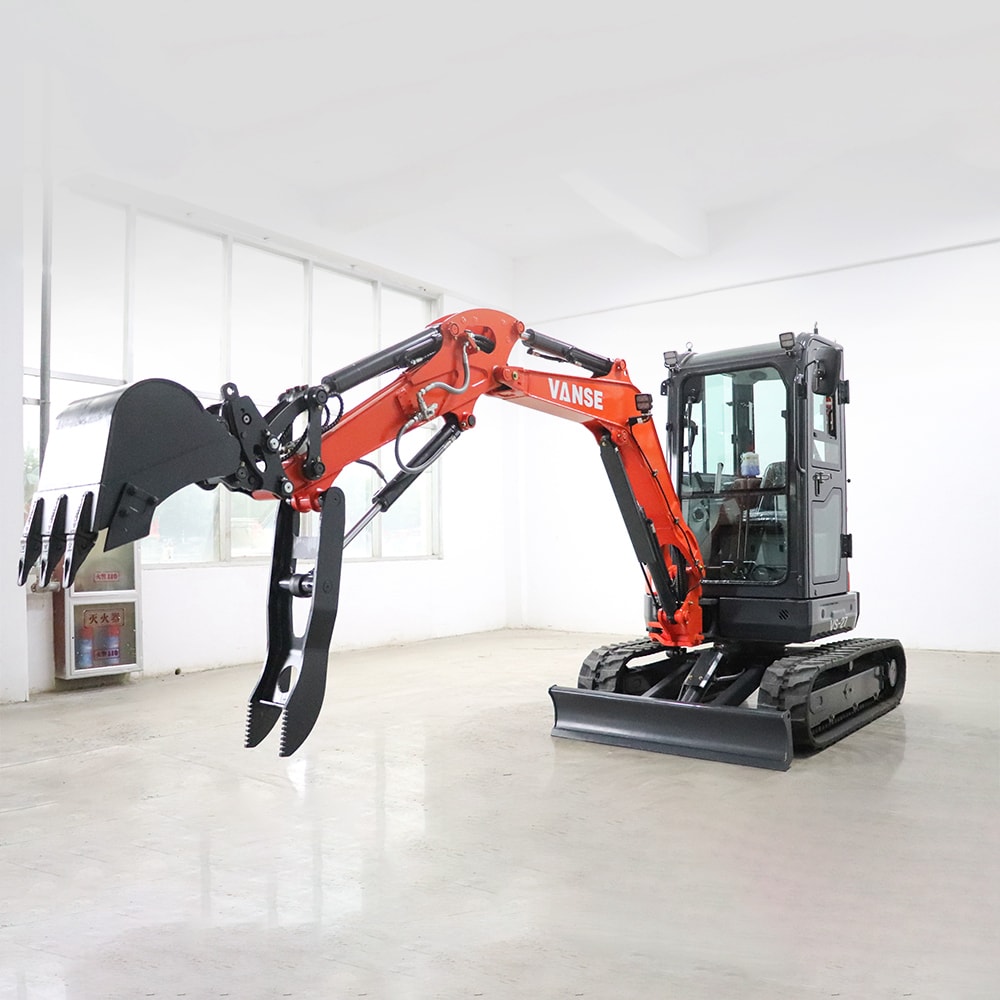

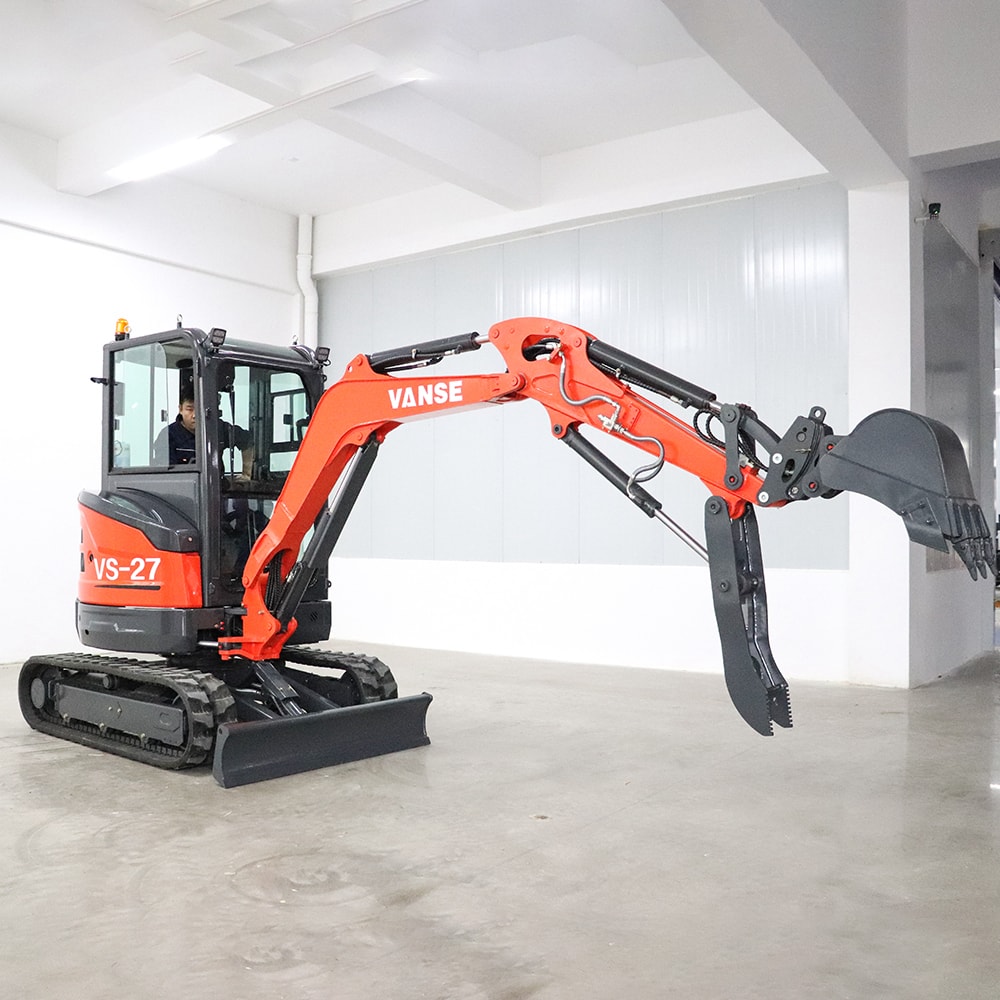

VSC-27 Mini Excavator for Construction
2,800 kg
Operating Weight
0.065 m³
Bucket Capacity
24 kN
Bucket Digging Force
14.6 kW
Rated Engine Power
Designed for medium-heavy engineering projects, this mini excavator combines strong power, high load-bearing capacity, and durable construction. With an integrally cast boom bracket, widened engineering tracks, and multi-attachment compatibility, it efficiently handles tasks such as foundation pit excavation, mine auxiliary work, and factory site renovation.
Share This Product

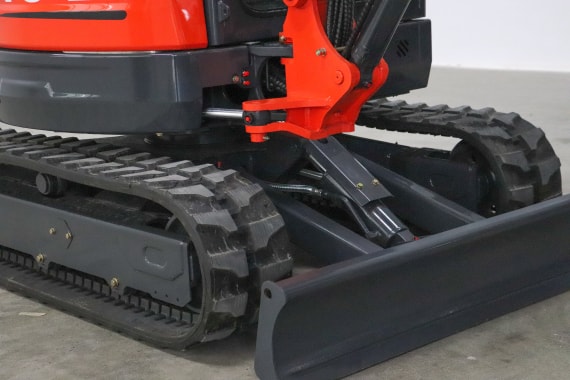

Tracks and Bulldozer Blade
Reinforced rubber tracks provide stable grip and prevent road damage; the large front-mounted bulldozer blade allows for quick site leveling and dredging, offering high efficiency through versatility.

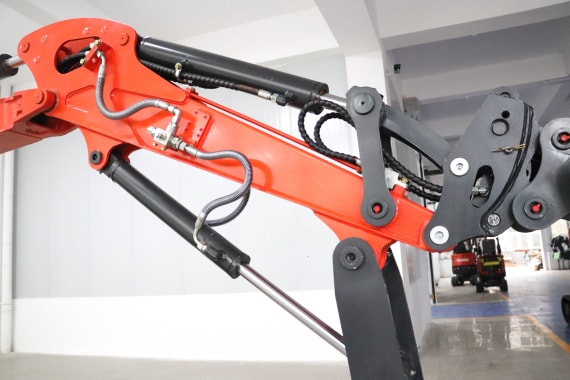

High-Strength Hydraulic Arm
Thickened steel plate hydraulic arm provides bending and torsion resistance; precision hydraulic piping ensures accurate and smooth operation, supports quick attachment changes, and is suitable for various scenarios including excavation, crushing, and loading.

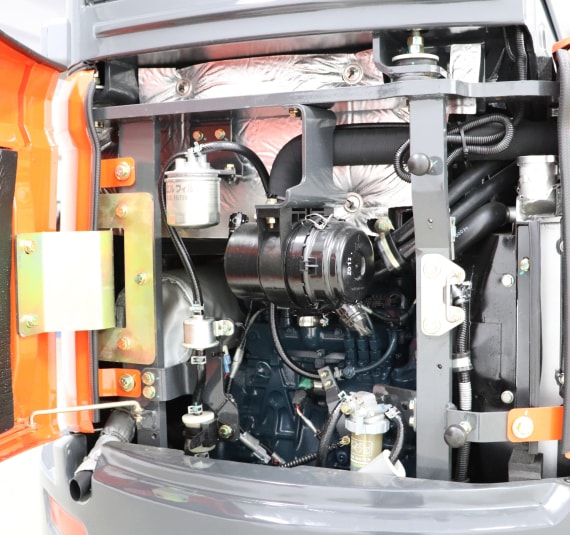

Branded Power System
Equipped with a renowned brand engine, providing strong power and economical fuel consumption; integrated cooling and filtration system ensures stable output even in high-temperature and dusty conditions, and facilitates easy maintenance.

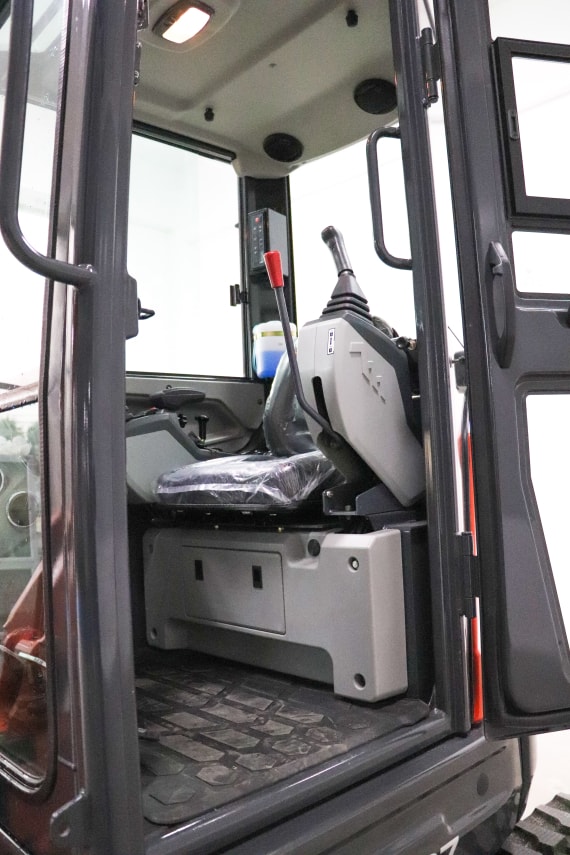

Fully Enclosed Luxury Cab
The fully enclosed cab is soundproof and dustproof, equipped with air conditioning and an ergonomic seat for comfortable operation even during long periods of work, and offers a wide field of vision.
VSC-27 mini excavator (engineering version) focuses on medium-heavy load engineering operations, integrating strong power output, high load-bearing capacity and long-term durability. The whole machine adopts an integrally cast boom bracket and widened engineering track, adapting to medium and high-intensity operations such as mine auxiliary, factory area renovation and foundation pit excavation. It can be compatible with a variety of engineering attachments to realize multi-purpose, balancing operation efficiency and equipment durability.
| Technical Parameters | |
| Parameter | Specification |
| Machine Weight | 2800 kg (6173 lb) |
| Bucket Capacity | 0.065m³ |
| Engine | Kubota |
| Rated Power | 14.6 kW / 2400 rpm |
| Travel Speed (High/Low) | 4.0 / 2.0 km/h |
| Maximum Rotation Speed | 10 r/min |
| Gradeability | 30°(58%) |
| Ground Pressure | 27 kPa |
| Bucket Digging Force | 24 kN |
| Digging Force of Bucket Arm | 14.8 kN |
| Scope of Work | |
| Parameter | Specification |
| Maximum Digging Height | 4390 mm (14.4 ft) |
| Maximum Unloading Height | 3060 mm (10.04 ft) |
| Maximum Digging Depth | 2800 mm (9.19 ft) |
| Maximum Vertical Digging Depth | 2310 mm (7.58 ft) |
| Maximum Digging Distance | 4800 mm (15.75 ft) |
| Maximum Digging Distance At Ground Level | 4680 mm (15.35 ft) |
| Minimum Turning Radius Of Working Device | 2015 mm (6.61 ft) |
| Maximum Lifting Height Of Bulldozer | 300 mm (0.98 ft) |
| Maximum Cutting Depth Of Dozer Blade | 320 mm (1.07 ft) |
| Dimensions | |
| Parameter | Specification |
| Total Length | 4200 mm (13.78 ft) |
| Ground Length (Transportation) | 2735 mm (8.97 ft) |
| Overall Height (To Top Of Boom) | 1540 mm (5.05 ft) |
| Overall Width | 1550 mm (5.09 ft) |
| Overall Height (To The Top Of The Cab) | 2480 mm (8.14 ft) |
| Counterweight Ground Clearance | 575 mm (1.89 ft) |
| Minimum Ground Clearance | 300 mm (0.98 ft) |
| Tail Turning Radius | 775 mm (2.54 ft) |
| Track Length | 2020 mm (6.63 ft) |
| Gauge | 1250 mm (4.1 ft) |
| Track Width | 1550 mm (5.09 ft) |
| Standard Track Shoe Width | 300 mm (0.98 ft) |
| Width Of Rotary Platform | 1400 mm (4.59 ft) |
| Distance From Rotation Center To Rear End | 775 mm (2.54 ft) |
