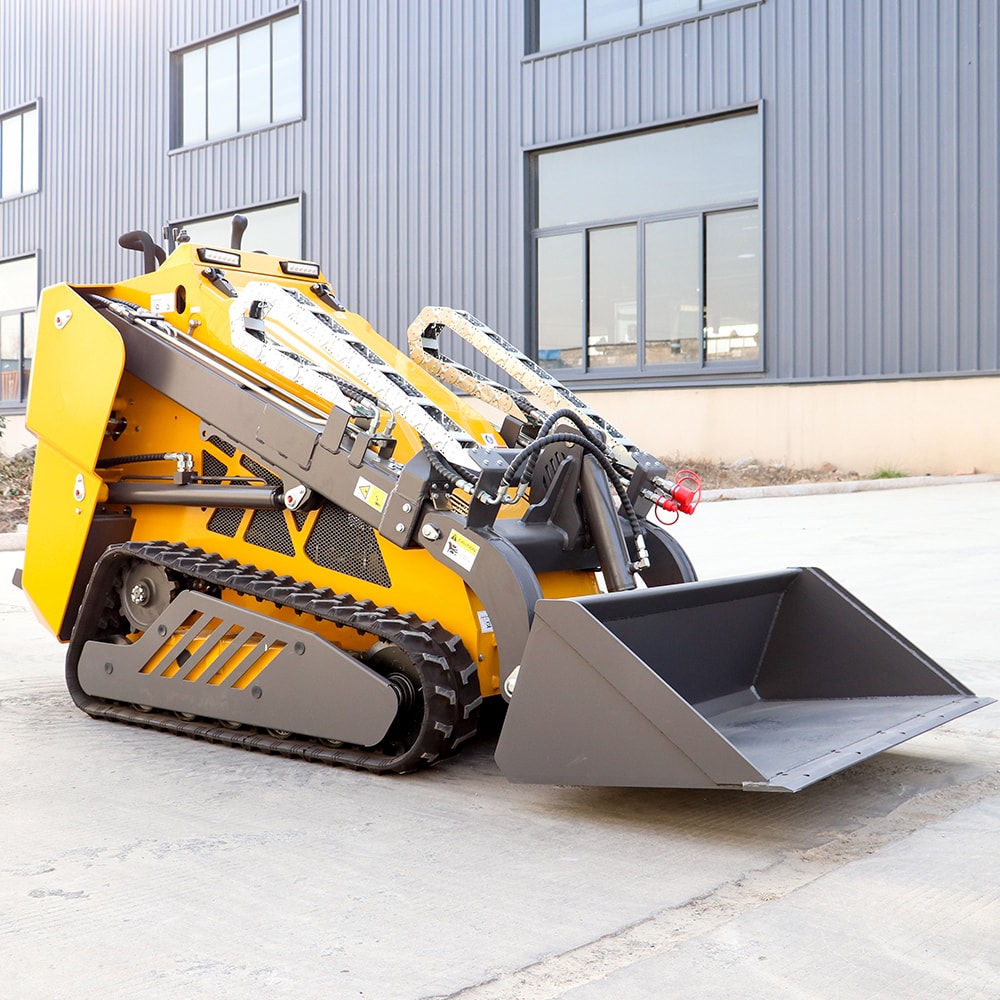

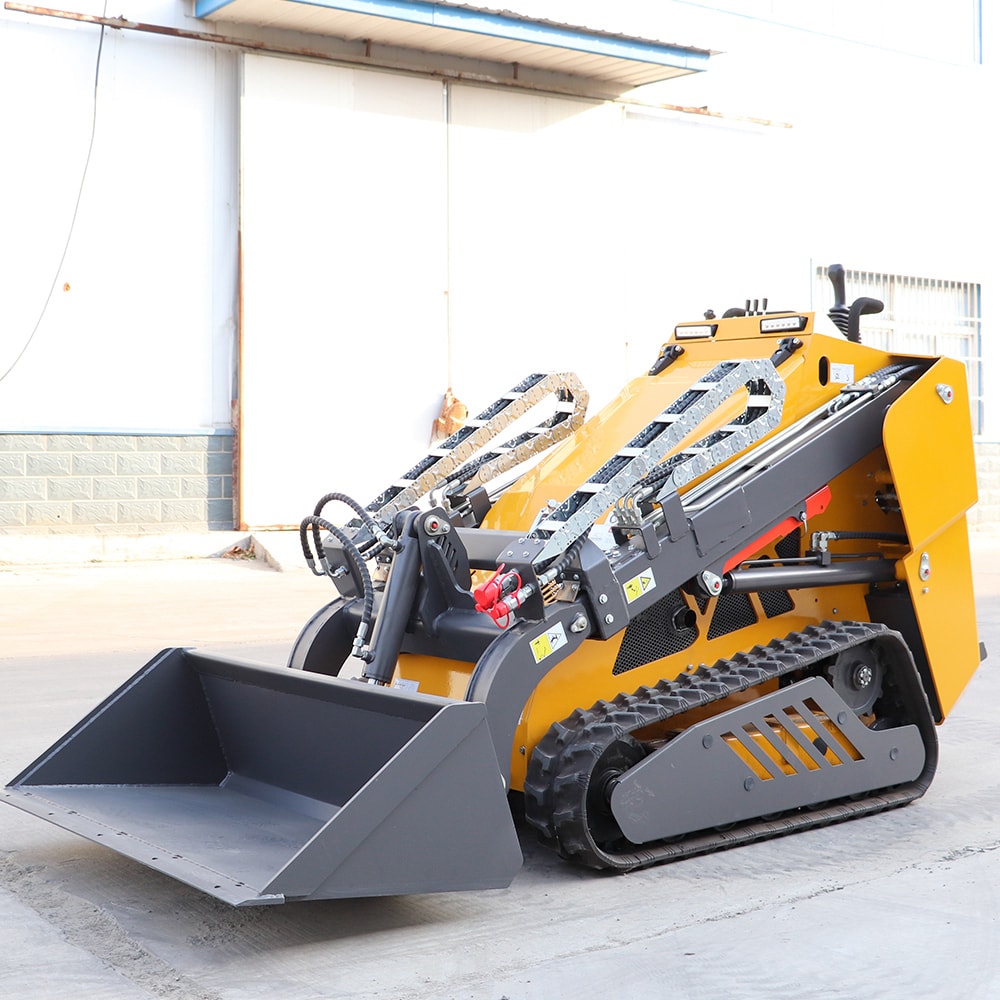

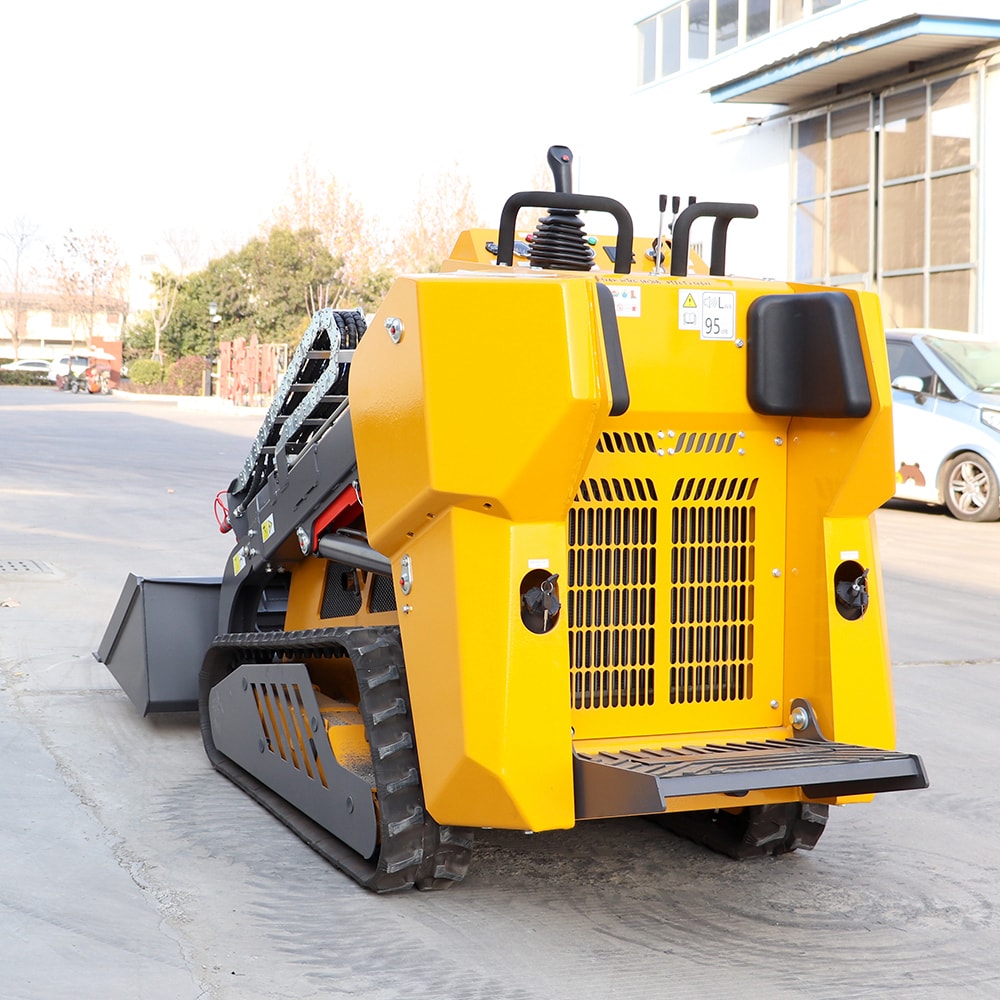

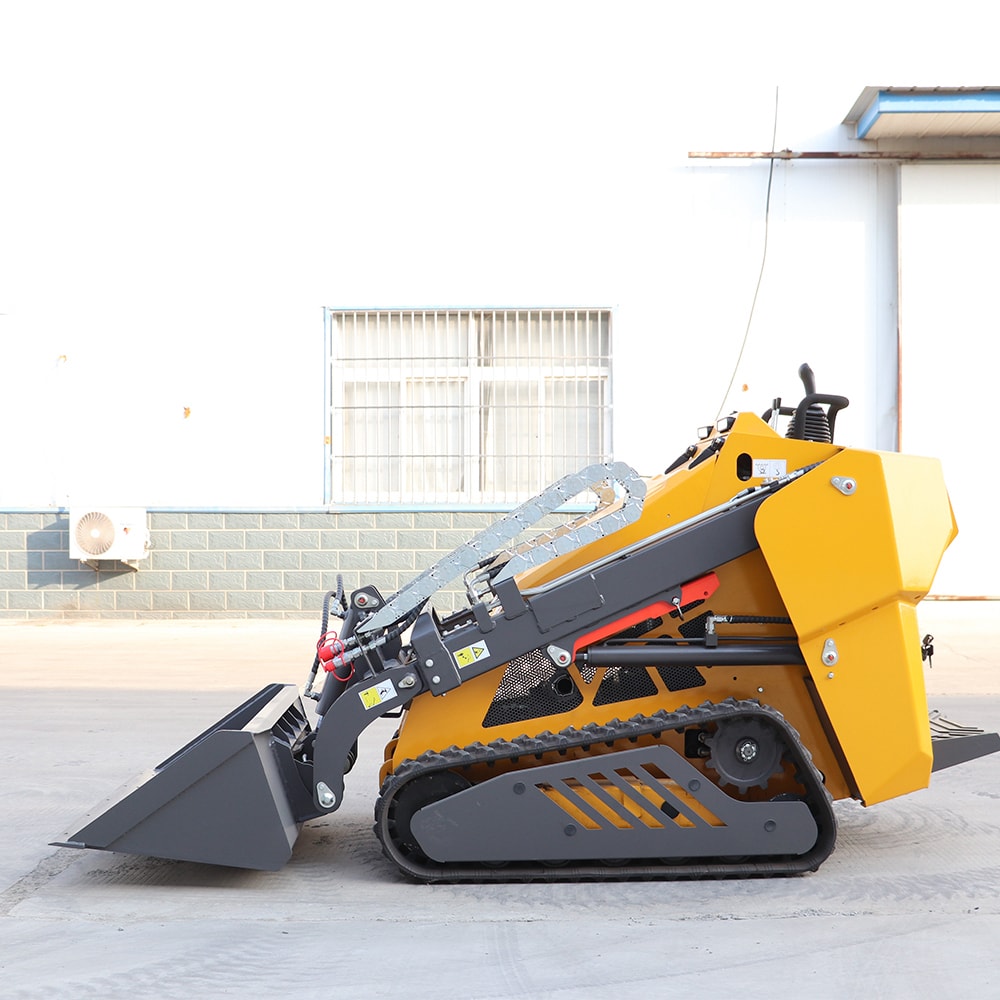

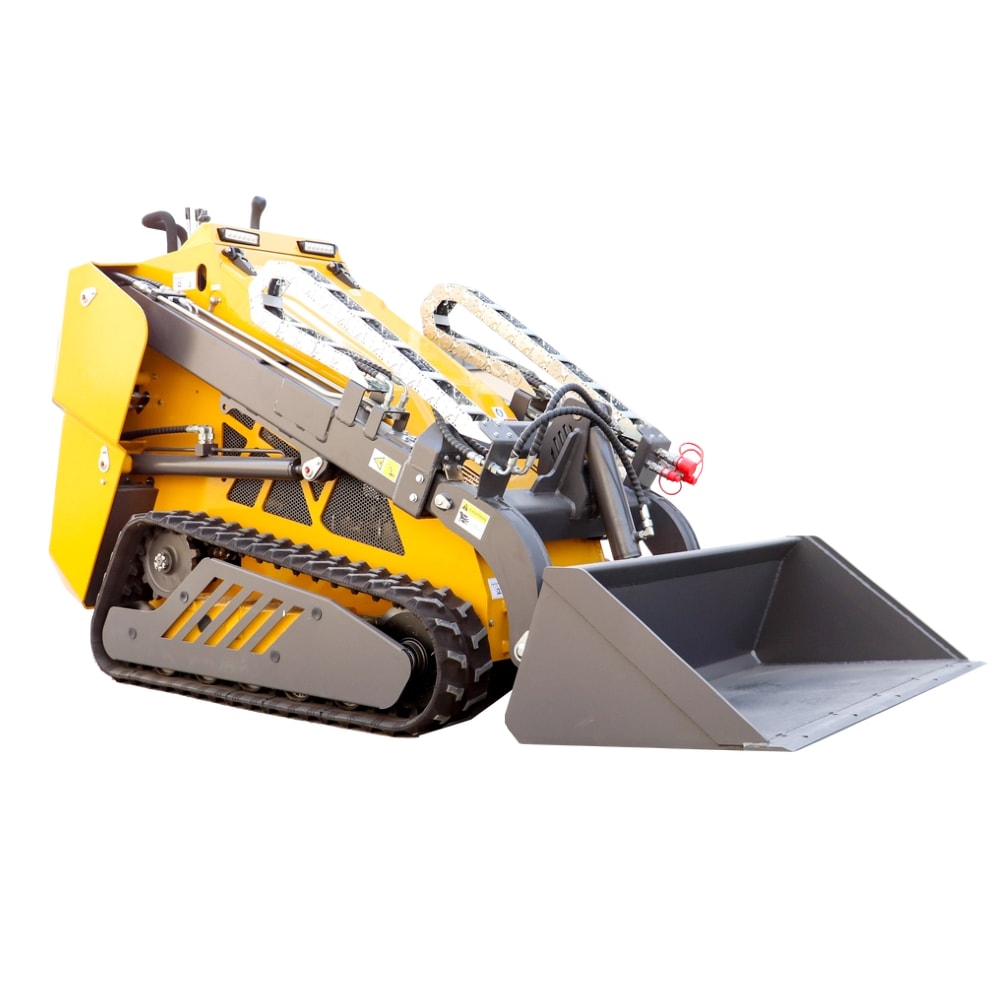

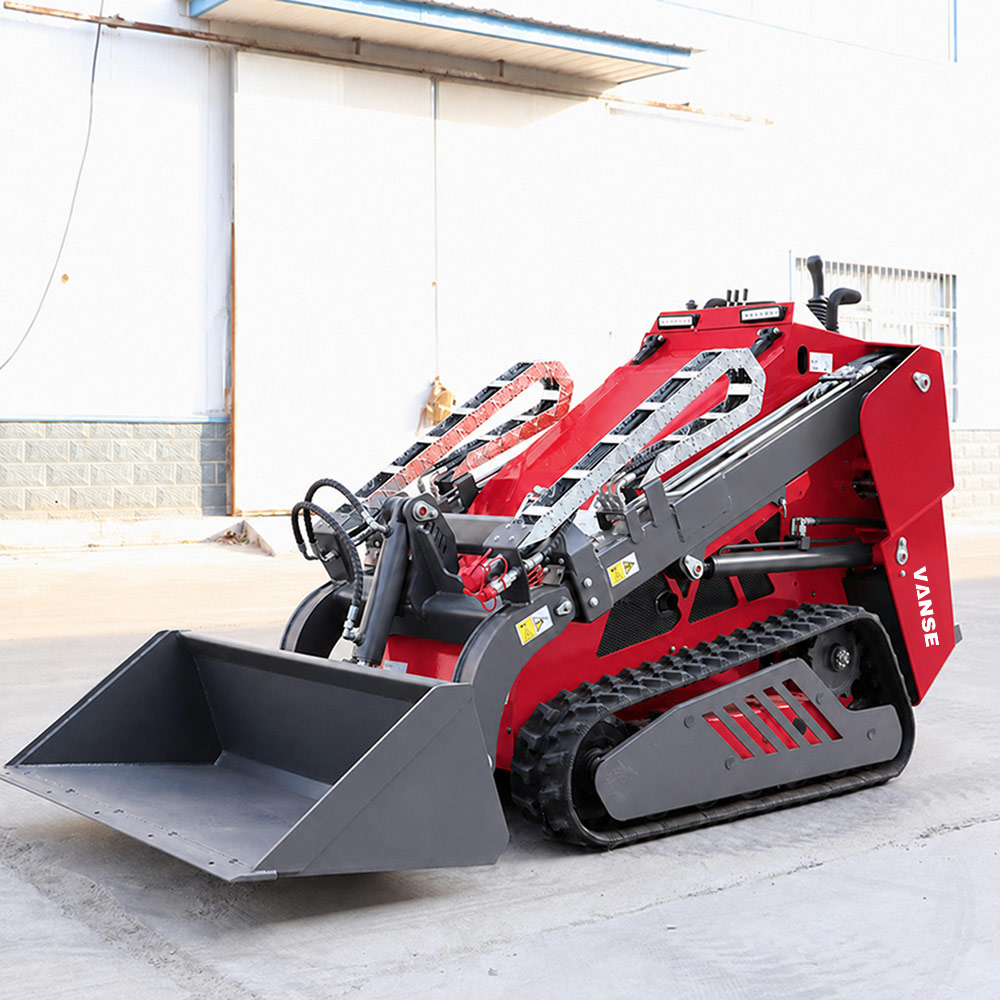

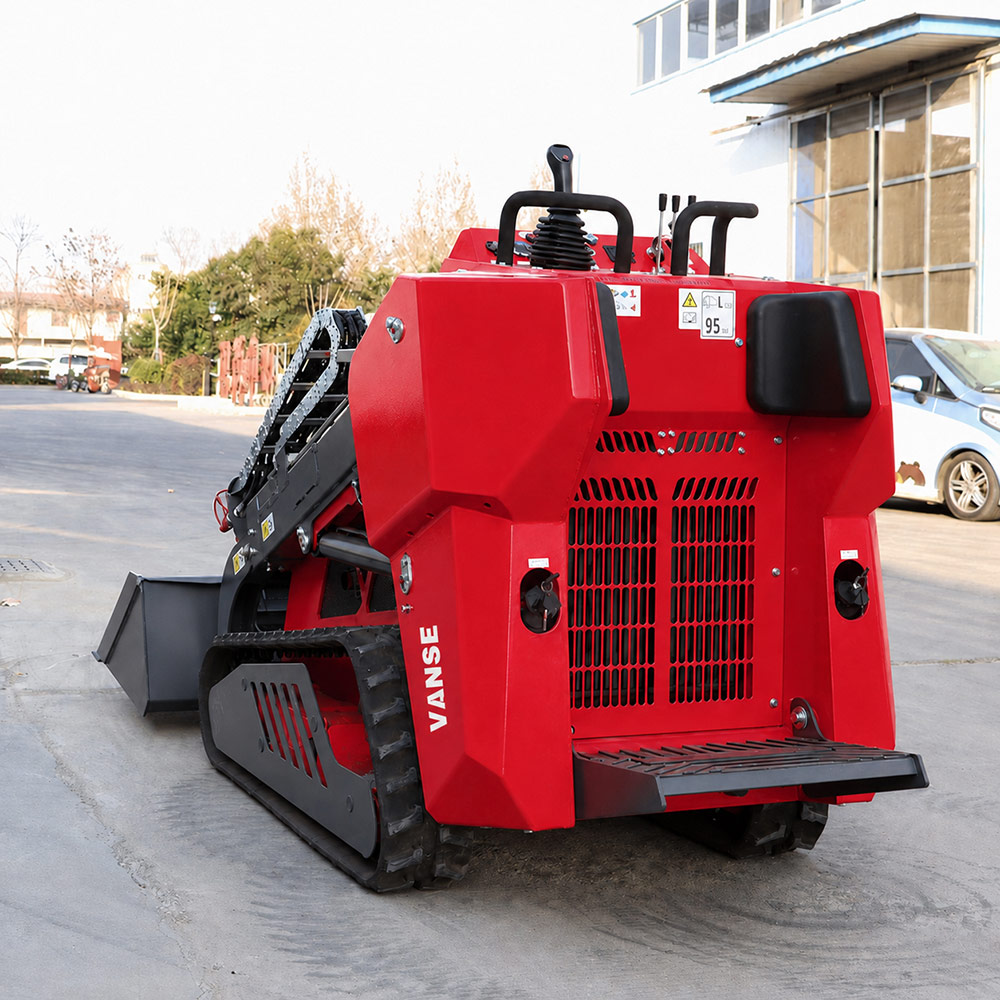

VS680X Extendable Skid Steer Loader
650 kg
Rated Load
0.2 m³
Bucket Volume
18.4 kW
Max Engine Power
1,440 kg
Operating Weight
Compact, extendable skid steer loader designed for tight-space operations, high-reach tasks, and multi-condition material handling. Ideal for construction, landscaping, industrial maintenance, and small-scale loading/unloading work.
Share This Product

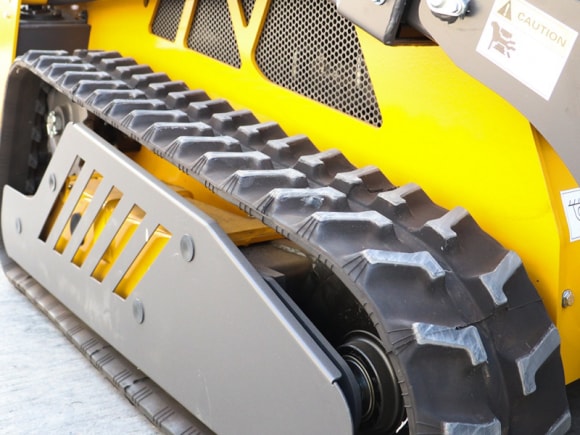

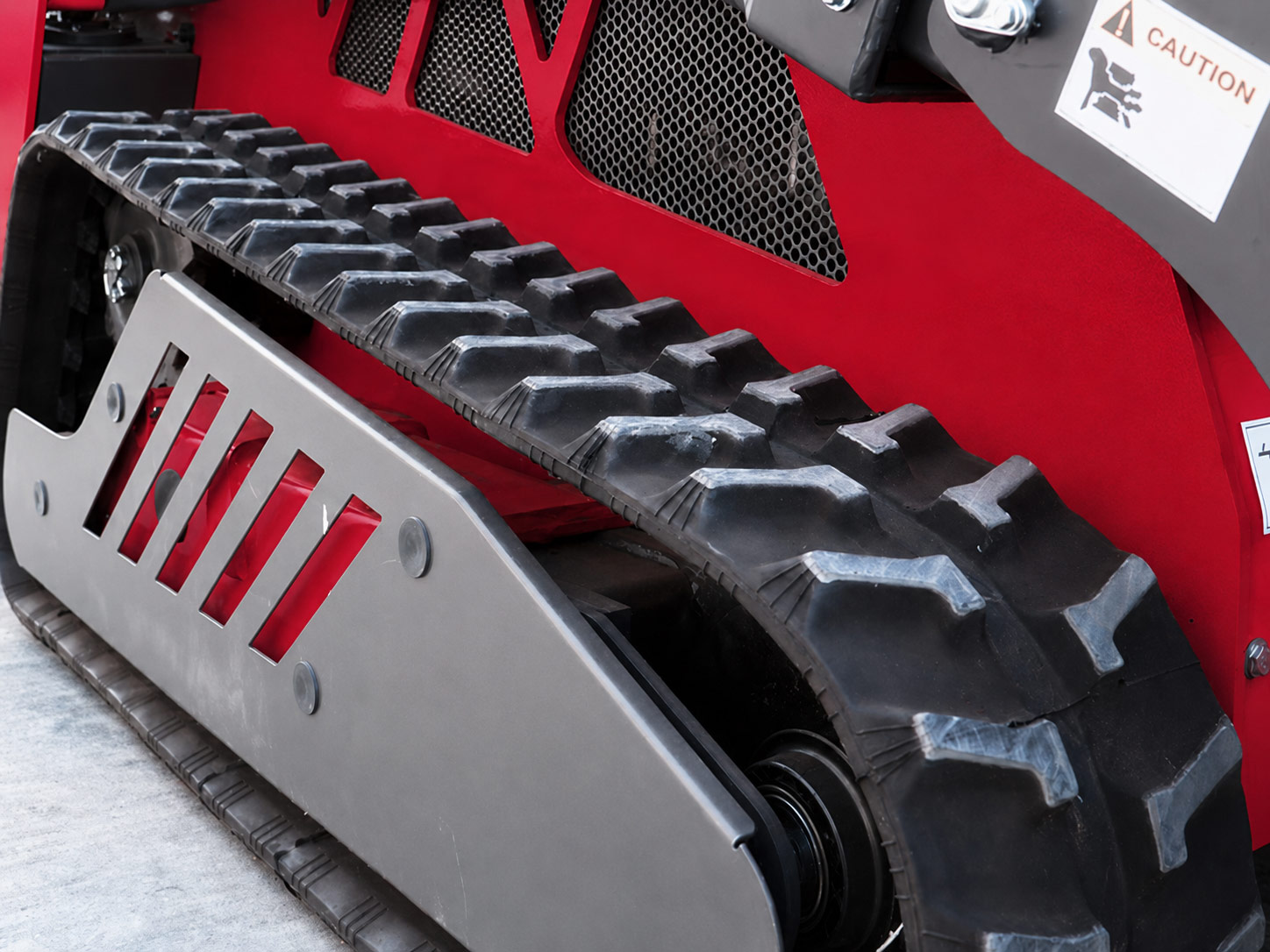

Heavy-Duty Tracks and Protective Structure
Custom-designed, deep-patterned heavy-duty rubber tracks, paired with anti-derailment guards, reduce ground pressure, preventing slippage and derailment on muddy or gravel roads. The perforated protective structure effectively blocks debris intrusion, balancing mobility and chassis protection, suitable for all-terrain, high-intensity operations.

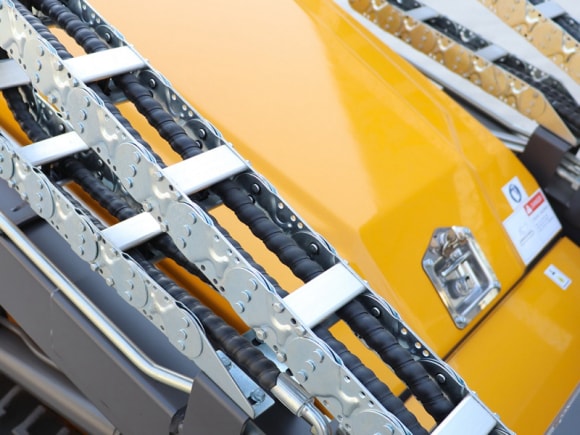

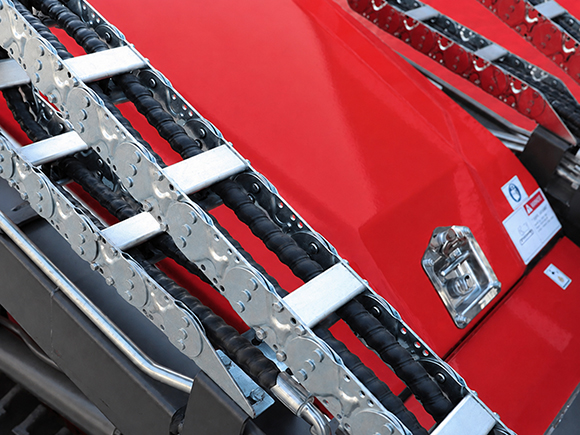

Telescopic Boom Chain Drive System
Double-row heavy-duty chains drive the telescopic boom, with thickened chain plates and sealing sleeves, ensuring smooth transmission and impact resistance. Precise chain tension design ensures even and stable telescopic stroke, eliminating jamming during heavy-duty operations and significantly improving the reliability and service life of the telescopic boom.

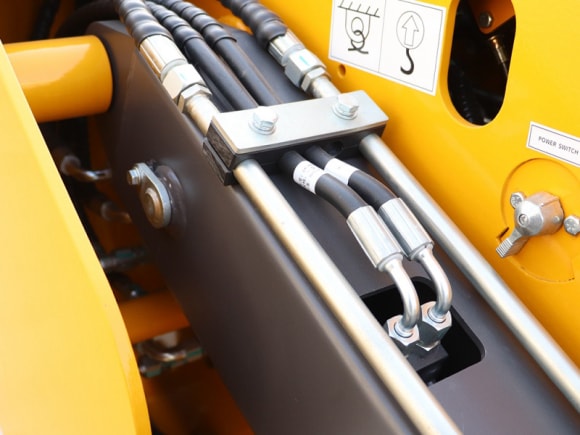

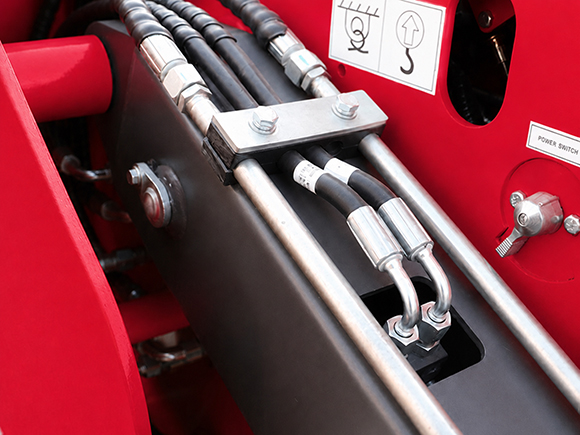

Multi-circuit Hydraulic Interface
Multi-circuit hydraulic interfaces adopt an international standard quick-change design, with a neat pipeline layout and adequate protection, allowing simultaneous driving of multiple attachments. Precise flow distribution and leak-proof connector design ensure stable hydraulic power output, efficient attachment switching, and no risk of leakage.

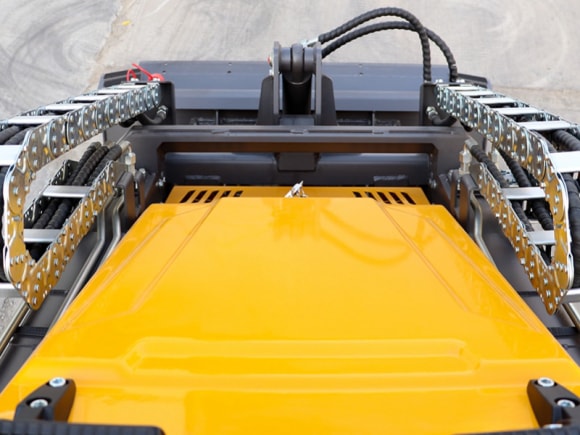

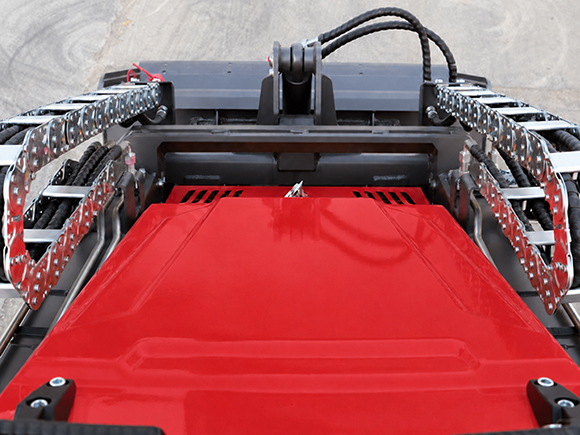

Symmetrical Telescopic Boom Drive Structure
Double-row symmetrical chain drive structure.This structure ensures even force distribution and synchronized extension/retraction, preventing arm sway. The built-in pipeline follow-up design retracts synchronously with the arm’s extension and retraction, eliminating pipeline wear and ensuring smooth, reliable, and durable operation of the telescopic arm throughout its full stroke.

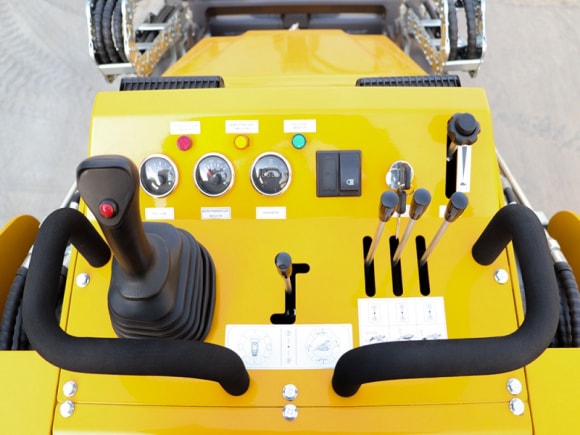

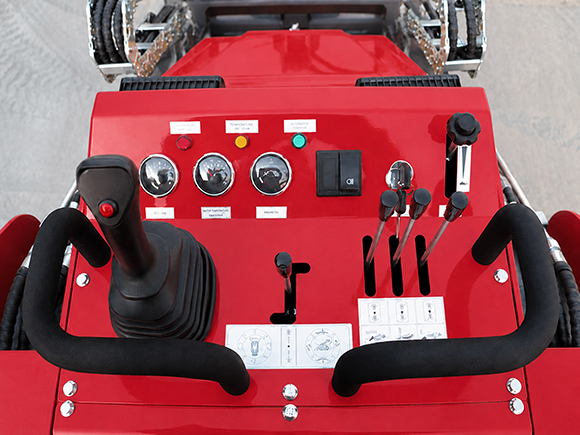

Integrated Control Panel
The integrated ergonomic control panel features a single handle and multi-position lever layout, providing intuitive and clear operation logic. A color instrument panel monitors the working conditions in real time. Anti-slip handrails and travel limit designs reduce operator fatigue and the risk of misoperation, allowing even beginners to quickly learn how to use it.

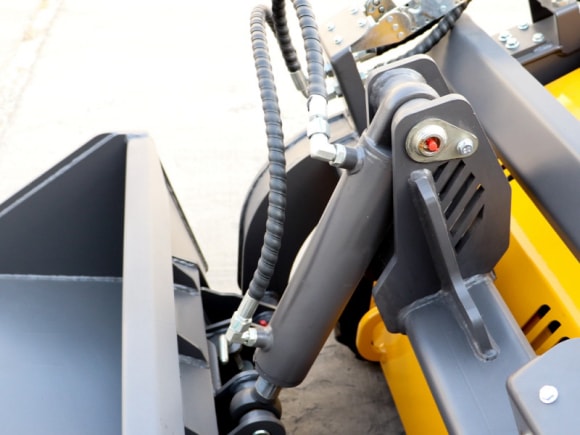

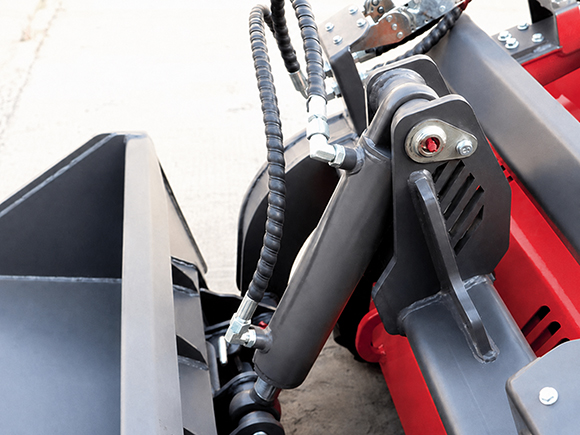

Front-end Hydraulic Cylinder and Quick-change Device
The thickened, heavy-duty hydraulic cylinder, combined with reinforced hinge points, offers strong load-bearing capacity and impact resistance. The front-end quick-change device uses an international standard interface for fast and reliable attachment switching. Dustproof protective covers effectively extend connector life, adapting to various working conditions.

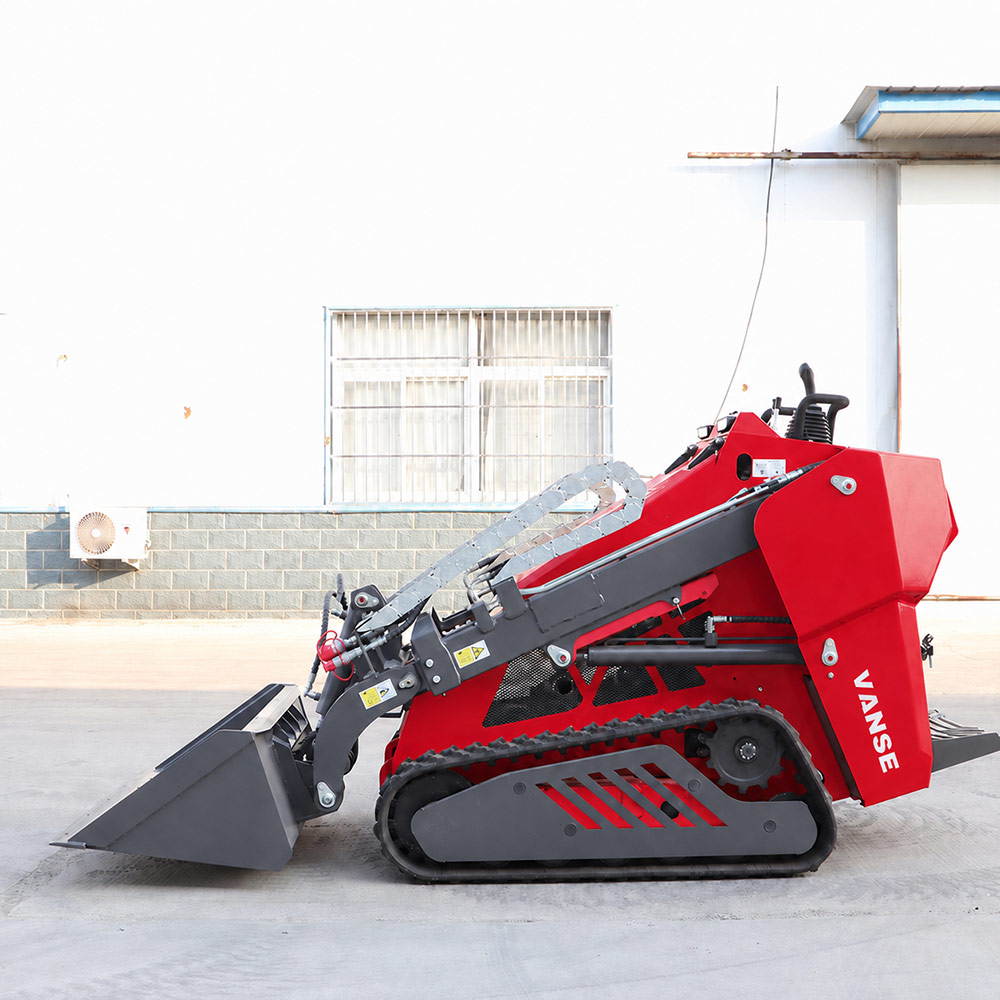

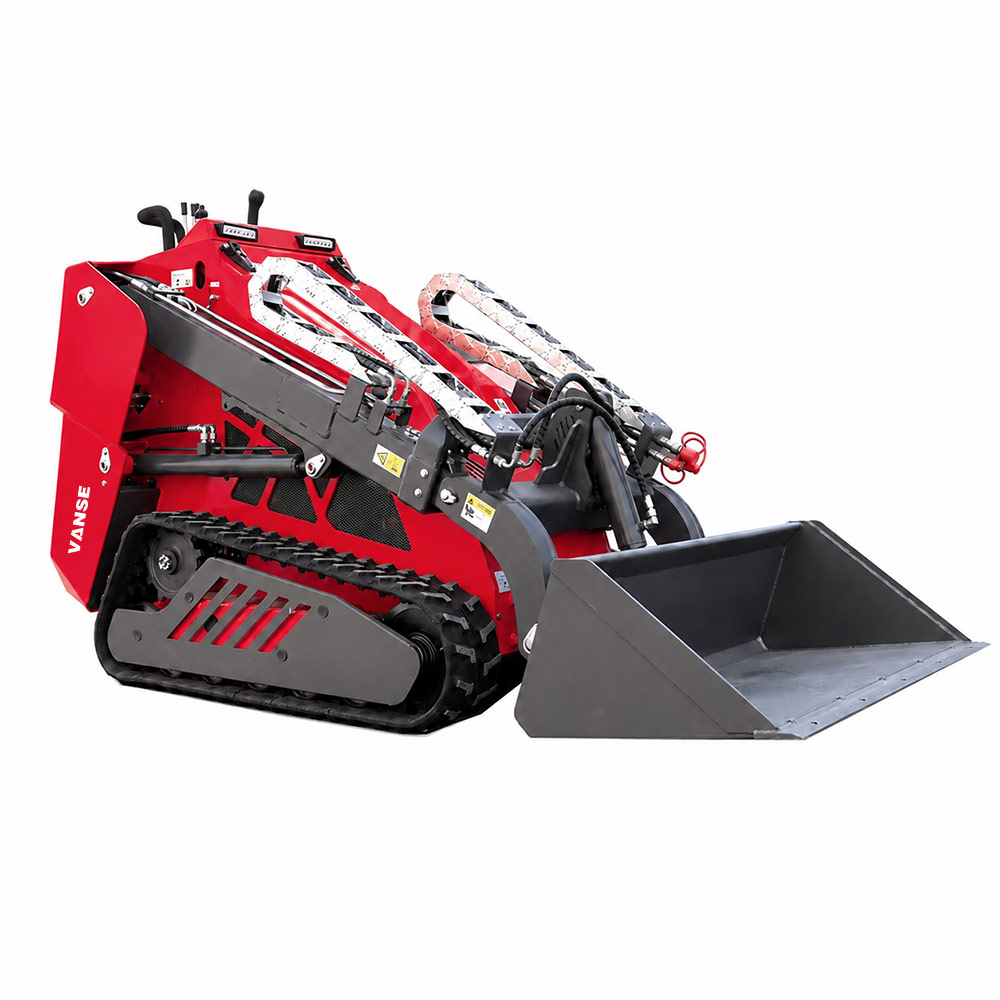

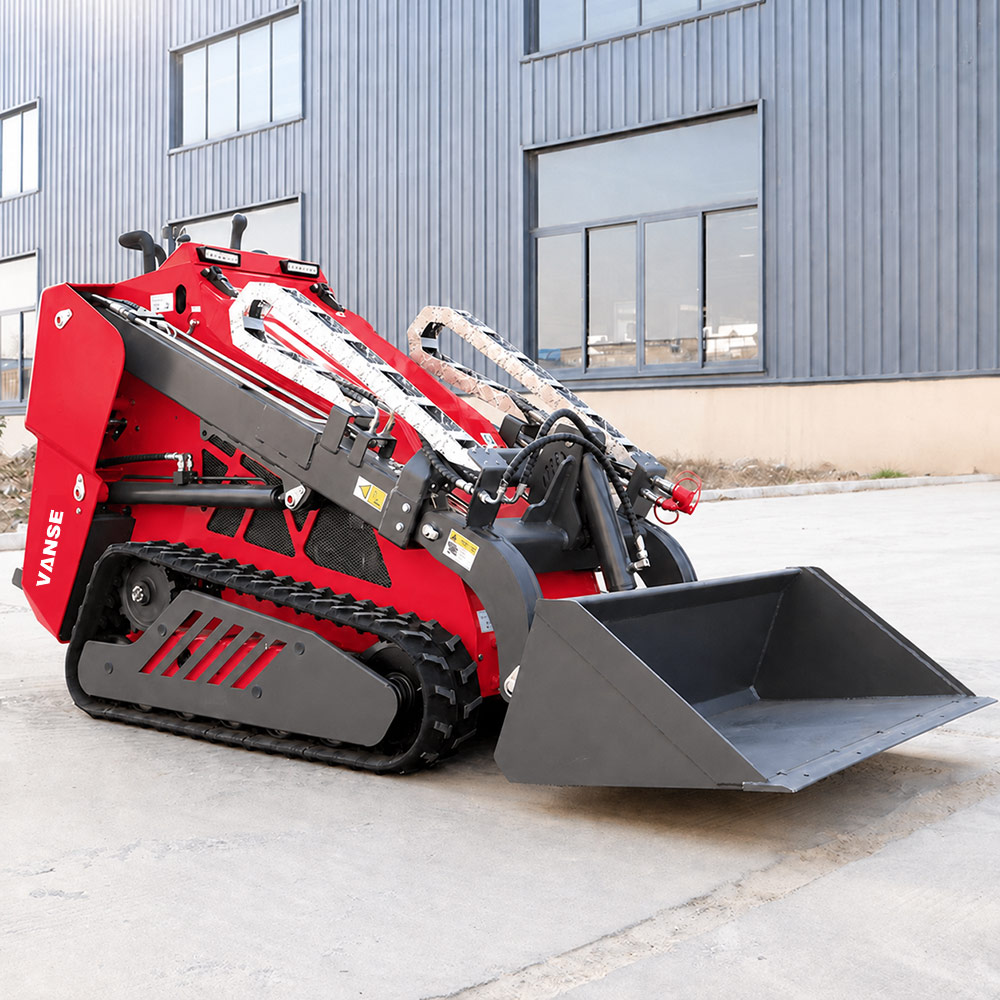

VS680X extendable skid steer loader upgrades the telescopic boom structure on the basis of the standard version, with significantly improved operating radius and unloading height. It balances heavy-load capacity and operational flexibility, suitable for high-altitude operations, long-distance material transfer, large-scale site renovation, and other scenarios. It can realize “one machine covering multiple operation ranges”, greatly improving construction convenience.
| Performance | |
| Parameter | Specification |
| Rated Load Capacity | 650 kg / 270 kg |
| Bucket Volume | 0.2 m³ |
| Maximum Lifting Force | 1200 kg |
| Operating Speed | 0 – 5.8 km/h |
| Rated Pressure | 17 Mpa |
| Lifting Time | 3.5 s |
| Lowering Time | 2.4 s |
| Tipping Time | 1.5 s |
| Gradeability | 30% |
| Operating Weight | 1440 kg |
| Engine Options | |||
| Parameter | Kubota D1105 | Platinum D403J-11 | Yanmar 3TNV80F |
| Engine Type | Diesel, Water-cooled, 3-cylinder | Diesel, Water-cooled, 3-cylinder | Diesel, Water-cooled, 3-cylinder |
| Output Power | 18.2 kW / 3000 rpm | 18.4 kW / 2800 rpm | 17.8 kW / 3000 rpm |
| Maximum Torque | 70.4 Nm / 2200 rpm | 66.9 Nm / 2100 rpm | 64 Nm / 1900 rpm |
| Engine Oil Capacity | 5.1 L | 4.0 L | 3.4 L |
| Hydraulic System | |
| Component | Brand / Specification |
| Hydraulic Pump | PWG / Bondioli & Pavesi |
| Hydraulic Motor | Danfoss |
| Valve | Danfoss |
| Auxiliary System Pressure | 170 bar |
| Auxiliary System Flow | 43 L/min |
| Capacity | |
| Parameter | Specification |
| Fuel Tank | 29 L |
| Hydraulic Oil Tank | 38 L |
