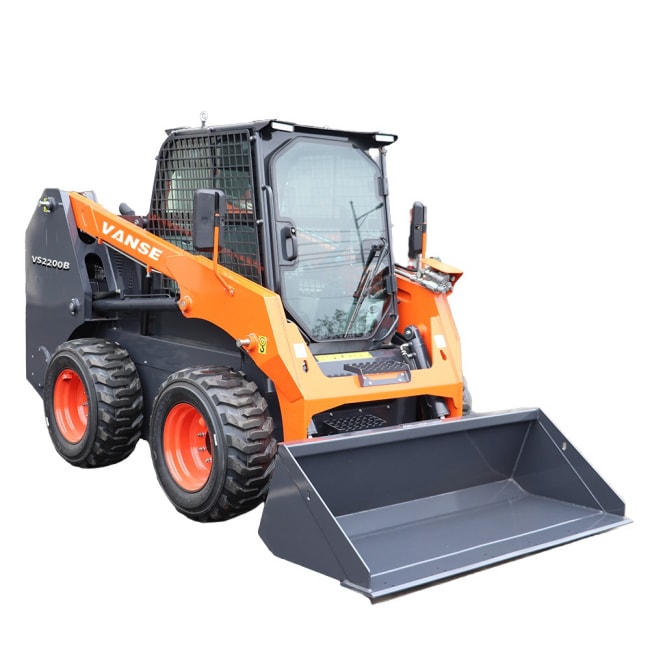

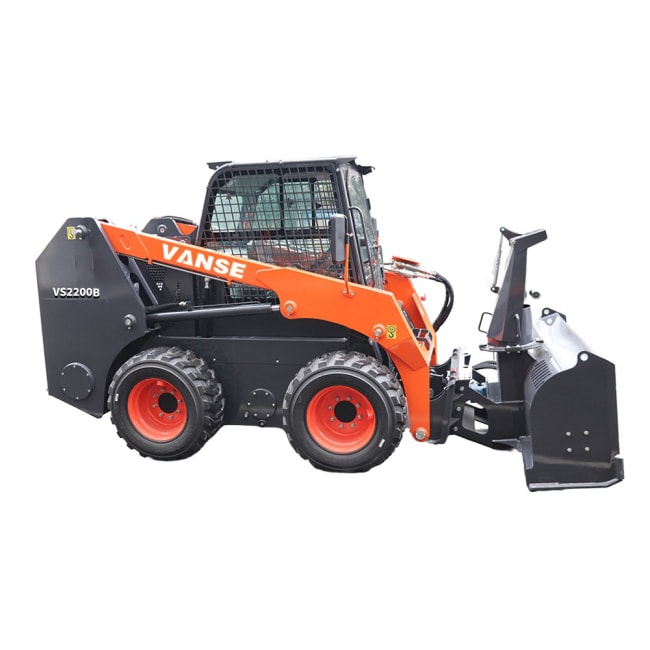

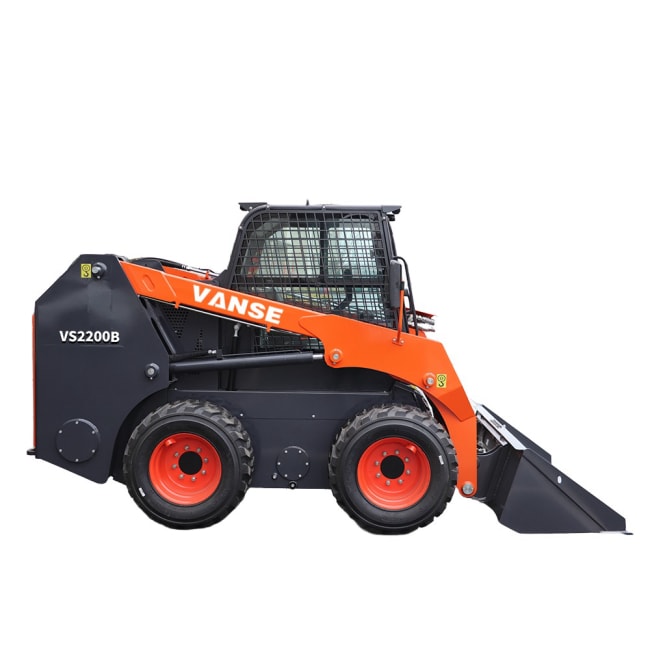

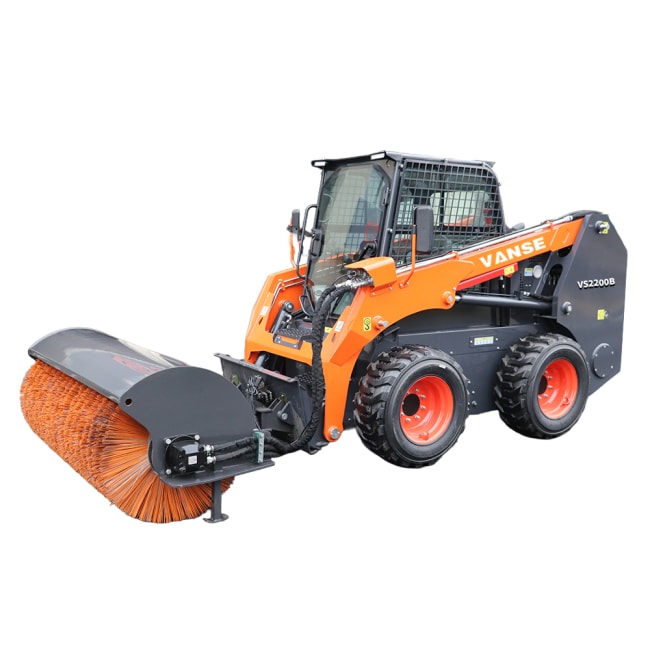

VS2200B Skid Steer Loader
4354mm
Working Height
3200mm
Bottom of Bucket Height
3810mm
Overall Length
40°
Dump Angle
The machine body is constructed from high-strength steel through integral welding, resulting in a robust structure and outstanding load-bearing capacity. Equipped with large-sized wear-resistant tires and a reasonable ground pressure ratio, it can operate efficiently on flat ground as well as adapt to slightly rough terrain.
Share This Product

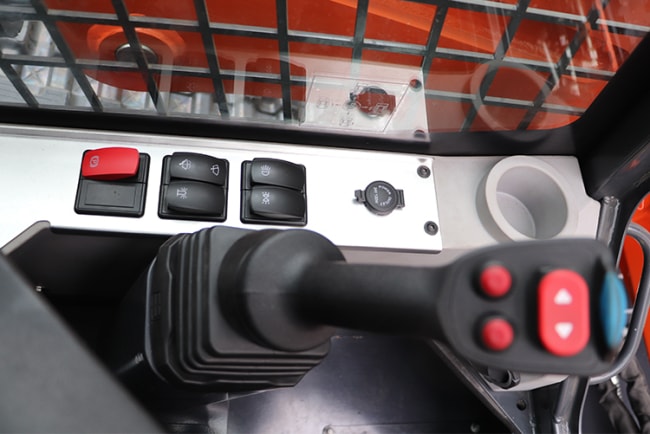

Control System
Multi-button layout allows for precise control of walking, lifting, and tilting movements, providing intuitive and efficient operation.

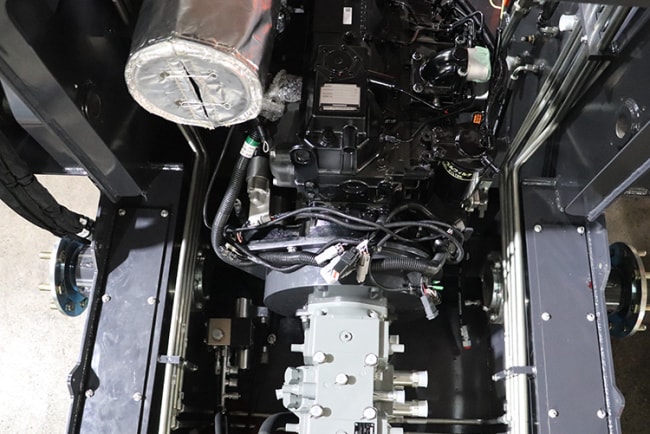

Powertrain
Equipped with a compact diesel engine, featuring a compact layout, neatly arranged piping and wiring harnesses for easy maintenance and repair; the heat-insulating aluminum foil wrapping layer effectively blocks high temperatures, protecting surrounding components.
Walking and Working Devices
Large-size, deep-tread engineering tires offer strong traction, adapting to complex conditions such as mud and gravel.
Large-capacity Standard Bucket
Large-capacity standard bucket made of wear-resistant steel plates offers high loading efficiency and is suitable for handling various materials.

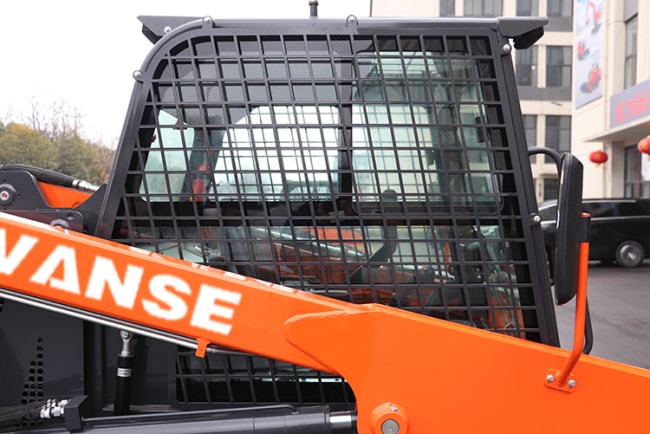

Safety Net Cab
Safety net cab protects against falling objects, ensuring operational safety; provides excellent visibility for observing the work environment.

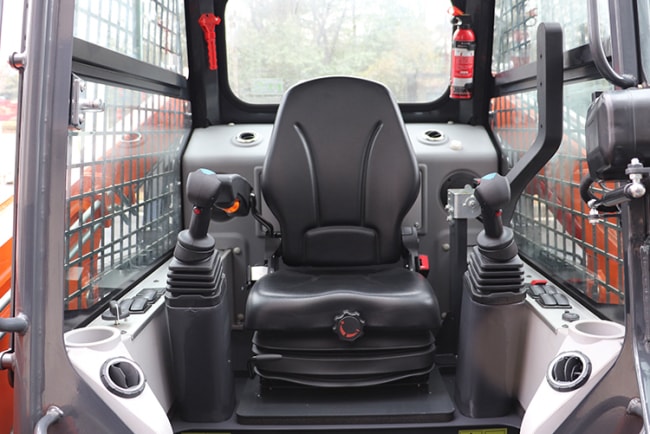

Ergonomic Seat
Ergonomic seat with armrests reduces fatigue during extended work periods; side speakers enhance working comfort.
| VS2200B | |
| Working Height – Full Lift A (mm) | 4354 |
| Bottom of Bucket Height – Full Lift C (mm) | 3200 |
| Overall Length – With Bucket E (mm) | 3810 |
| Dump Angle – Full Lift G(°) | 40 |
| Dump Distance – Full Lift J(mm) | 392 |
| Tilt Angle L(°) | 25 |
| Track Width N(mm) | 1522 |
| Departure Angle Q(°) | 20 |
| Overall Width – Without Bucket S(mm) | 1852 |
| Turning Radius – With Bucket X(mm) | 2310 |
| Turning Radius – Rear Z (mm) | 1850 |
| Hinge Height – Full Lift B (mm) | 3404 |
| Roll Bar Height D (mm) | 2120 |
| Overall Length – Without Bucket F (mm) | 3040 |
| Dump Height – Full Lift H (mm) | 2664 |
| Tilt Angle – Full Lift K (°) | 95 |
| Wheelbase M (mm) | 1283 |
| Ground Clearance P (mm) | 190 |
| Bucket Width R (mm) | 1880 |
| Rear Length W (mm) | 1100 |
| Engine Brand | WEICHAI |
| Power (kW) |
74(China Stage 3) / 74(China Stage 4)
|
| Number of Cylinders | 4 |
| Fuel | Diesel |
| Attachment Hydraulic Flow Rate (L/min) | 85/135 |
| Maximum Supply Pressure for Attachments (MPa) | 21 |
| Fuel Tank Capacity (L) | 104 |
| Hydraulic Oil Tank Capacity (L) | 104 |
| Operating Voltage (V) | DC24 |
| Rated Load (kg) | 1200 |
| Tipping Load (kg) | 2400 |
| Operating Weight (kg) | 3730 |
| Two-Speed Travel Speed (km/h) | 46315 |
| Tire Specifications | 12-16.5 |
| Standard Bucket | 72″ |
| Bucket Width (mm) | 1880 |
| Flat-Loading Bucket Capacity (m³) | 0.44 |
