VS680X Skid Steer Loader
780 kg
Rated Load
0.2 m³
Bucket Capacity
18.2 kW
Engine Power
5.8 km/h
Max Working Speed
Built for medium-to-heavy load tasks, this skid steer loader features a reinforced frame and closed-loop hydraulic system, delivering high digging force and stable operation. Ideal for foundation pit work, mine auxiliary tasks, and large factory area operations, it ensures efficiency and durability under continuous use.
Share This Product

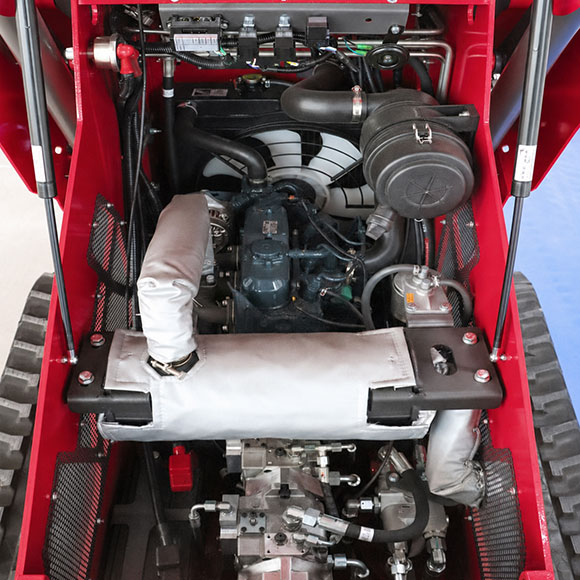

Powertrain
Imported power core, powerful and reliable; double-layer heat insulation design for more stable operation in high temperatures. Stable power output and excellent fuel economy. Key pipelines are wrapped with double-layer heat insulation sleeves to effectively isolate high temperatures; the hydraulic main pump is directly connected to the engine to reduce power loss.

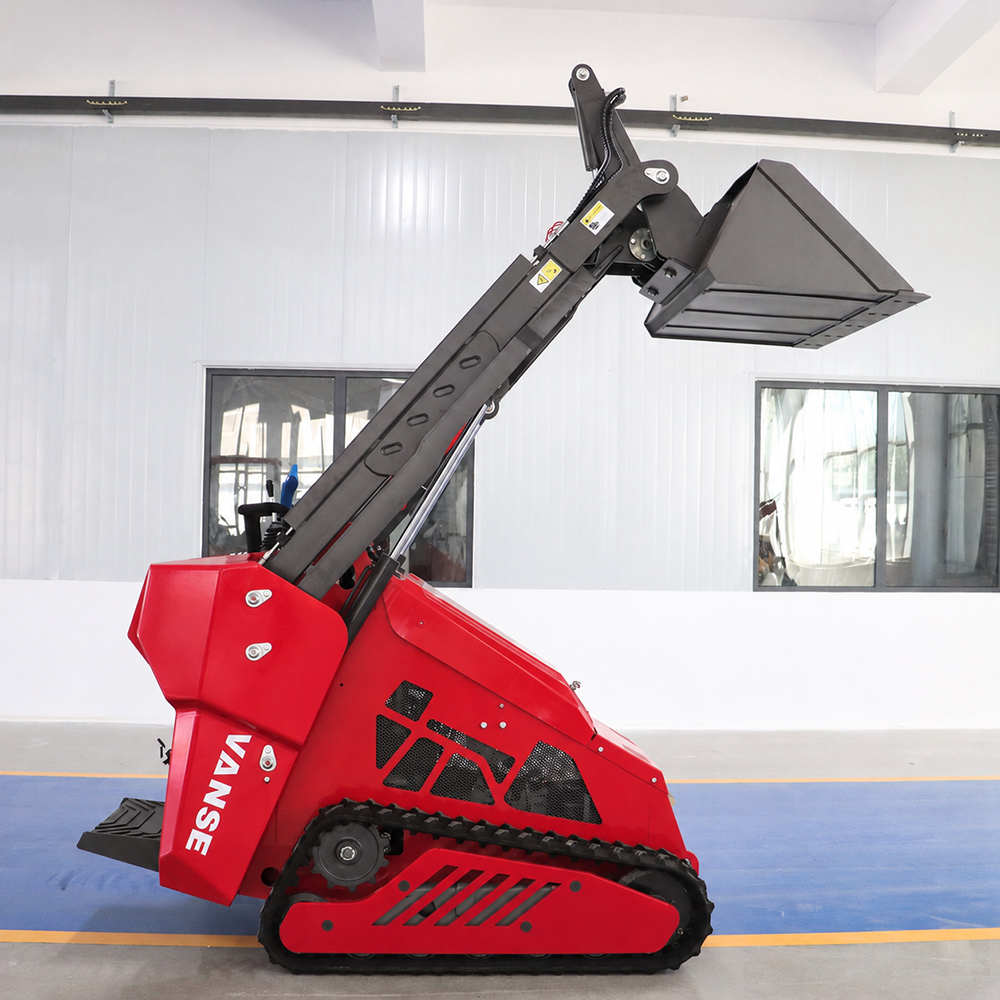

Reinforced Boom
Thickened manganese steel boom, more durable and resistant to bending and torsion; multi-point hydraulic support for smoother lifting. Dual hydraulic cylinders + multi-point linkage design ensures excellent stability even at maximum lifting height.

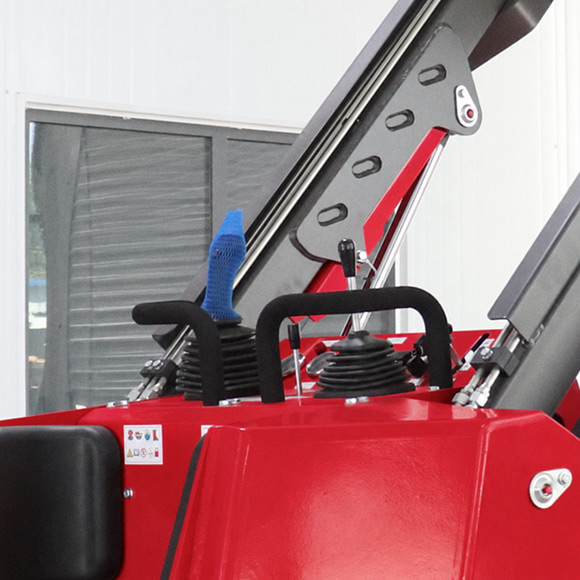

Ergonomic Control Panel
Single handle integrated operation for precise control and fatigue-free operation; anti-slip grip + travel limiter for safer operation and reduced hand fatigue during long periods of work, improving work comfort.
Quick-Change Hydraulic Interface
Universal quick-change interface, compatible with mainstream attachments. Allows quick switching between various attachments such as buckets, breakers, and sweepers, significantly improving efficiency in various operating scenarios. The dust cap at the interface effectively protects the connector from mud and sand erosion, extending its service life.
VS680X skid steer loader is positioned for medium and heavy-load operations. Adopting military-grade reinforced body and closed-loop hydraulic system, its digging force and load capacity are at the leading level in the same tonnage. Suitable for high-intensity scenarios such as mine auxiliary, foundation pit excavation and large factory area operations, it has excellent impact resistance and continuous operation capacity, ensuring efficient project progress.
| Engine Details (Kubota) | |
| Parameter | Specification |
| Engine Brand | Kubota |
| Engine Model | D1105 |
| Engine Type | Diesel engine, water-cooled, three-cylinders |
| Output Power | 18.2 kW / 3000 rpm |
| Fuel Consumption | ≤ 5.1 L/h |
| Starting Method | Electric start |
| Fuel Tank Capacity | 35 L |
| Engine Oil Capacity | 5.9 L |
| Hydraulic Oil Tank Capacity | 25 L |
| Performance Parameters | |
| Parameter | Specification |
| Rated Load | 780 kg / 1720 lb |
| Bucket Volume | 0.2 m³ |
| Working Speed | 0 – 5.8 km/h |
| Rated Pressure | 17 MPa |
| Lifting Time | 4.1 s |
| Descent Time | 2.4 s |
| Dumping Time | 1.5 s |
| Climbing Ability | 30% |
| Work Weight | 1440 kg / 3175 lb |
| Overall Dimensions | 2880 * 1235 * 1510 mm |
