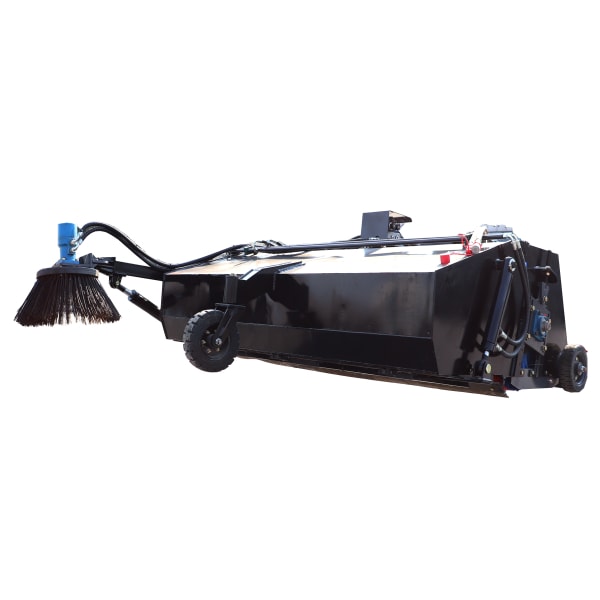

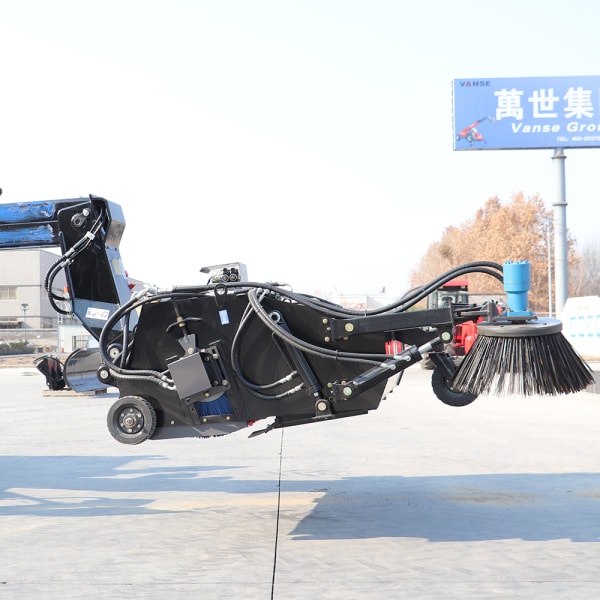

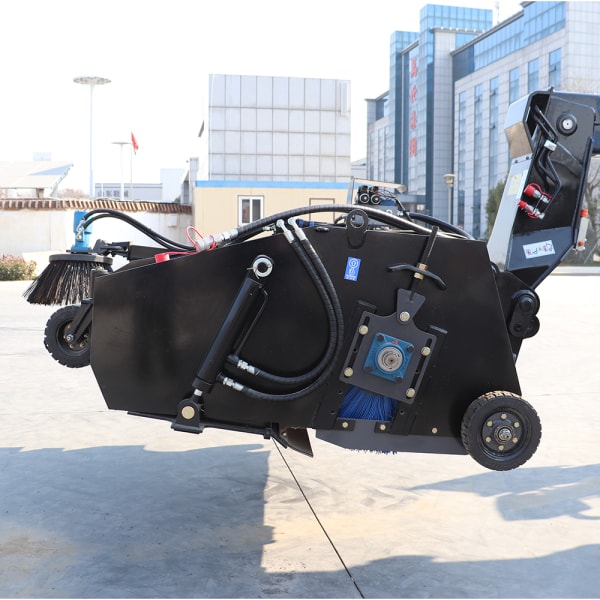

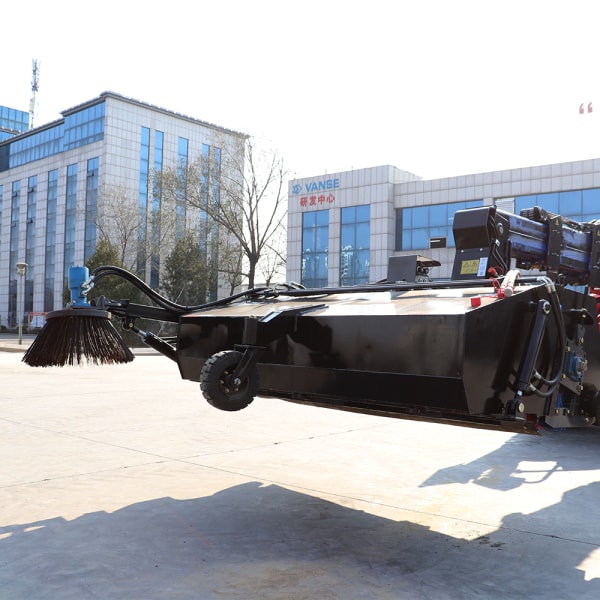

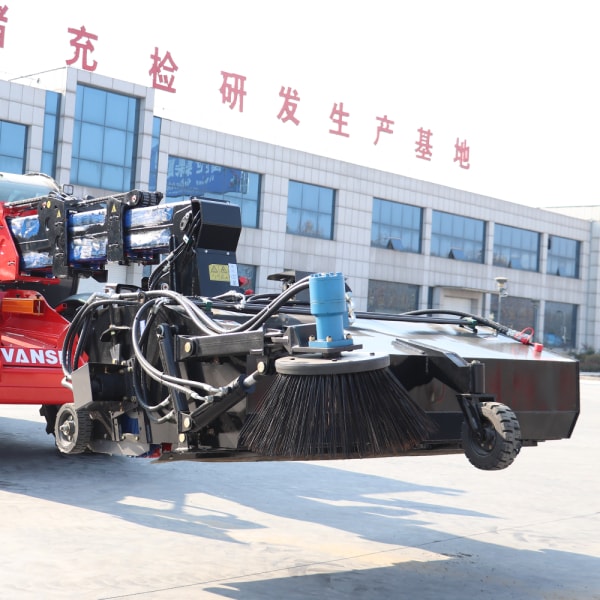

Forward-moving Sweeper

Attachments

850 kg

Weight

2543 * 1810 * 1100 mm

Dimensions

2200 mm

Sweeping Width

0.80 Cubic Meters

Hopper Capacity

Integrated with a front roller brush and collection box, it sweeps and collects road garbage, gravel, and fallen leaves simultaneously. With high cleaning efficiency, it is suitable for daily maintenance in factories and industrial parks.

Share This Product

A forward-moving sweeping design equipped with a high-efficiency sweeping brush and dust collection device, quickly removing sand, debris, fallen leaves, and other debris from roads. Adjustable sweeping width and large dust collection box capacity reduce the frequency of emptying, keeping the site clean.

Application Scenarios: Ground cleaning in factory roads, logistics parks, construction sites, municipal roads, and airport aprons, reducing labor cleaning costs and improving operational efficiency.

Weight	850 kg
Dimensions	2543 * 1810 * 1100 mm
Sweeping Width	2200 mm
Hopper Capacity	0.80 cubic meters
Working Pressure	16-18 MPa
Brush Diameter	660-205 mm (steel wire-nylon mixed bristles)
Hydraulic Motor Brand	Leco
Displacement	245 ml/rpm
Unloading Method	Hydraulic unloading

Shandong VANSE Group is a national high-tech enterprise integrating R&D, manufacturing, sales, and after-sales service. We are an OEM/ODM manufacturer. We hold over 50 invention patents and over 200 patents, and our products are sold to more than 80 countries and regions worldwide.

We specialize in the research and development and manufacturing of construction machinery such as telehandlers, mini excavators, and skid steer loaders, and can also provide a variety of attachments.

We provide 24/7 remote real-time video troubleshooting guidance.

We offer 24/7 troubleshooting response service, supporting multiple channels including telephone, WhatsApp, Facebook, YouTube, and WeChat. We ensure that parts covered under warranty within 48 hours can be shipped free of charge via DHL or International Air Freight. We provide clear and efficient troubleshooting guidance through video recording and sharing.

Payment methods: Wire transfer (TT) and X Transfer (50% deposit required before production, with the remaining 50% due before shipment).

Generally, if the product is in stock, we will arrange shipment within 7 days after receiving payment. However, if the product is out of stock or the order volume is large, the production cycle may be extended to 25-35 days.

We have a strong R&D team, as well as professional quality assurance (QA) and quality control (QC) teams. Our products have obtained EPA, CE, ISO9001, ISO14001, ISO45001, and other quality certifications.
