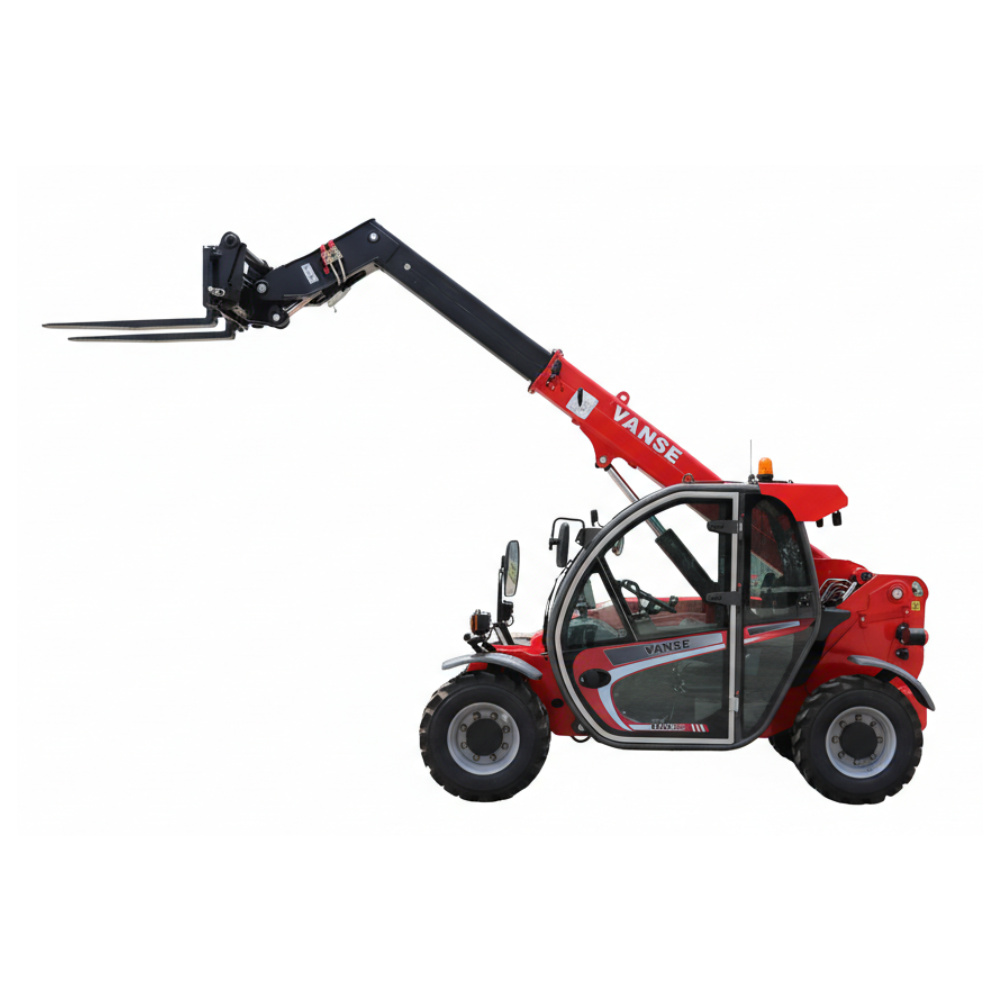

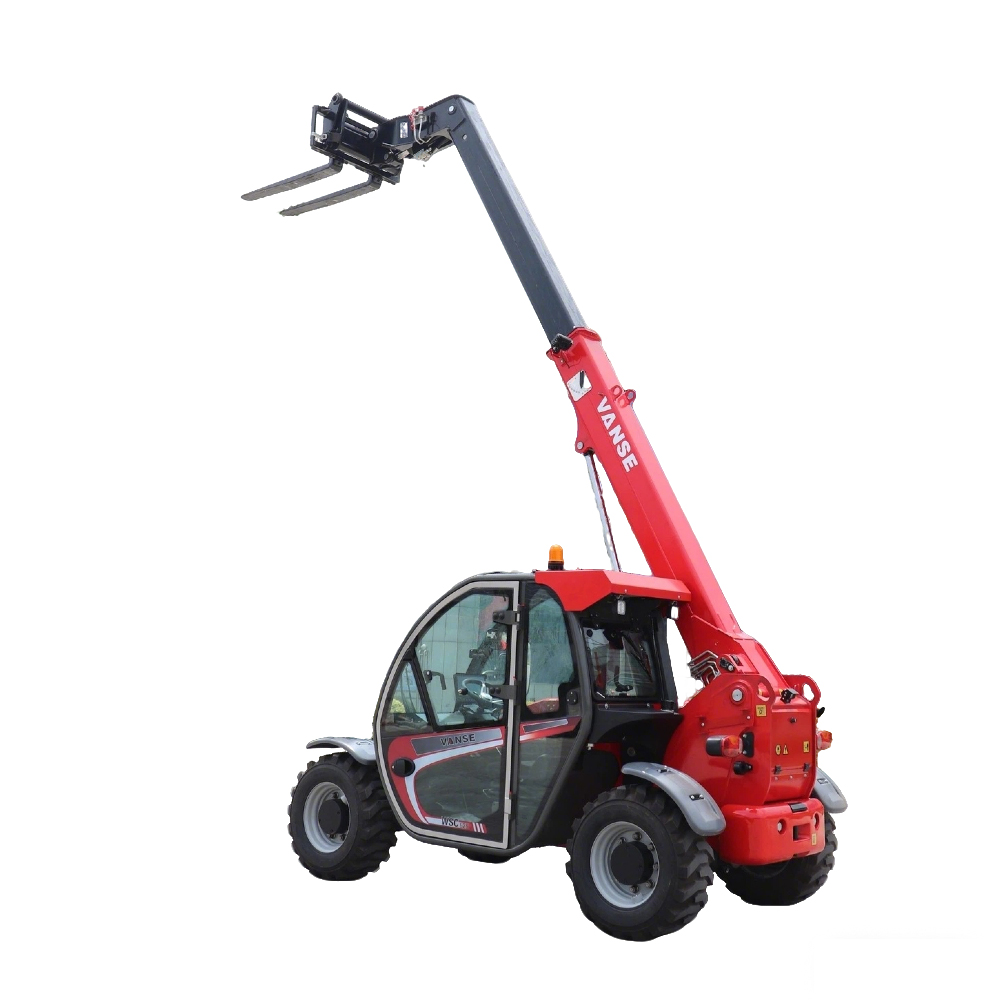

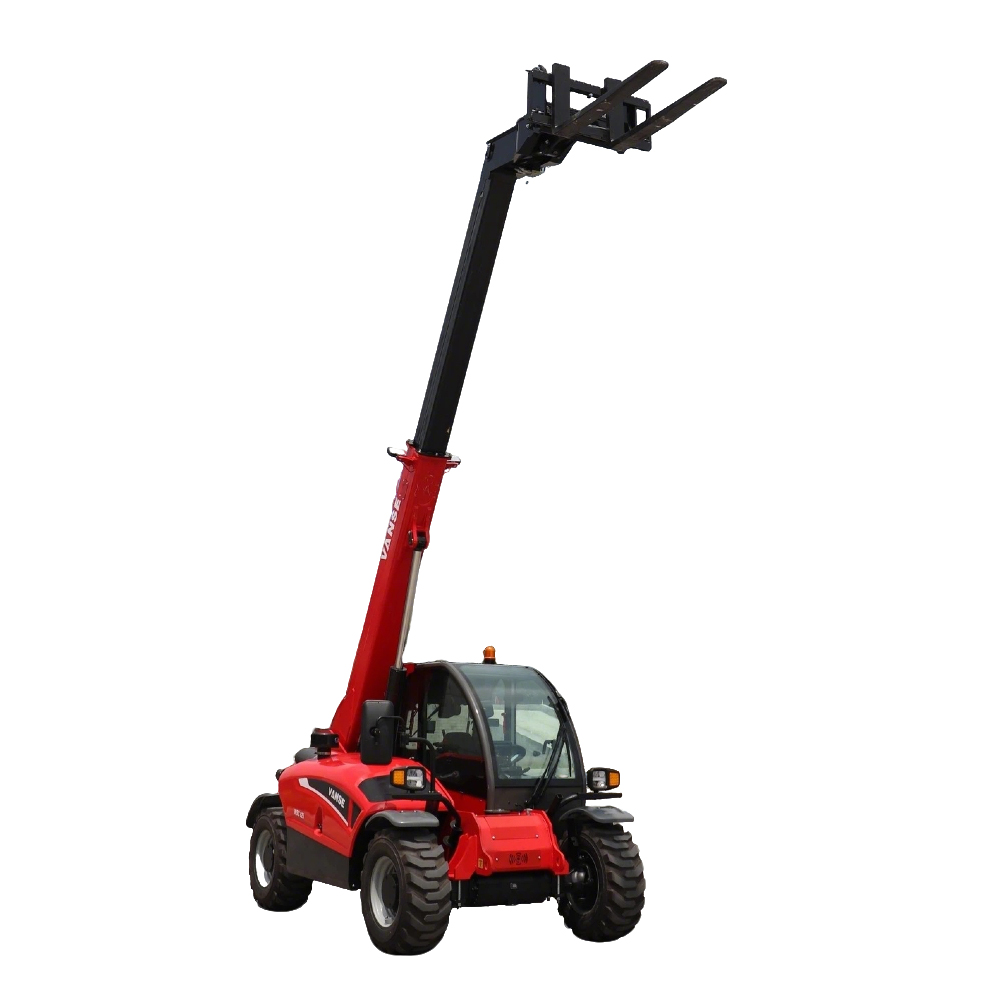

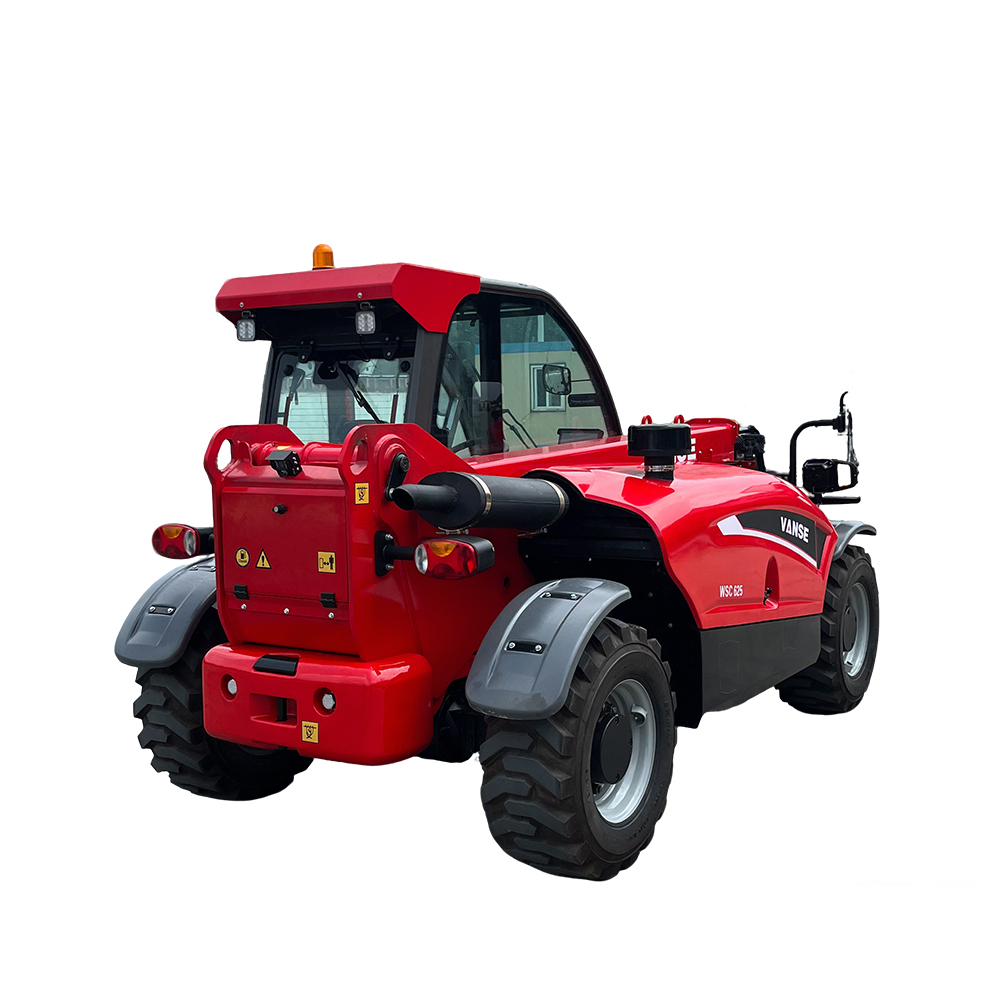

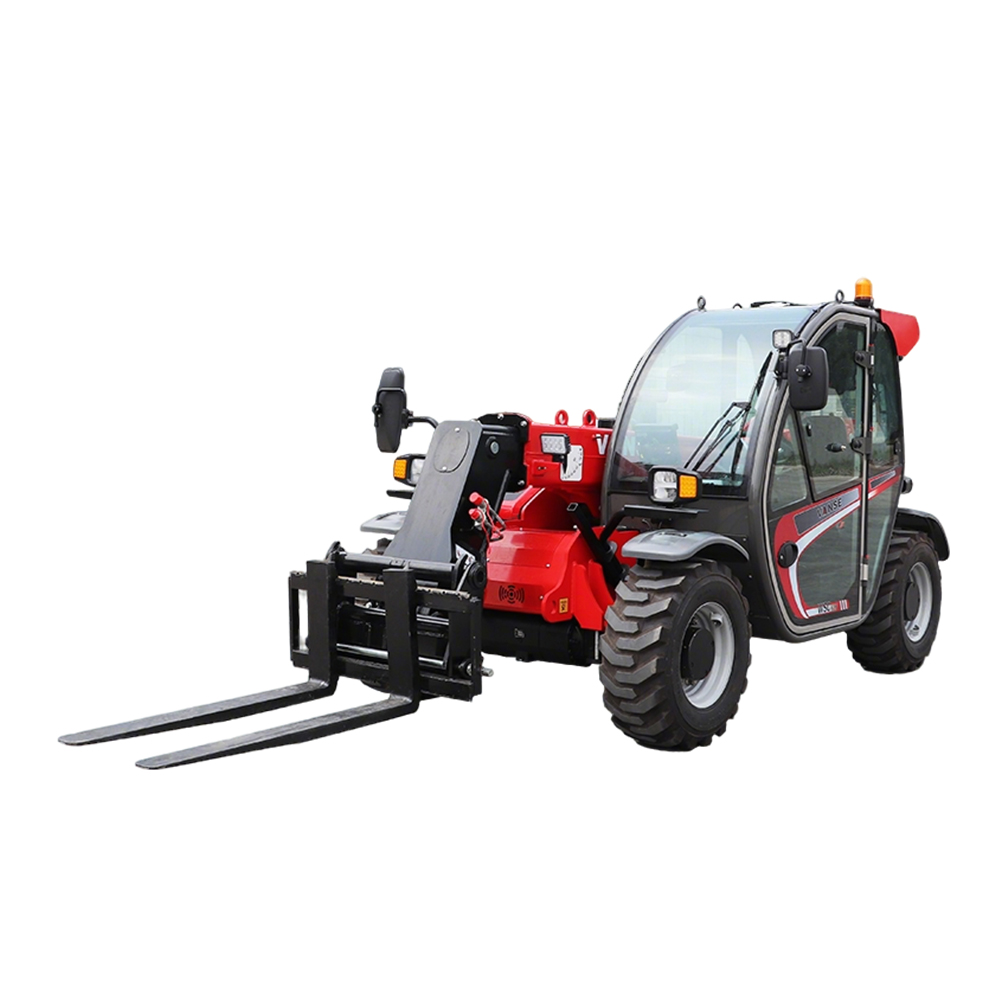

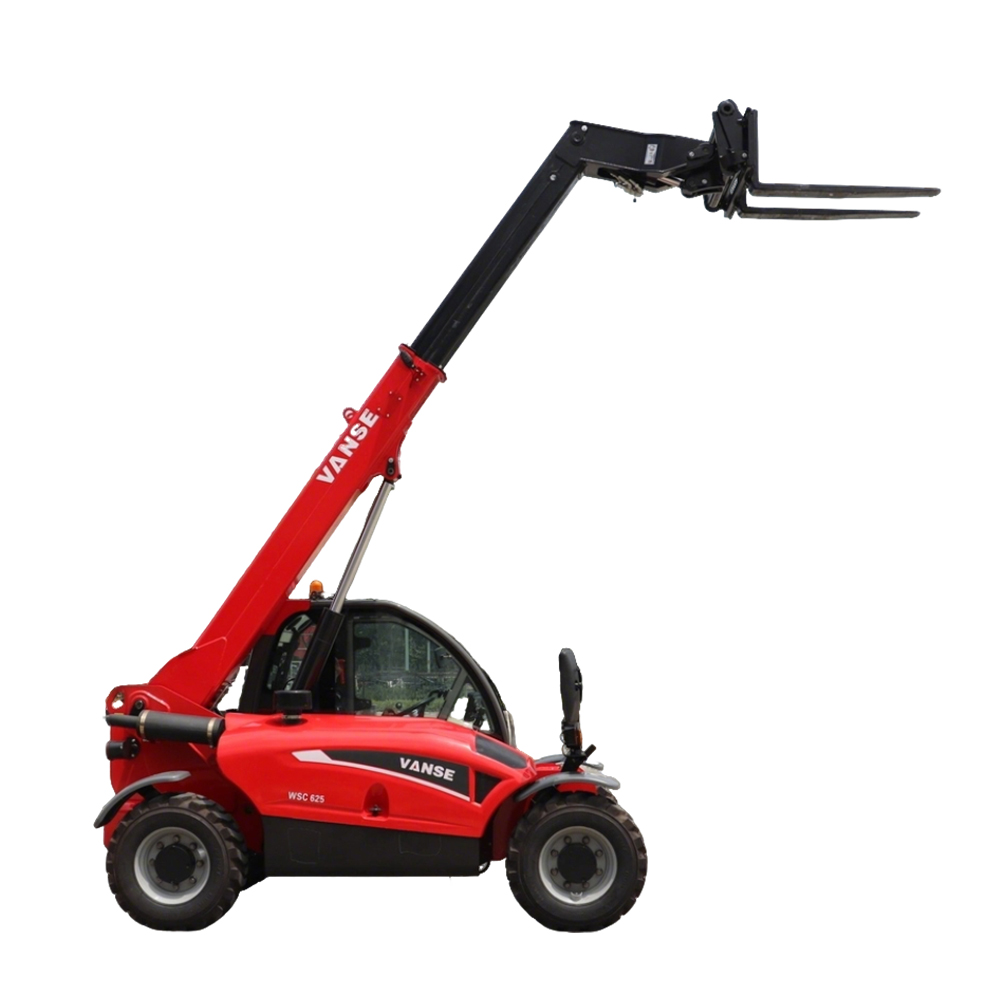

VANSE 625 6m Telehandler | 2.5-Ton Capacity | EPA & CE Certified
5,95 m/19,52 ft
Altezza massima di sollevamento
2.500 kg
Capacità di carico nominale
55,4 kW
Potenza massima motore
4WD
Sistema di trazione
“VANSE 625 — 6m Heavy-Duty Telehandler engineered for high-rise construction, mining, and port operations. 2.5-ton rated capacity with triple safety protection.”
Condividi questo prodotto

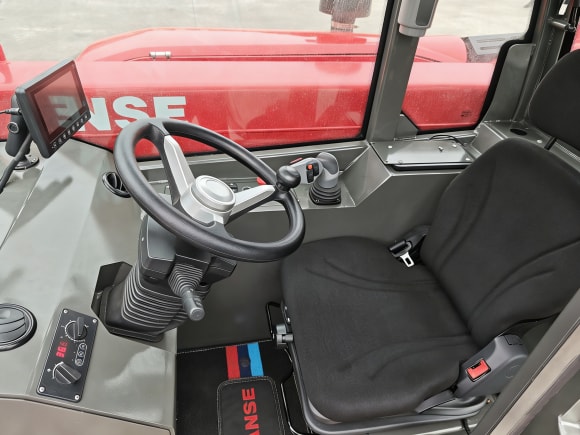

Cabina Confortevole
How it works: This streamlined biomimetic panoramic cab uses large tempered safety glass to remove visual blind spots. Thickened rubber seals block noise and dust, while the ergonomic seat further elevates riding comfort.
Spec & Standard: Biomimetic streamlined structure, full-view tempered safety glass, full-circle thick rubber sealing, ergonomic seating configuration.
Buyer Benefit: Eliminates 95% of visual blind spots; cuts interior noise by 25% and dust ingress by 30%; reduces operator fatigue by 28% during long working hours.

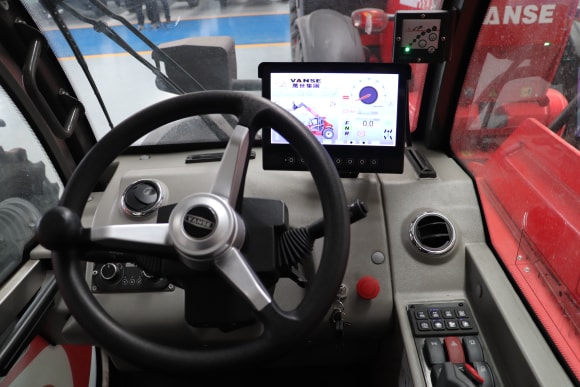

Volante e Pannello di Controllo
How it works: Features an ergonomic hand-fit steering wheel and neatly arranged right-side integrated control panel. The high-definition intelligent display supports real-time equipment fault diagnosis and parameter adjustment, simplifying daily operation and machine inspection.
Spec & Standard: Human-body ergonomic steering wheel design, HD intelligent monitoring display, centralized integrated button layout.
Buyer Benefit: Lowers operation learning difficulty by 35%; reduces equipment troubleshooting time by 30%; cuts manual operating errors and boosts overall work efficiency by 22%.

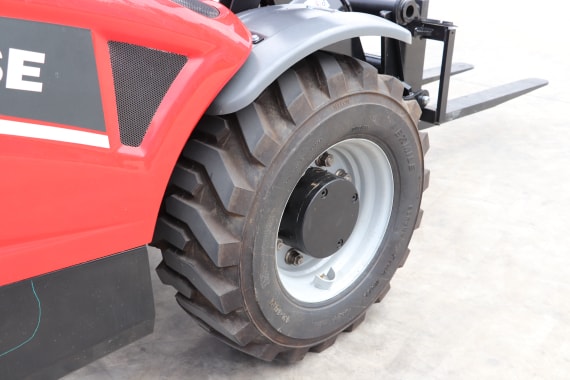

Gruppo Ruote
How it works: Adopts heavy-duty engineering tires with deep tread patterns to deliver powerful ground traction, effectively preventing slipping and stalling on muddy, gravel and other complex terrain. Thickened reinforced rims strengthen load-bearing performance, while curved joint mudguards isolate sediment and debris to protect vehicle paint and core structural parts.
Spec & Standard: Deep-tread anti-skid engineering tires, thickened load-bearing wheel rims, integrated curved anti-splash mudguard structure.
Buyer Benefit: Improves complex terrain passability by 26%; enhances overall load stability by 22%; reduces body paint and core component wear by 25%, lowering long-term maintenance costs.

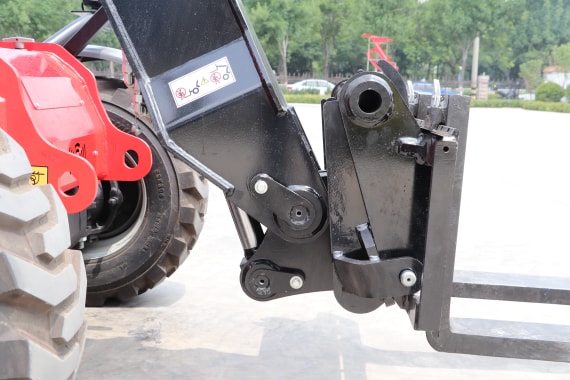

Braccio Telescopico e Carrello Portapallet
How it works: The mini telescopic boom is coated with heavy-duty anti-corrosion material to resist rust and structural deformation. The fork carriage adopts integral one-piece welding for high structural rigidity, while thickened alloy steel fork teeth deliver strong bending resistance. Universal standard interfaces support fast replacement of various attachments for diverse heavy-duty handling work.
Spec & Standard: Heavy-duty anti-corrosion boom coating, integral one-piece welding carriage structure, thickened high-strength alloy steel fork teeth, universal quick-change attachment interfaces.
Buyer Benefit: Improves rust and deformation resistance by 30%; enhances overall structural durability by 28%; cuts attachment replacement time by 35% and stably supports long-term high-load material handling operations.

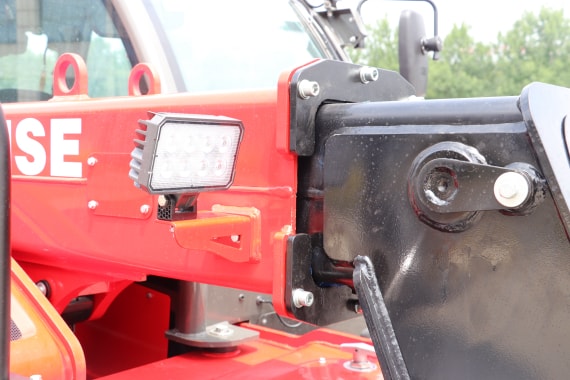

Illuminazione e Componenti Carrozzeria
How it works: Fitted with high-brightness LED work lights featuring excellent waterproof and dustproof performance, delivering clear vision for night, tunnel and indoor low-light operations. The whole machine body adopts electrophoresis and powder coating dual process, effectively resisting UV radiation and acid-base corrosion to prevent paint fading and peeling during long-term outdoor use.
Spec & Standard: High-brightness waterproof and dustproof LED lights, dual electrophoresis & powder coating body paint process, UV and acid-alkali corrosion resistant structure.
Buyer Benefit: Improves low-light operation visibility by 33%; extends body paint service life by 30%; reduces outdoor aging, fading and peeling failures, lowering long-term vehicle maintenance costs.

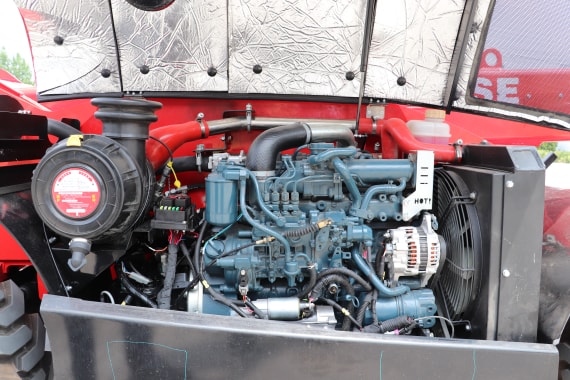

Sistema di Trasmissione Principale
How it works: Adopts a high-power engine with a compact and optimized cylinder layout and standardized tidy piping arrangement. The engine compartment is fitted with an aluminum foil heat insulation layer to isolate high-temperature heat conduction. Equipped with a large-diameter high-efficiency air filter system to adapt to dusty and high-impurity engineering working conditions. The integrated cooling system matched with a large-size cooling fan sustains stable and efficient continuous operation.
Spec & Standard: High-power optimized layout engine, aluminum foil thermal insulation structure, large-diameter multi-effect filtration system, integrated high-efficiency circulating cooling system.
Buyer Benefit: Blocks 28% of operational high-temperature heat transfer; reduces dust-induced engine failures by 32%; improves continuous working stability by 25% and effectively extends powertrain service life.
| Dimensioni | ||
| Parametri | Valore | |
| Lunghezza complessiva | 3923 mm/12.87 ft | |
| Larghezza Complessiva | 1835 mm/6.02 ft | |
| Altezza complessiva | 2140 mm /7.02 ft | |
| Interasse | 2300 mm/7.55 ft | |
| Sbalzo Minimo da Terra | 348 mm/13.70 inch | |
| Pneumatico | 12-16.5 | |
| Prestazioni | ||
| Carico nominale | 2500 KG/5512 Ib | |
| Peso Macchina | 4900 KG/10803 Ib | |
| Altezza massima di sollevamento | 5,95 m/19,52 ft | |
| Portata massima | 3.4m/11.15 ft | |
| Minimum Turning Radius | 3100 mm/10.17 ft | |
| Maximum Horizontal Lifting Capacity | 800 kg/1764 lb | |
| Capacità serbatoio diesel | 65 L/17.17 US gal | |
| Volume olio idraulico | 95 L/ 25.10 US gal | |
| Modalità di trazione | 4WD | |
| Velocità massima di viaggio | 27km/h/16.78 mph | |
| Tempo di estensione del braccio telescopico | 7s | |
| Tempo di ritrazione del braccio telescopico | 4.5s | |
| Tempo di sollevamento del braccio principale | 8 s | |
| Tempo di abbassamento del braccio principale | 6.5s | |
| Compliance markings | CE / EPA Tier 4 Final / EAC / AS | |
| Motore | |
| Marca motore | Kubota |
| Modello Motore | Kubota V3307 |
| Potenza massima | 55.4kw(74.3 hp)/ 52.6kw(71.5 hp)2600rpm |
| Configurazione principale | |
| Assali | Carraro |
| Cambio | Carraro |
| Closed Travel Pump | Danfoss |
| Travel Motor | Danfoss |
Categoria prodotti
Applicazioni Reali, Prestazioni Provate
Le macchine Vanse eccellono in ambienti di costruzione diversi in tutto il mondo. Scopri come le nostre macchine offrono prestazioni affidabili attraverso industrie, paesi e condizioni difficili dei cantieri.
Forza riconosciuta. Qualità certificata.
Product Comparison Table
Global & Overseas Warehouses
Our products have a wide range of industry applications
Costruzioni
🏗️ Construction
Urban high-rise building sites, modular housing, renovation projects: concrete blocks, precast slabs, scaffolding components, rebar bundles. Lifting palletized goods to mid-level floors and loading/unloading trucks. Compact design allows for efficient operation even in confined spaces.
Mining & Quarry
Open-pit yards, processing plants, bulk material zones Heavy stone blocks, aggregates, mining equipment parts Cross-terrain transport, haul truck loading, feeding processing lines Heavy-duty chassis + deep-tread tires + reinforced forks provide stability on rough, uneven ground.
Ports & Logistics
Container terminals, distribution yards,intermodal hubs Palletized cargo, containerized goods, machinery parts Cargo transfer, container loading/unloading, yard stacking High maneuverability + precise hydraulic control keeps operations efficient in busy port environments.
Industrial Plants
Manufacturing facilities, steel yards, warehouse storage zones Steel coils, heavy components, raw material pallets Moving parts to production lines, finished goods loading, bulk storage management Robust build + ergonomic controls + multi-attachment compatibility make it a true multi-purpose workhorse.
